Truss & Pipes 25-30cm Black

F31 B

F32 B

F33 B

F34 B

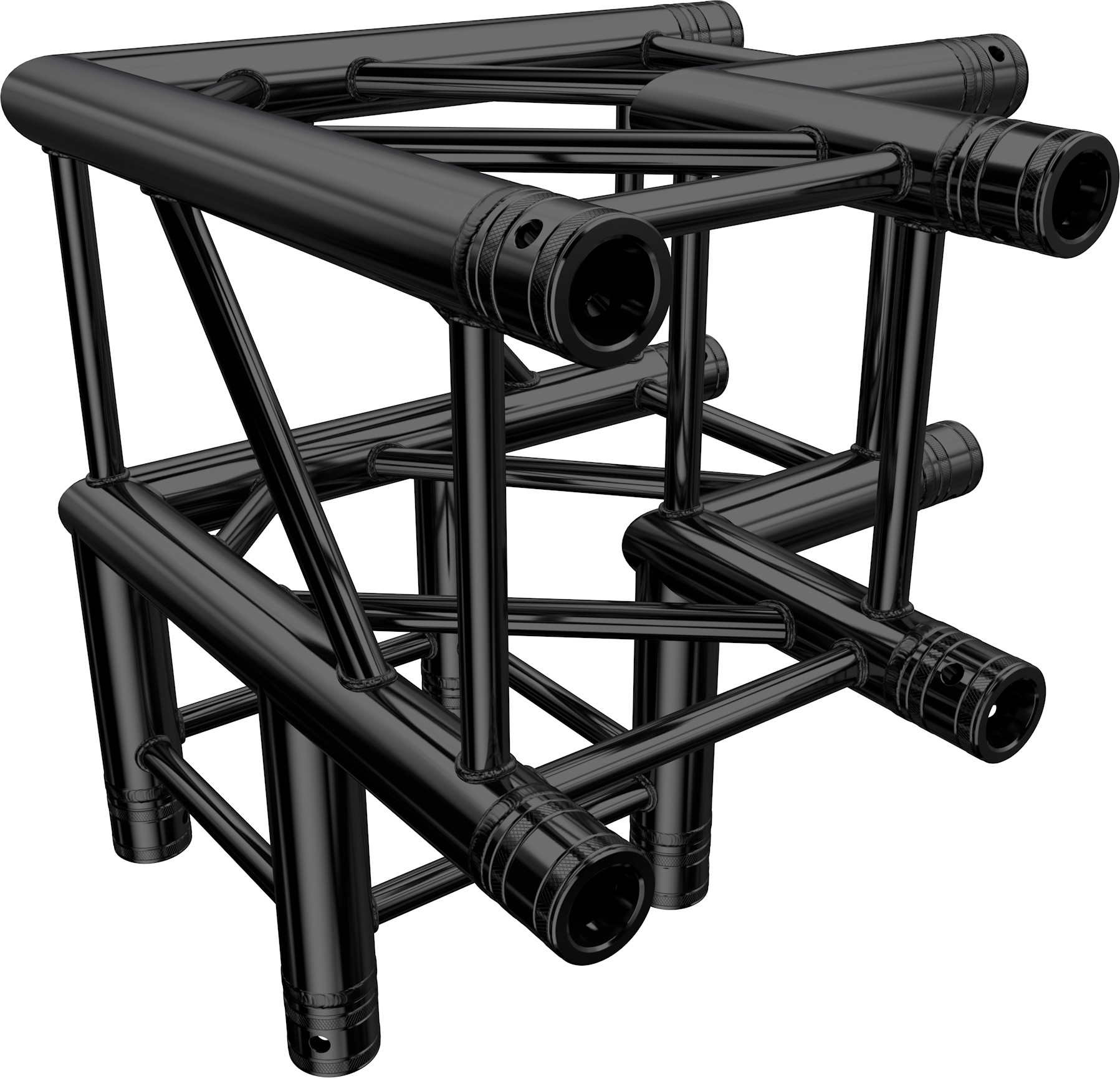

Global Truss F34 3-way corner T35 stage black

Manufacturer: Global Truss

The F34 3-way corner from Global Truss offers optimum load-bearing capacity and is characterised by its low transport volume and lightweight construction. It is also compatible with the Eurotruss FD34 truss system. The 4-point truss is available powder-coated with a corresponding delivery time. The main areas of application for the F34 truss are event technology, trade fair construction and shop fitting.

€408.37*

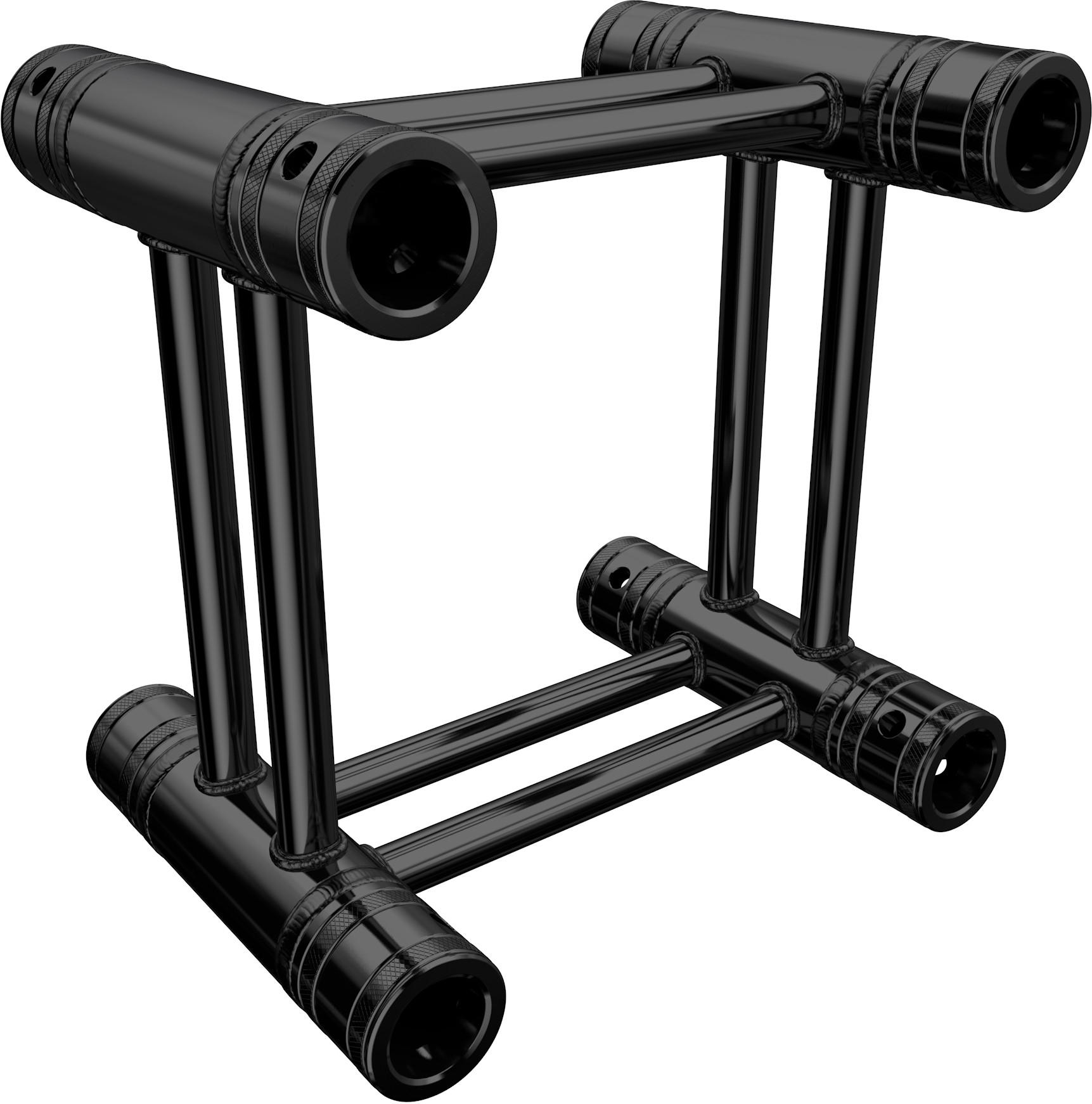

Global Truss F34 Box Cornerblock stage black

Manufacturer: Global Truss

The F34 lifting beam offers optimum load capacity and is characterised by its low transport volume and lightweight construction. This truss is available powder-coated or in a high-gloss (hand-polished) finish with a corresponding delivery time. The main areas of application for the F34 truss are event technology, trade fair construction and shop fitting.

€387.03*

Global Truss base plate 99x33cm black for F24/F31-F34/telescope system

Manufacturer: Global Truss

The extremely robust steel base plate offers a wide range of applications. It can be used with half cones for traverse types F24 and F31-F34 and the telescopic system. Thanks to the precisely positioned holes, the base plate allows the user to flexibly utilise their preferred system. The user can also flexibly position the truss on the plate - in the centre or on the two outer sides of the plate.Its rectangular shape also makes it easy to add additional weight to the plate, which provides even more stability. With a dead weight of 19.32 kg, the base plate ensures maximum stability, especially when mounting a traverse vertically. This ensures maximum flexibility and safety.

€144.53*

Global Truss F34 TOP RING 100 stage black

Manufacturer: Global Truss

This top part in black with a diameter of 100cm serves as an attachment for an F34 tower, to which lighting fixtures can be attached. It is used as a design element at trade fair stands and information events.

€299.73*

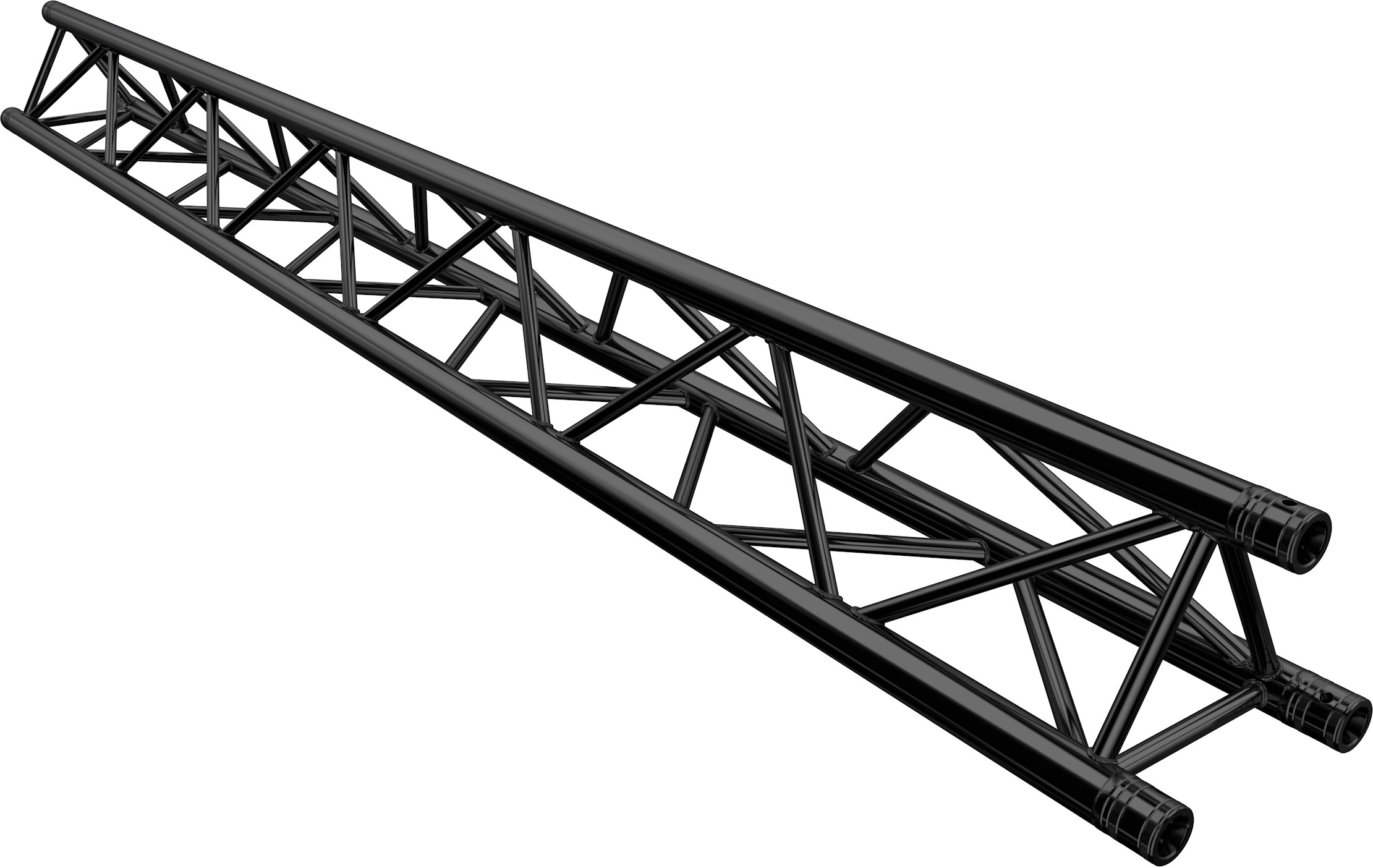

Global Truss F33 150cm stage black

Manufacturer: Global Truss

The F33 truss system from Global Truss is a TÜV-certified 3-point system with an external dimension of 29cm. Due to its shape, it offers the best ratio of transport volume to load capacity within the F3x series. The trusses in the F33 series are ideal for realising exhibition stands and banner frames. They are also popular for permanent installations. This system is designed for a span of up to 18 metres. The F33 truss is made of 50x2mm chord tubes and 20x2mm diagonal bracings made of aluminium. The trusses are connected with conical connectors, which are included in the scope of delivery. Like all Global Truss trusses, this one can also be powder-coated in any colour.

€193.03*

Global Truss F32 300cm stage black

Manufacturer: Global Truss

The F32 truss system from Global Truss is a TÜV-certified 2-point system with an external dimension of 29cm. This system is ideal for realising composite constructions as a grid ceiling for exhibition stands and permanent installations. Small cantilevers and cross-sections with low loads are also possible. Spans of up to 10 metres are possible in the grid system. The F32 truss is made of 50x2mm chord tubes and 20x2mm diagonal bracings made of aluminium. The trusses are connected with conical connectors, which are included in the scope of delivery. Like all Global Truss trusses, this one can also be powder-coated in any colour.

€200.79*

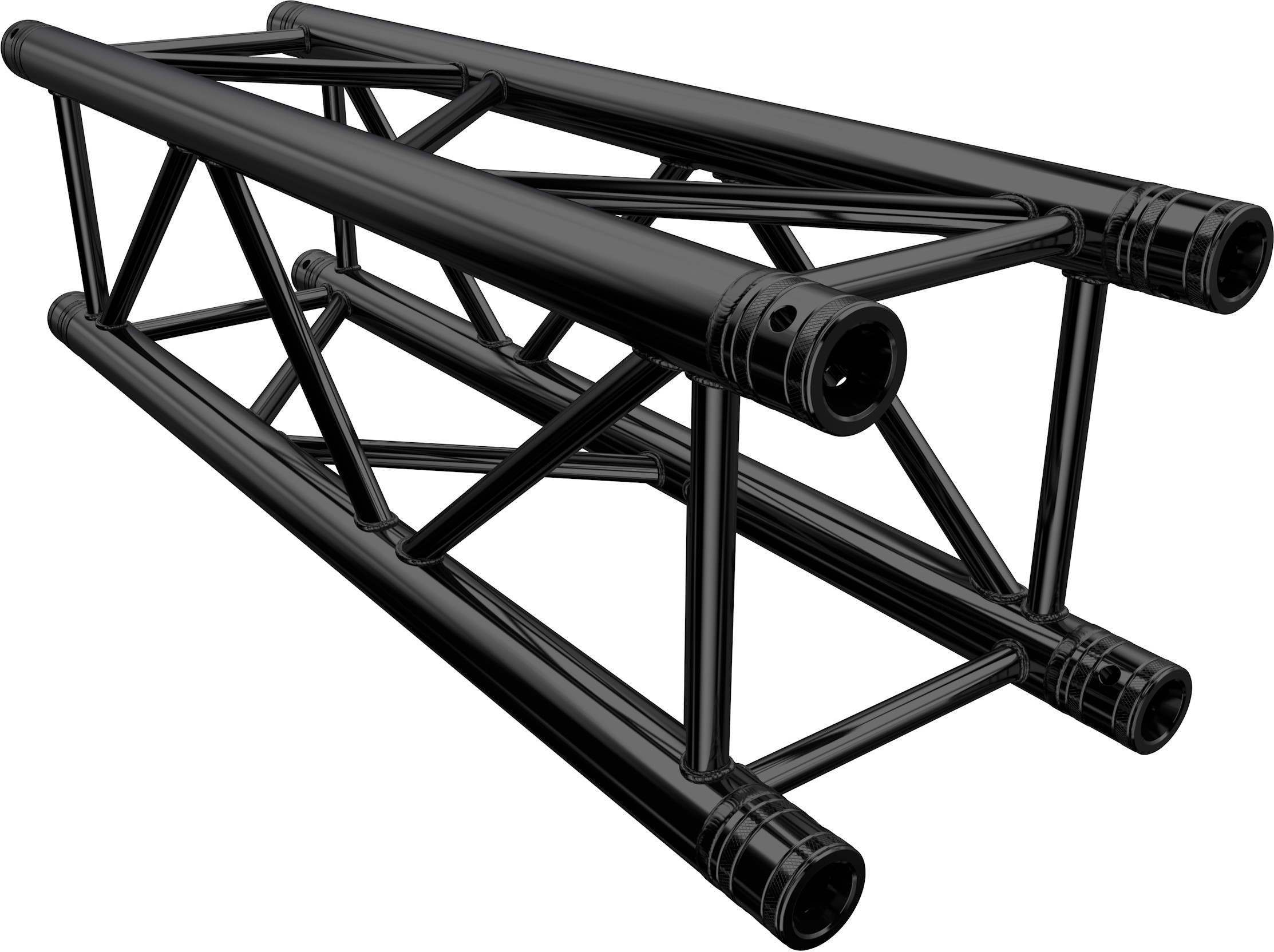

Global Truss F34 150cm stage black

Manufacturer: Global Truss

The F34 truss system from Global Truss is a TÜV-certified 4-point system with an external dimension of 29 cm. Due to its ideal load capacity in relation to its own weight and external dimensions, this truss is one of the most popular systems on the market. The trusses in this series are suitable for trade fair and shop construction, as well as trusses for stage roofs and other outdoor applications. This truss system is designed for a span of up to 18 metres. The F34 truss is manufactured with 50x2mm chord tubes and 20x2mm diagonal bracings made of aluminium. The trusses are connected using conical connectors, which are included in the scope of delivery. Like all Global Truss trusses, this truss can also be powder-coated in any colour.

€286.15*

Global Truss F34 Top plate black

Manufacturer: Global Truss

The F34 BASE ML is a special base plate for F34/F34P trusses, but is mainly used as the end piece of a truss pole. With the help of the existing milled grooves, all standard moving lights can be attached directly to the base plate and thus to the end of the truss. The F34 Base ML is extremely safe, practical, saves time and opens up new possibilities for the user.

€119.31*

Global Truss F33 100cm stage black

Manufacturer: Global Truss

The F33 truss system from Global Truss is a TÜV-certified 3-point system with an external dimension of 29cm. Due to its shape, it offers the best ratio of transport volume to load capacity within the F3x series. The trusses in the F33 series are ideal for realising exhibition stands and banner frames. They are also popular for permanent installations. This system is designed for a span of up to 18 metres. The F33 truss is made of 50x2mm chord tubes and 20x2mm diagonal bracings made of aluminium. The trusses are connected with conical connectors, which are included in the scope of delivery. Like all Global Truss trusses, this one can also be powder-coated in any colour.

€163.93*

Global Truss F32 150cm stage black

Manufacturer: Global Truss

The F32 truss system from Global Truss is a TÜV-certified 2-point system with an external dimension of 29cm. This system is ideal for realising composite constructions as a grid ceiling for exhibition stands and permanent installations. Small cantilevers and cross-sections with low loads are also possible. Spans of up to 10 metres are possible in the grid system. The F32 truss is made of 50x2mm chord tubes and 20x2mm diagonal bracings made of aluminium. The trusses are connected with conical connectors, which are included in the scope of delivery. Like all Global Truss trusses, this one can also be powder-coated in any colour.

€152.29*
