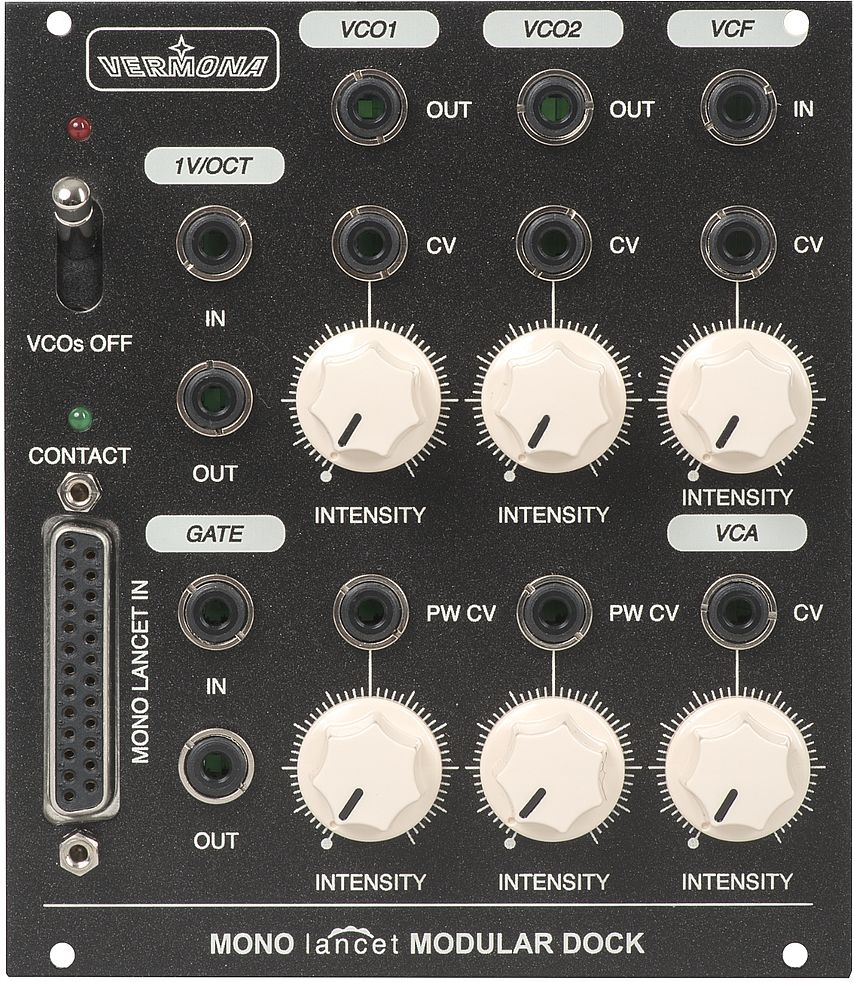

Vermona Mono Lancet Modular Dock
€175.00*
Prices incl. VAT plus shipping costs

Weitere Informationen finden sie hier.
Delivery in 3-6 days
Extension for the Mono Lancet for connection to a modular system:
Dimensions: 3 U (Eurorack), 22 HP (sub-units)
Width: 22 HP / HP
Depth: 25 mm
incl. Sub-D connection cable and mounting screws
Inputs:
FM VCO1
PWM VCO1
FM VCO2
PWM VCO2
VCF IN
FM VCF
CV IN VCA
1V/octave CV VCO1 & VCO2
GATE (VCO1 & VCO2)
MONO LANCET IN (CONTACT)
Outputs:
VCO1
VCO2
1V octave (MIDI-to-CV)
GATE
Mono Lancet 15 is a compact and versatile instrument with high-quality analogue oscillators and an elegant low-pass filter. Wouldn't it be nice if you could integrate these great components into your Eurorack modular system?
This is exactly where the Modular Dock comes in. It connects numerous inputs and outputs of VCOs, filters and VCAs to the outside world and even extends their functionality.
Cross-modulation with VCOs and filters? Pulse width modulation? Amplitude modulation? No problem at all! With just a few patch connections within the module, you can get to know Mono Lancet 15 from a completely new angle.
Expand the sound generation with additional VCAs, the fourMulator, the VCDrive or modules from other manufacturers and create new possibilities.
The combination of Mono Lancet 15 and the Modular Dock can be your start into the modular world or a useful addition to existing systems.
