Norand Mono MK2
€679.00
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
In stock
Synth engine:
Fully analogue signal path
2x analogue oscillators
Infinitely variable waveforms
Through-zero frequency modulation
Hard sync
Filter overdrive
1x 3-pole multimode filter
Infinitely variable filter colouring
1x ADSR envelope
Soft overdrive
Modulation:
Controls: 13x dedicated ping envelopes, 20x dedicated modulators
Modulators: 5 waveforms, type settings: Free/Synced/Audio-Rate, Audio-Rate anti-aliased, quantised to OSC1, Free from 0.1 to 80 s
Envelope: Decay segment from 10 us to 20 s
Sequencer:
Up to 64 steps per pattern
1024 PPQN automations
Length/scale/beat division per pattern
Microshift/Ratchet/Probability per step
Swing/Slide/Accent
Copy/Paste
Undo/Redo with 1024 events
Mod Note mode
Fast, clock-independent loading/saving of projects
Randomiser:
Quantised note random generator
Randomiser for automation parameters
Step randomiser
Mod note randomiser
Microshift/Probability/Ratchet Randomiser
Memory:
Unlimited number of projects on SD card (until card is full)
64 patterns with patch memory per project
Unlimited parameter automation per pattern
40 mod notes per project

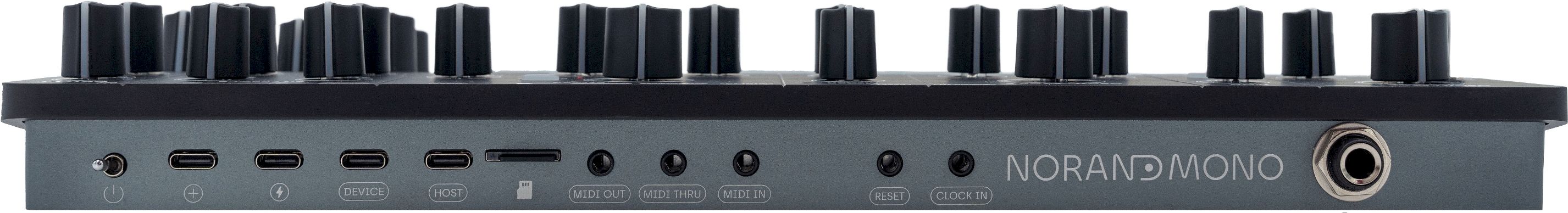

Hardware:
23x RGB-illuminated potentiometers
24x illuminated noiseless mechanical buttons
23x 808-style buttons
MIDI In/Out/Thru
1x 1/4" balanced main audio output
2x 1/8" Eurorack clock/reset inputs
OS updateable via flash EEPROM
MIDI Device USB-C connector
MIDI host USB-C connector
Outputs:
Stereo audio outputs: output level: +15 dBu maximum, output impedance: 200 Ohm, headphones up to 80 Ohm
Specifications of the device:
Power consumption of the device: approx. 7 W
Energy-saving mode for USB power
High-quality power supply included in the scope of delivery
Recommended power supply: 5 V DC, 2 A
Front panel made of high-quality aluminium
Rear panel made of milled aluminium
Dimensions: 350 x 150 x 35 mm
Weight: approx. 1.6 kg
Scope of delivery:
Mono MK2
Power supply unit
3 x MIDI adapter from 3.5 mm TRS plug (type A) to 5-pin MIDI socket
Quick Start Guide
Expand your horizons with the Mono MK2
The Mono MK2 is the ultimate monophonic synthesiser. Based on the valuable feedback from our passionate community of synthesiser enthusiasts, modular fans and musicians, we have developed a completely redesigned hardware version that meets the diverse requirements and includes the groundbreaking features that were on the wish list. The Mono MK2 is the next evolutionary stage of the mono synthesiser!
Analogue distortion and sophisticated analogue signal processing
The Mono MK2 is the result of four years of intensive development of our acclaimed discrete analogue signal path and adds a bespoke, smooth output overdrive circuit that expands the sonic possibilities of the Mono many times over.
Expressive 3D keyboard
The Mono MK2 integrates 3D sensors into its mini-keyboard to provide expressive control over every single note. Velocity, aftertouch, pitch bend and vertical modulation are available directly from the keyboard.
Continuous sequencer bar
3D sensors are also used for the sequencer and side buttons, enabling dozens of new musical features such as a live playhead, multi-pattern morphing and precise pattern control.
High-resolution automation
The Mono MK2 utilises a 1024-PPQN sequencer system that allows high-resolution automation to be recorded via the knobs and buttons. The 3D sequencer bar enables precise creation and editing of these automations in curve mode.

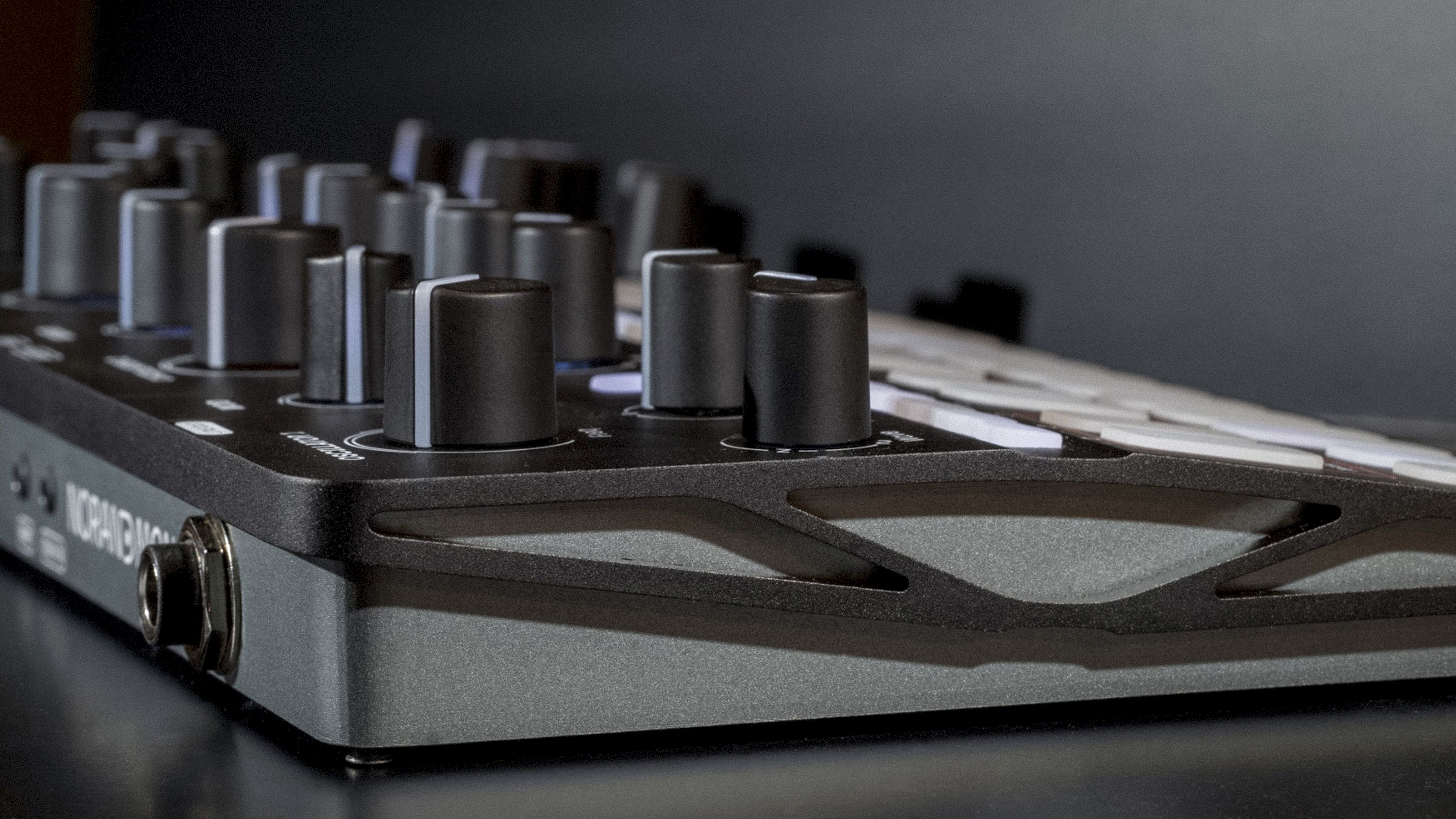

Housing made entirely of aluminium
The housing of the Mono MK2 is made entirely of aluminium. Attention has been paid to every detail.
Properties
| Sound generation: | Analogue, Not specified |
|---|---|
| USB: | Yes |
