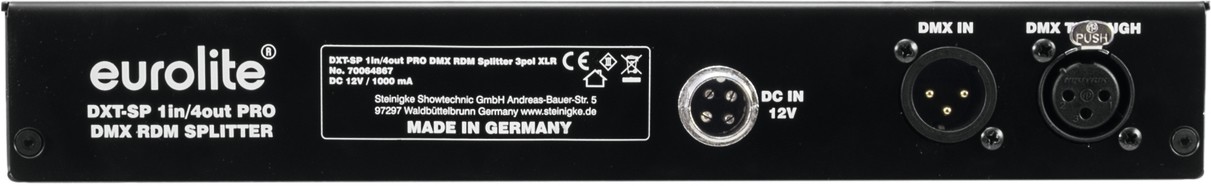

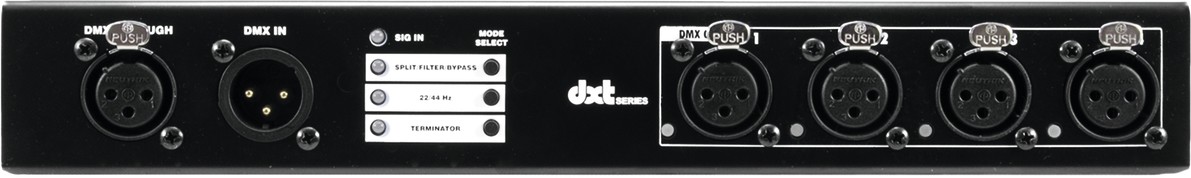

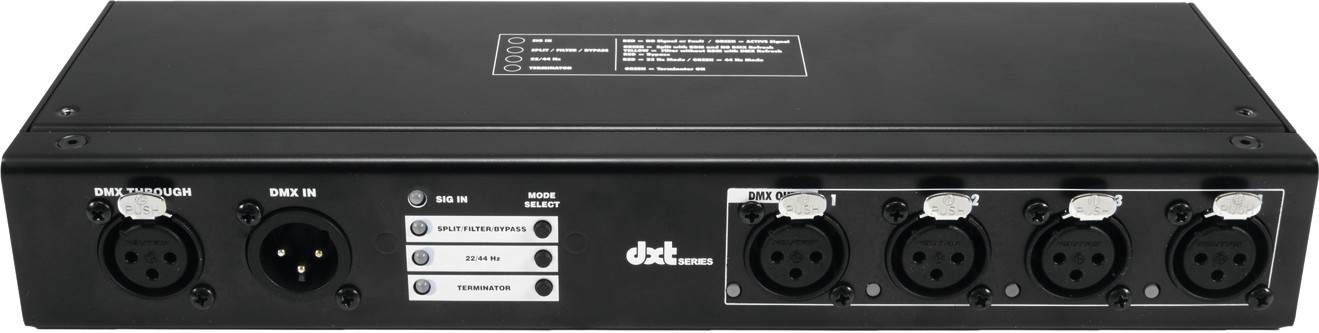

Eurolite DXT-SP 1in/4out PRO DMX RDM Splitter
€241.53
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Weitere Informationen finden sie hier.
Delivery in 3-6 days
RDM-capable DMX splitter 1in/4out with signal processing
DMX splitter for splitting a DMX input signal to 4 DMX outputs
Connections: 2 x DMX input (parallel), 2 x DMX loop-through output (parallel), 4 x DMX output
Input and loop-through output are duplicated on the front and rear and connected in parallel
Supports RDM for bidirectional communication via the DMX line
Switchable filter mode for filtering out RDM data prevents problems when operating with devices without RDM support
Bypass function for problem-free processing of DMX-like signals from older devices
Selectable output frequency: 22/44 Hz
DMX failure mode selectable: Hold, blackout, zero
Switchable terminating resistor
Input and outputs XLR 3-pin (Neutrik)
Outputs galvanically isolated
Each DMX output with independent driver and status display
Each DMX output can be reconnected to up to 32 DMX devices
Power supply via supplied plug-in power supply unit
Rack mounting via separately available cover (article 70064872)
DMX features: DMX failure mode (hold, blackout, zero)DMX forwarding for up to 32 additional DMX devicesRDM-capable, for bidirectional communication via the DMX lineRDM switchable to avoid problems when operating with devices without RDM
Made in Germany
Technical details:
Power supply: 100-240 V AC, 50/60 Hz12 V DC 1 A
Total connected load: 3.6 W
Power connection: power supply 4-pin screw connector (m) built-in version power connection cable with plug-in power supply unit (supplied)
DMX input: 2 x 3-pin XLR (M) built-in version NEUTRIK
DMX output: 4 x 3-pin XLR (W) installation version NEUTRIK Galvanically isolated with independent driver and status display, 2 x 3-pin XLR (W) installation version NEUTRIK Bypass
DMX features: DMX failure mode (hold, blackout, zero)DMX forwarding for up to 32 additional DMX devicesRDM-capable, for bidirectional communication via the DMX lineRDM switchable to avoid problems when operating with devices without RDM
Width: 27.5 cm
Height: 4.1 cm
Depth: 10 cm
Weight: 1.21 kg
