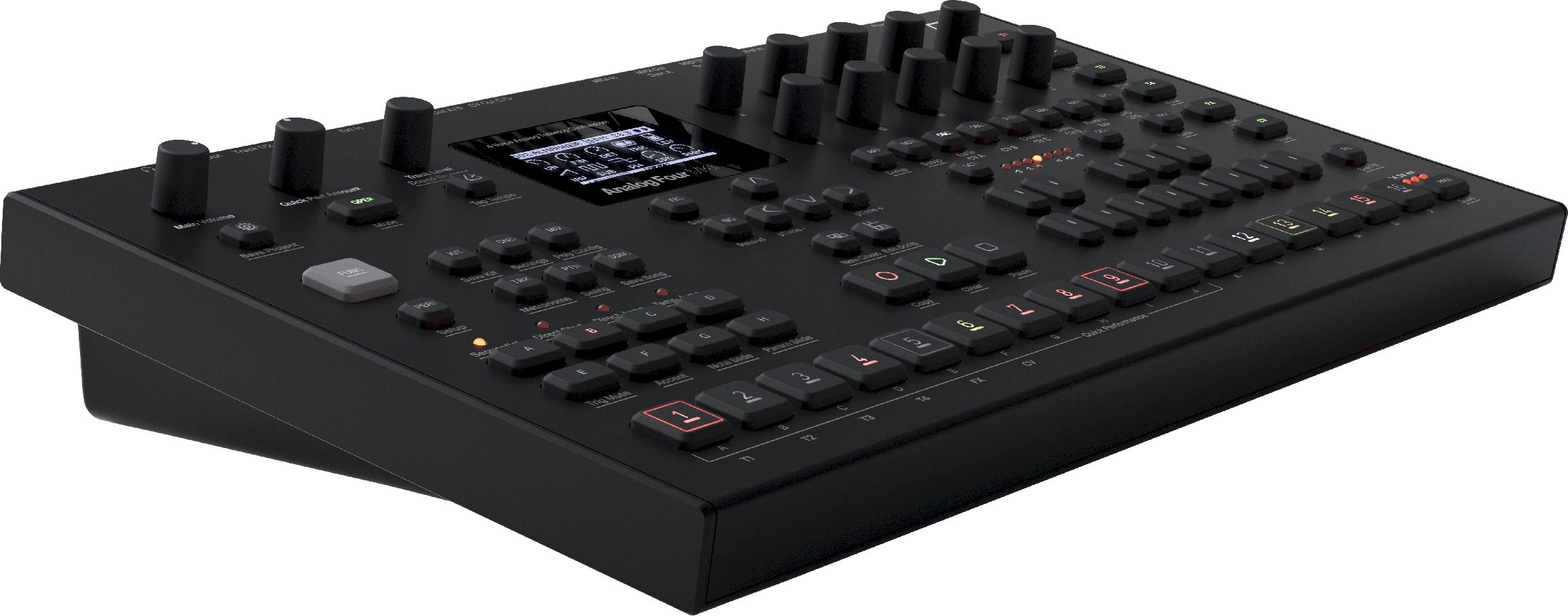

Elektron Analogue Four MK2

Specifications:

fully analogue signal path

4 voices - each with: 2x analogue oscillator, 2x sub-oscillator, 1x noise generator, 1x 4-pole analogue low-pass ladder filter, 1x 2-pole analogue multimode filter, 1x analogue overdrive circuit, 2x assignable LFO, 1x amp envelope, 2x assignable envelopes

up to 4 notes polyphony

up to 4 part multitimbral

up to 4 note unison playback

Chorus, delay and reverb send effects

Quick Performance Controls

live-friendly electron sequencer

512 factory presets

CV / Gate sequences

128 x 64 OLED screen

Precise hi-res encoders

durable, illuminated buttons

fully compatible with Analogue four MKI projects / data

Dimensions (W x D x H): 385 × 225 × 82 mm incl. buttons, power switch and rubber feet

Weight approx. 2.4 kg

matching decksaver #1158151

matching dust cover: #1163361

matching bag #1147597

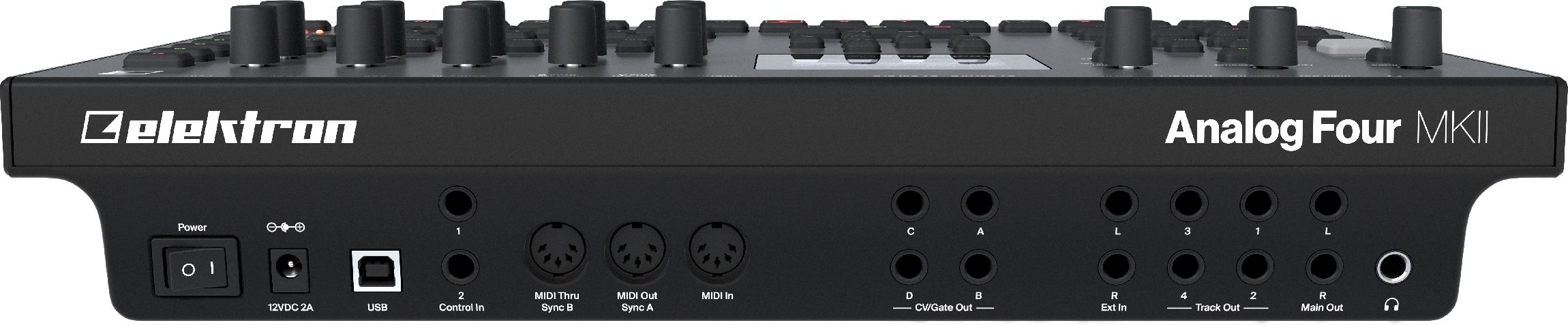

Connections:

1x 6.3 mm headphone output

2x 6.3 mm impedance balanced main output

4x 6.3 mm stereo voice output

4x 6.3 mm CV / gate output

2x 6.3 mm unbalanced external input

2x 6.3 mm expression / CV input

1x USB 2.0 high speed port

MIDI IN / OUT / THRU connections with DIN sync out

Analogue bliss:

Organic, warm, chaotic, exact and everything in between. It's easy to create your own unique analogue sounds. Programme them with precision or shape them however you like. The sonic range is so wide that entire tracks can be created from scratch.


From sounds to songs:

Four synthesiser tracks and an intuitive step sequencer allow you to easily create and layer melodies. Then play back your composition and reshape it instantly. Change notes, change sounds, add effects. Something unique will emerge every time.


Modular control:

The Analog Four MKII is not only a great synthesiser, it can also make other devices sing. Thanks to the CV/Gate and DIN Sync outputs, external analogue devices can be controlled in great detail. Make any modular or vintage synthesiser rig really come alive.

Properties

Polyphony: 4
Sound generation: Analogue
Elektron

Ansprechpartner:

Elektron Music Machines MAV AB
Banehagsliden 5, 5 tr.
SE - 414 51 Göteborg

Kontaktformular: https://elektron.se/contact-us
Web: http://www.elektron.se


Elektron ist ein schwedischer Hersteller von innovativen Musikproduktionsgeräten, der 1998 gegründet wurde. Bekannt für seine hochwertigen Synthesizer, Drum-Machines und Sampler hat sich Elektron einen festen Platz in der Welt der elektronischen Musik erobert. Die Produkte des Unternehmens zeichnen sich durch ihre kreative Benutzeroberfläche, leistungsstarke Klangerzeugung und umfangreiche Programmiermöglichkeiten aus. Modelle wie die Analog Four, Octatrack und Digitakt sind bei Musikern und Produzenten gleichermaßen beliebt und bieten eine einzigartige Kombination aus analogen und digitalen Klängen. Elektron legt großen Wert auf die Interaktivität seiner Geräte, was es den Nutzern ermöglicht, ihre musikalischen Ideen auf intuitive Weise umzusetzen. Mit einem klaren Fokus auf Innovation und Qualität bleibt Elektron ein wichtiger Akteur in der Musiktechnologie und inspiriert Künstler weltweit.

    Sicherheits- und Warnhinweise:

    Dieses Produkt enthält elektronische Bauteile und/oder wird mit elektrischer Energie betrieben.

    Bitte verwenden Sie es ausschließlich gemäß der Bedienungsanleitung und mit geeignetem Zubehör.

    ⚠️ Schützen Sie das Gerät vor Feuchtigkeit, extremen Temperaturen und mechanischer Beschädigung.

    ⚡ Prüfen Sie Kabel, Netzteile und Anschlüsse regelmäßig auf sichtbare Schäden.



    ℹ️ Weitere sicherheitsrelevante Hinweise entnehmen Sie bitte der beiliegenden Bedienungsanleitung.

    ℹ️ Bei Fragen zur sicheren Verwendung wenden Sie sich gerne an unseren Kundenservice.
