DPA KIT-4099-DC-10C

Polar pattern: Super cardioid

Operating principle: Pressure gradient

Cartridge type: Pre-polarised condenser

Frequency range: 20 Hz - 20 kHz

Sensitivity, nominal, +/-3 dB at 1 kHz: 6 mV / Pa; -44 dB re. 1 V / Pa

Equivalent noise level, A-weighted: Typ. 23 dB (A) re. 20 Pa (max. 26 dB (A))

S / N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 71 dB (A)

Total harmonic distortion (THD): <1% up to 131 dB SPL peak

Dynamic range: Typ. 108 dB

Max. SPL, peak before clipping: 142 dB

Output impedance of MicroDot: 30 - 40 . From DAD4099 / DAD6001-BC: 100

Cable drive capability: Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR adapter

Output balance principle: Signal balanced with DAD4099 or DAD6001-BC XLR adapter

Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR adapter

Connector: MicroDot

Colour: black

Microphone diameter: 5.4 mm (0.21 in)

Microphone length: 45 mm

Cable length: 1.8 m

Cable diameter: 1.6 mm (2.2 in)

Polarity + V on MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter)

Temperature range: -40° C to 45° C (-40° F to 113° F)

Relative humidity (RH): up to 90%

Gooseneck length: 140 mm

Weight: 2.0kg

Scope of delivery:

10x VO4099 Hi Instrument Microphone

10x DAD6001-BC adapter

10x CM1618B00 miniature microphone cable

8x VC4099 violin holder

4x GC4099 Guitar Holder

3x CC4099 Cello Holder

2x BC4099 bass holder

2x DC4099 drum holder

2xPC4099 Piano magnet holder

2x STC4099 saxophone/trumpet holder

2x UC4099 universal holder

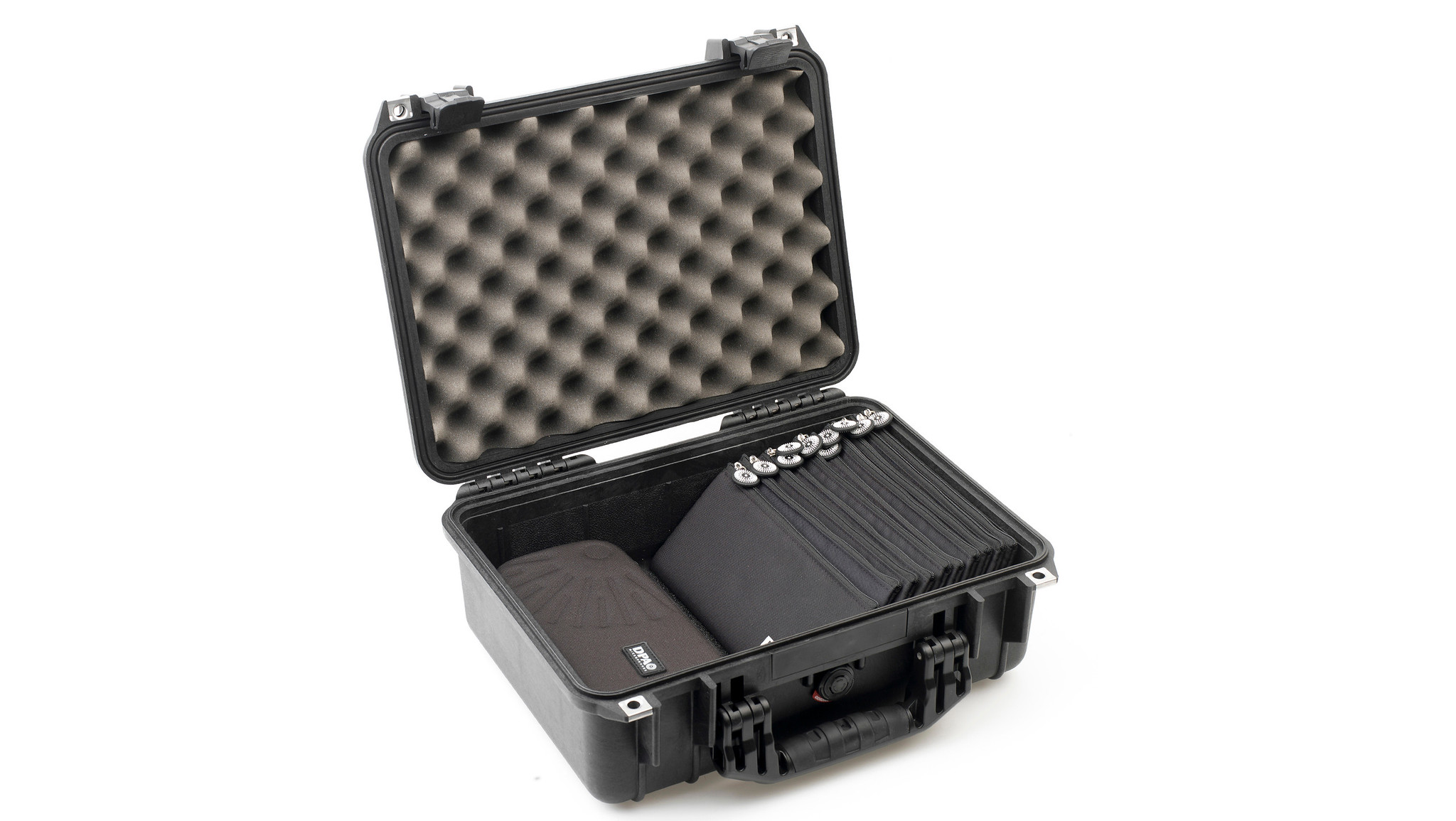

Hard case
