Warm Audio WA-47jr
€290.03
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Weitere Informationen finden sie hier.
In stock
Large diaphragm condenser microphone
Polar pattern: cardioid, omnidirectional, figure of eight
Custom Warm Audio k47 34mm capsule (Model # WA-47-B-80v)
Gold-plated double large diaphragm with 6 micron Mylar
100% discrete circuit with Toshiba FETs, Wima film capacitors, Panasonic electrolytic capacitors
LoCut: 70Hz
Pad: -10db
Self-noise: 9dB(A)
Dynamic range: 138dB(A)
Max. SPL: 147 / 157dBSPL (@ 1kHz 1kOhms 0.5% THD, 0 / -10dB)
Frequency response: 20 Hz - 20 kHz
Sensitivity: 10mV / Pa or -40dB
Output impedance: 100 Ohm
Nominal load impedance: ≥1kOhms
Maximum output: 16dBu @ 1kHz, 1kOhms, 0.5% THD
S/N ratio: 85dB(A) (IEC651)
Dynamic range: 138dBA (IEC651)
48V phantom power
Gold-plated 3-pin XLR connector
Dimensions: 52mm (diameter) x 210mm (length)
Weight: 499g
Scope of delivery: WA-47jr microphone, elastic suspension, microphone holder, storage bag

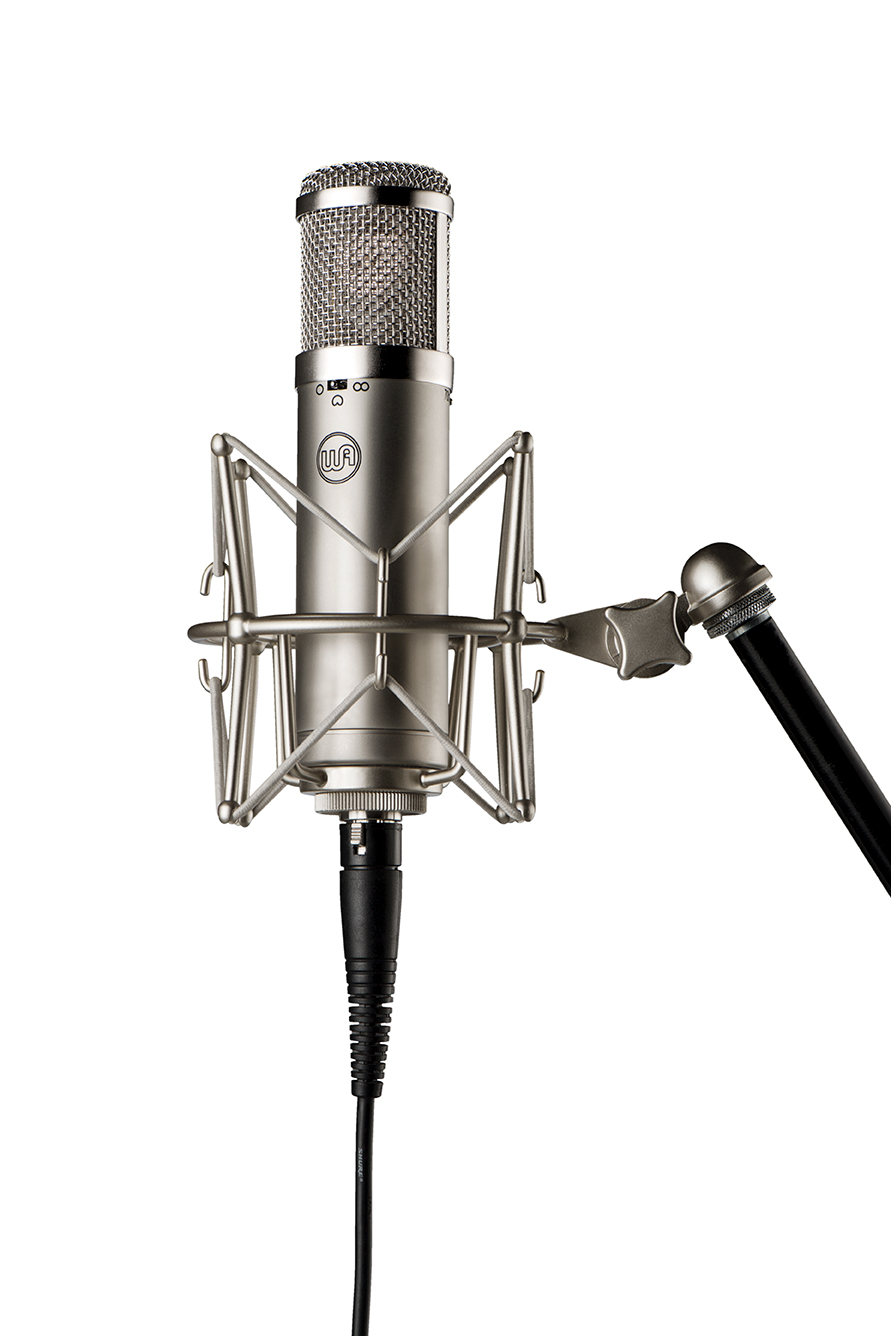

The Warm Audio WA-47jr large diaphragm condenser microphone is a discrete, transformerless FET version of the renowned '47 classic that has been used on countless hit albums over the last 50 years. The WA-47jr is suitable for use in professional recording studios as well as for home studio, live and broadcast applications. It harmonises superbly with vocals, acoustic and electric guitars, acoustic and electric bass, drums, piano, strings, brass and woodwind instruments and numerous other sources.
The WA-47jr uses a specially developed k47 capsule, which was already used in the classic '47 microphone and is also used in its big Warm Audio brother, the WA-47. It is carefully and precisely manufactured by an Australian-based capsule manufacturer and has a very similar sound to the original '47 microphones.

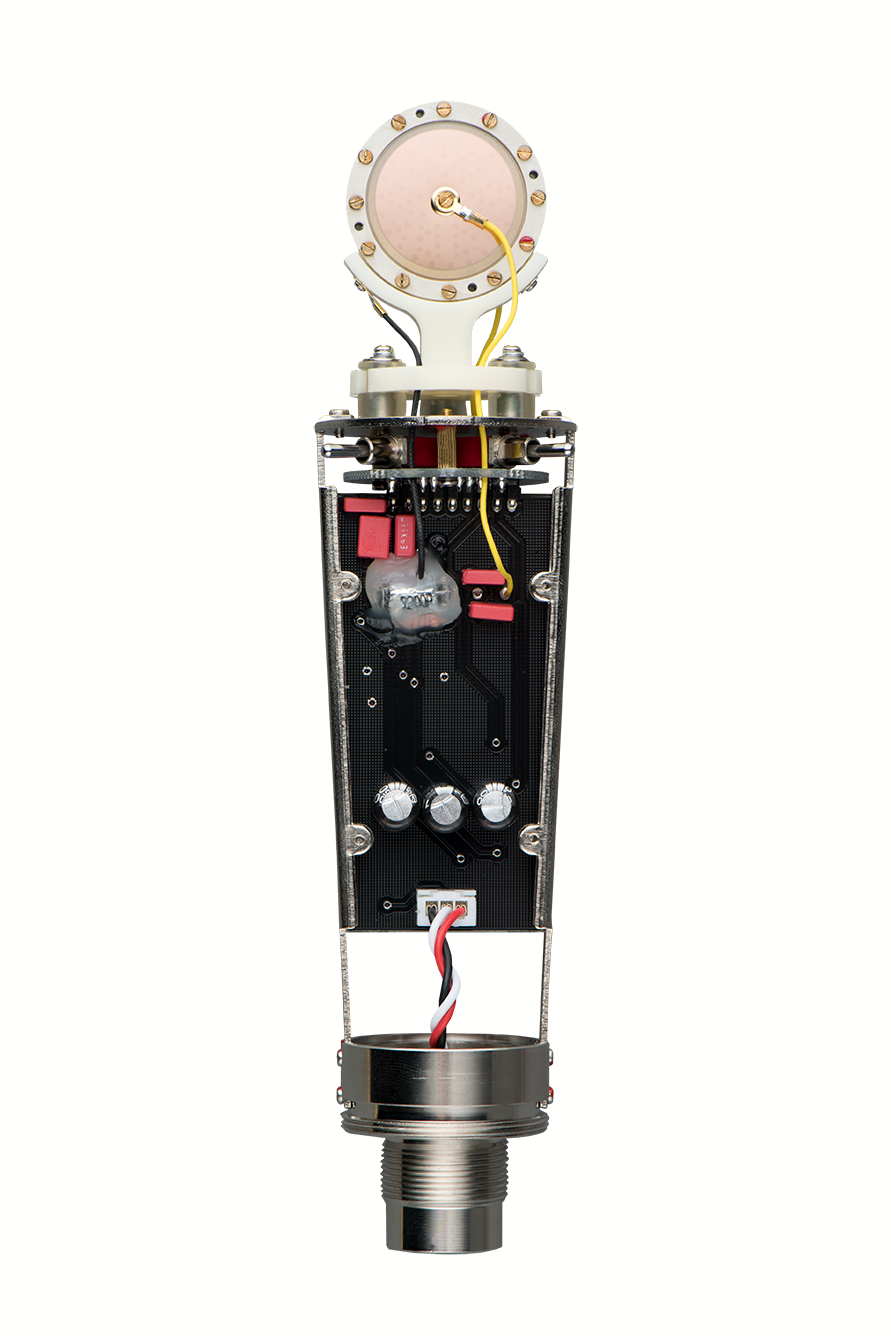

High-quality Toshiba FETs, Wima film capacitors and Panasonic electrolytic capacitors are used in the 100% discrete circuitry of the WA-47jr. The electronics have been modernised compared to the original and are somewhat simpler, but the components and circuits used are first-class throughout and have an incomparable sound quality.
Properties
| Characteristic: | Cardioid |
|---|---|
| Incl. Shockmount: | Yes |
| Low cut: | Yes |
| Pad: | Yes |
| Switchable characteristic: | Yes |
| Tube: | No |
| Type of construction: | Capacitor |
| USB connection: | No |
