Tascam Sonicview 16

Key features of the :

The TASCAM VIEW interface (Visual Interactive Ergonomic Workflow) enables intuitive operation with three different view modes

Multiple simultaneous views across two 7-inch colour touchscreens

44 input channels (40 mono, 2 stereo)

22 flexible output buses plus a stereo sum with a 31-band graphic EQ

FPGA-based mixing engine with 54-bit floating-point processing and a 96 kHz sampling rate

Ultra-low latency: 2 × Fs (20.8 s) in the mixing engine, 0.51 ms analogue-to-analogue

32-bit, 96 kHz A/D and D/A conversion

Tascam HDIA (High-Definition Instrumentation Architecture) microphone preamplifier

Built-in Dante interface (64 inputs/outputs); supports redundancy, AES67, DDM and SMPTE 2110

USB audio interface with 32 inputs and outputs at 32-bit and 96 kHz

16 microphone/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing

Four multi-effects processors

Tascam Sonicview for Windows, macOS and iOS enables remote control and offline editing

Two Tascam expansion slots

Optional expansion cards available for 32-track SDXC recorders, as well as MADI, AES/EBU and analogue signals

Further features:

The operating systems for the hardware mixing surface and the mixing engine are independent of one another, ensuring high stability and a continuous audio workflow

The faders can be removed and replaced individually; the cover can be removed for easier maintenance without having to disconnect any cables

Libraries for snapshots, effects, modules, parametric EQ, graphic EQ, gate and compressor

18 freely assignable buttons, seven user-defined fader layers, eight DCA groups

16+1 motorised 100 mm faders

16 encoders with colour LEDs

16 LC displays with colour LEDs for channel names, as well as indicators for input levels and dynamic level reduction

Internal two-track recording/playback to SD card or USB drive

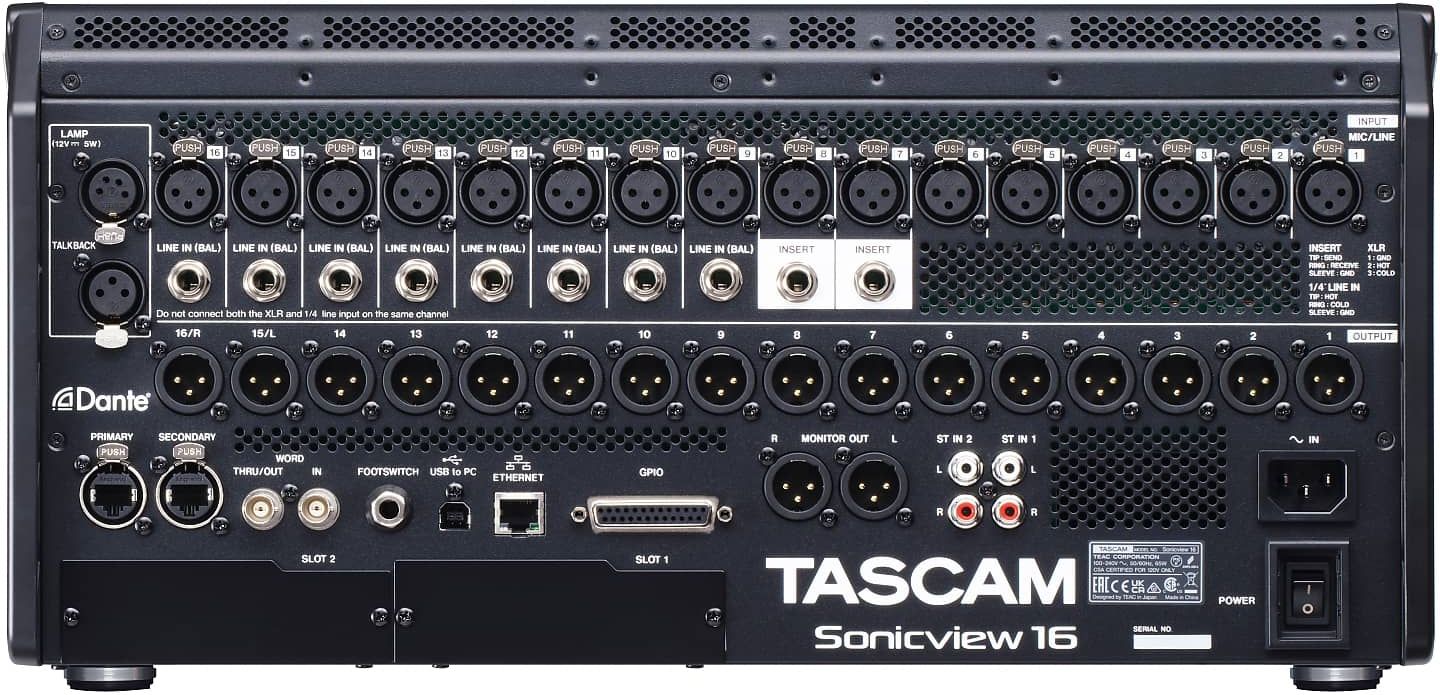

Eight line inputs (3-pin jack sockets), two pairs of stereo inputs (RCA), talkback input (XLR)

XLR monitor outputs

Headphone outputs via standard (6.3 mm) and mini jack (3.5 mm) sockets

Word clock In, Out and Thru

Gigabit Ethernet port (1000BaseT)

GPIO with eight inputs/outputs via DB25 connector

Footswitch connection (3-pin jack socket)

Connection for console lighting (XLR 4-31)

Power switch with safety feature

Optional Dante-compatible stage box with 16 inputs/outputs (SB-16D)
