SynQ DBI-44 DANTE Interface
€766.30
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Delivery in 3-6 days
High-quality analogue/Dante network audio bridge for fixed installation.
Converts DANTE® network audio into 4 high-quality balanced analogue outputs.
Converts 4 high quality balanced analogue inputs to DANTE® network audio.
GIGABIT Ethernet input/output with a high-speed Marvell switch (no connection delays).

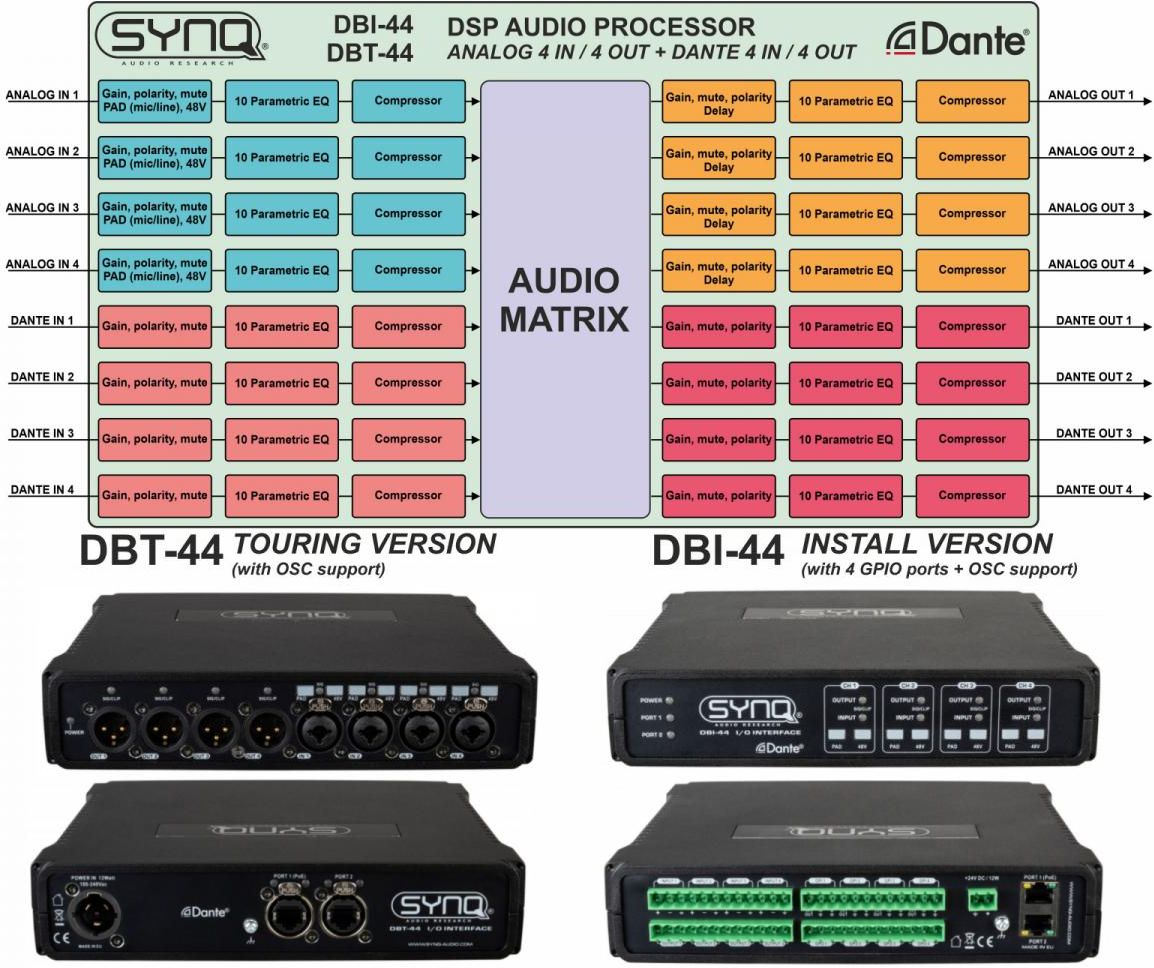

Built-in DSP AUDIO PROCESSING
8x8 AUDIO MATRIX for local premix, flexible routing
Integrated WEB SERVER
Extremely high audio quality: S/N > 120dB ~ THD: < 0.003%
GPI/GPO connections for additional functionality and additional control for various functions:
GPI: Connection of switches, potentiometers, ballasts, alarm systems,...
GPO: control all types of external devices, trigger PowerPoint presentations, ...

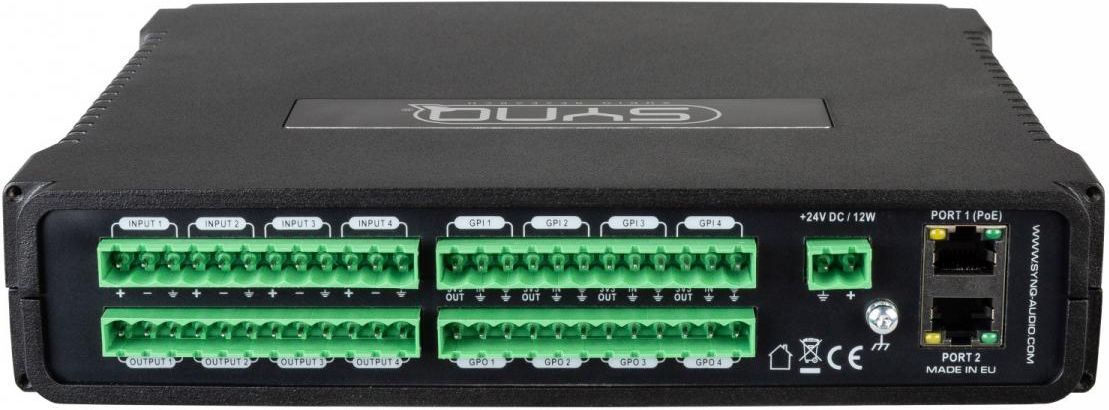

Fully equipped with EUROBLOCK connectors for easy installation.
Complies with the IEEE 802.3-2005 standard for information technology.
Extreme reliability thanks to the exclusive use of industrial-grade components
POWER options:
External 24Vdc input (EUROBLOCK)
PoE: Power supply via Ethernet (PoE class 0)
HOUSING: ½ 19" die-cast housing with various installation options:
1 device fits into a 1U 19" rack (19" adapter optional).
2 devices fit together in a 1U 19" rack (adapter included).
Easy wall mounting with optional wall mounting adapter.
The DBI-44 from Synq Audio is a high-quality analogue/DANTE® network audio bridge for fixed installation with 4 analogue inputs + outputs and GPIO connections.
