Strymon TimeLine MX pedal

Delay workstation pedal, with two independent engines running simultaneously

Powerful tri-core 800 MHz ARM processor

Completely new Spectral Engine – a unique, musical approach to granular delay with precise tempo alignment

New: MultiTap delay with individual control per tap over panning, level, filtering and other parameters

New: Reverb engine – delay and reverb in a single pedal

New: Oil-Can Delay for authentically dark and unpredictable vintage echoes

New: Drum delay with multi-head control for playback level, feedback and panning

Simultaneous use of two engines with serial, parallel or split signal routing

5-minute stereo looper with reverse and half-speed playback

Stereo inputs and outputs, full MIDI support (DIN/TRS), USB-C and large OLED display

Robust and lightweight anodised aluminium casing

Dimensions: 12.7 cm deep x 17.2 cm wide x 4.8 cm high

Designed and manufactured in the USA

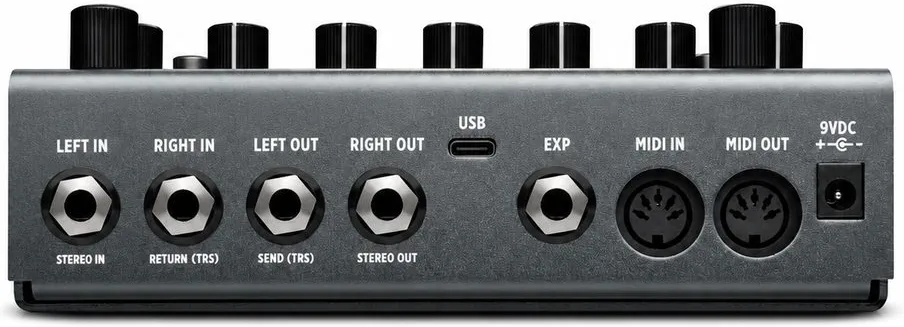

Inputs, outputs and switches

Stereo input and output

Switchable I/O configurations for normal operation, mono or stereo effects loop, wet/dry and wet/dry/wet

Dedicated TAP footswitch for adjusting the delay time and activating the one-button looper

Infinite repeats for delay feedback effects and infinite reverb sustain (hold down the illuminated A or B footswitch for the current preset)

High-quality analogue circuitry with a discrete JFET input preamp and low-impedance output stage

Selectable input level for instrument and line-level signals

Analogue dry path for a latency-free dry signal that is never digitised

True bypass (electromechanical relay circuit) or selectable buffered bypass

The EXP input allows connection of an optional TRS expression pedal, a MultiSwitch, a MultiSwitch Plus or a TRS MIDI connection

USB-C port for firmware updates, MIDI inputs and outputs, and connection to the Strymon Nixie 2 editor software

Audio quality

Input impedance: 1 megaohm

Output impedance: 100 ohms

A/D & D/A: 24-bit, 96 kHz

Maximum input level: +10 dBu

Signal-to-noise ratio: typically 116 dB

Powerful 800 MHz tri-core ARM processor

32-bit floating-point processing

Power supply

2.1 mm, centre-negative, 9 V DC, minimum 500 mA (available
