Article-No 1086685

Showtec DB-1-4 4 Channel DMX Booster

€105.00*

Prices incl. VAT plus shipping costs

Finanzieren Sie bequem mit Consors Finanz.
Weitere Informationen finden sie hier.

Cheaper elsewhere?

In stock

Showtec DB-1-4 4 Channel DMX Booster

Features:

DMX splitter for 4 outputs

Inputs and outputs electrically isolated

DMX indicator LEDs at the inputs & outputs

3- & 5-pin XLR inputs & outputs

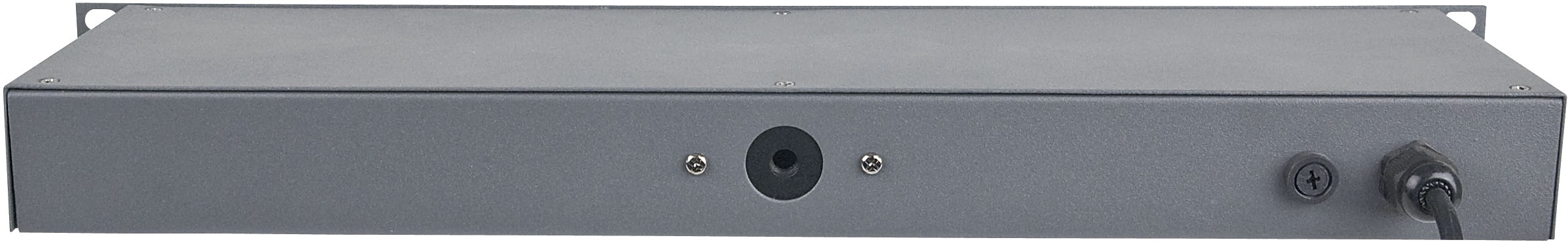

M10 nut on the back for a truss clamp

Technical specifications:

Universal DMX-512 Optical Splitter

One input, four outputs (3-pin and 5-pin)

Additional thru output (3-pin and 5-pin) (for connection to other data streams)

Electrical isolation between input and output

1-space, 1U installation dimension

AC Power: Autoswitching 100V - 240V 50/60Hz

Dimensions (LxWxH): 483 x 134 x 46 mm

Weight: 2.6 kg

The DB-1-4 is a universal DMX-512 optical splitter. It distributes the incoming DMX signal, in chain configurations, into four separate outputs with an additional "thru" port. The DB-1-4 has 3-pin and 5-pin XLR connections for easy connection. The device can be installed in any 19" housing or in the rack using the M10 slot on the rear. The light controller has clear LEDs to indicate the DMX signal status of each output and input.
