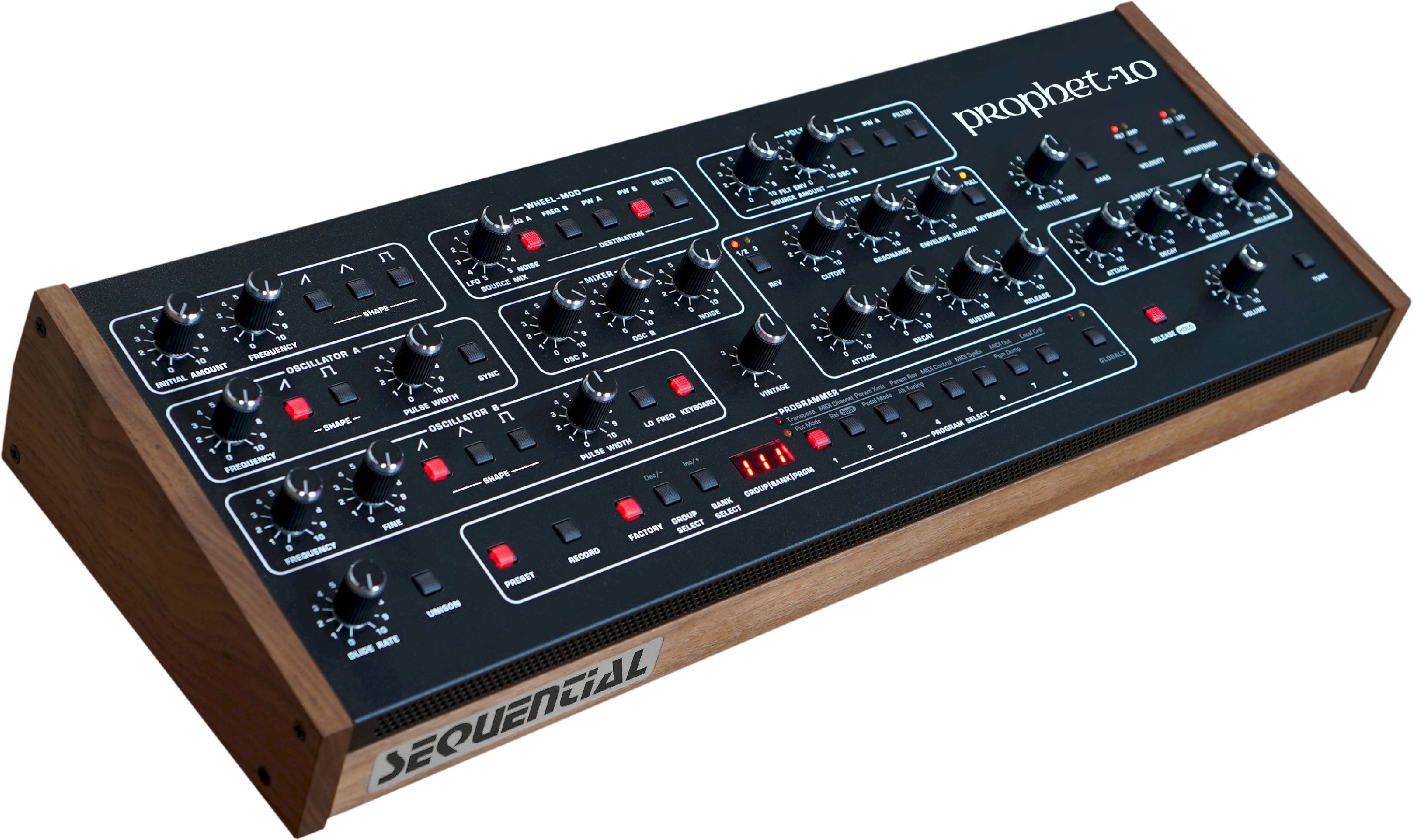

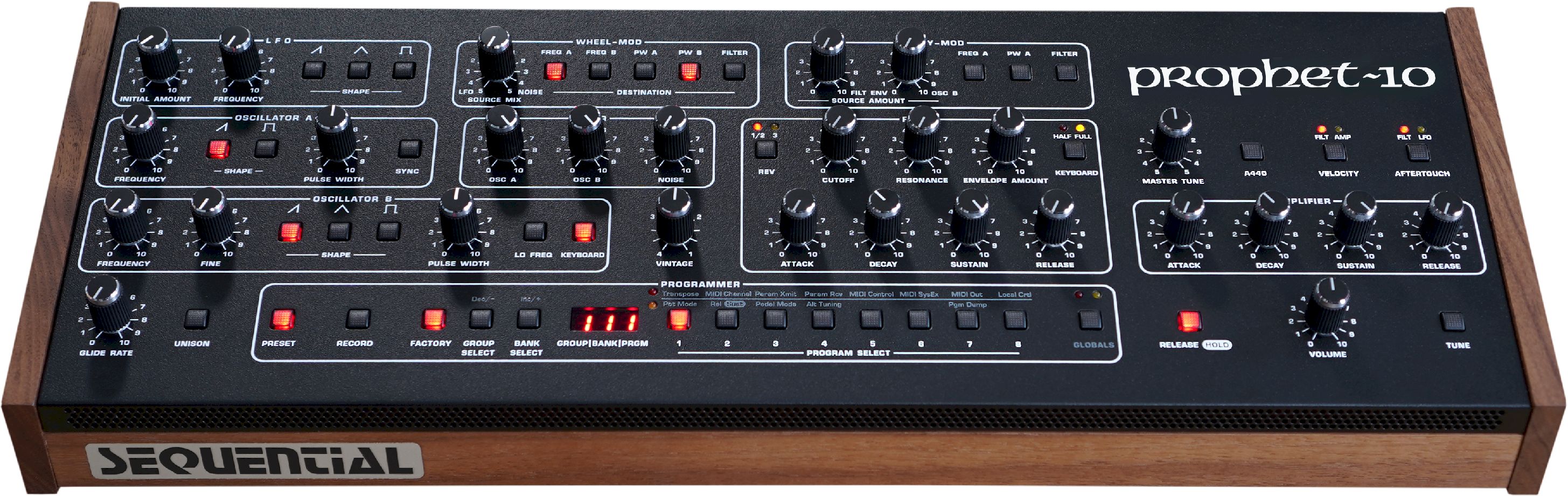

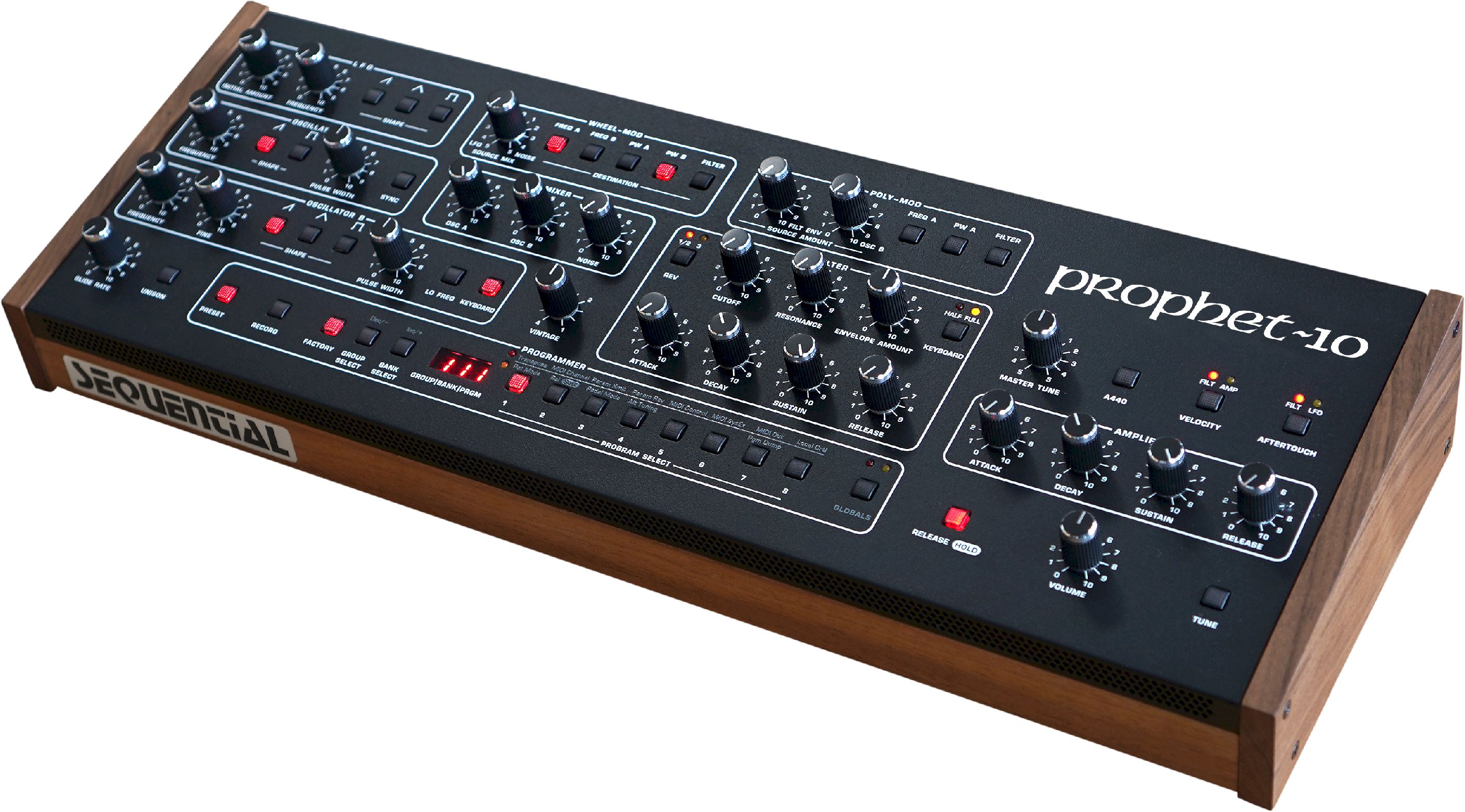

Sequential Prophet 10 Desktop

Prophet-10 Desktop Specifications

Oscillators:

Two authentic CEM 3340 voltage-controlled oscillators per voice

Simultaneously selectable waveforms. Oscillator A: sawtooth, variable square. Oscillator B: sawtooth, triangle, variable square.

Adjustable pulse width per oscillator

Hard sync: Oscillator A synchronises to oscillator B

LFO mode (oscillator B)

Switchable keyboard tracking (oscillator B)

Mixer:

Amount/proportion oscillator A

Amount/Share Oscillator B

Amount/share white noise

Low-pass filter:

Four-pole, resonant low-pass filter per voice

Switchable between authentic versions of the Prophet-5 Rev1/2 and Prophet-5 Rev3 filters

The Rev1/2 filter is a 2140 filter developed by Dave Rossum - the modern counterpart to the original 2040 filter found in the Prophet-5 Rev1 and Rev2 models.

The Rev3 filter utilises the CEM 3320 designed by Doug Curtis

The filter can be set to self-oscillate using the resonance control

Keyboard tracking: off, half intensity, full intensity

Filter envelope:

Four-stage envelope generator (ADSR)

Modulation of the envelope intensity via the velocity response

Volume envelope:

Four-stage envelope generator (ADSR)

Modulation of the envelope intensity via the velocity response

LFO:

Three waveforms: Sawtooth, triangle, square. All waveforms can be activated simultaneously

Initial modulation intensity and modulation wheel

Modulation targets: Frequency of oscillator A and B, pulse width of oscillator A and B, filter input frequency

Poly Mod:

Sources: Filter envelope and oscillator B

Targets: Frequency and pulse width of oscillator A, filter onset frequency

Vintage control:

Recreates the characteristics of the different Prophet 5 models by varying the oscillators, envelopes, amplifiers and other parameters. This allows you to move from a very stable 4, as in the Prophet-5 Rev4, the new version, to a 1, which is based on the Prophet-5 Rev1, the rarest and most temperamental of all Prophet-5 models.

Aftertouch:

Channel aftertouch (mono)

Destinations: Filter input frequency, LFO amount/proportion

Bi-timbral operation:

Layer mode: two different, five-voice programmes are placed on top of each other

Split mode: two independent, user-definable performance areas, each of which is assigned a different five-voice programme.

Performance controls:

Polyphonic Glide (Portamento)

Unison mode (monophonic) with configurable number of voices, from one to all voices, and several modes for voice distribution

Preset button: When switched off, the control panel is active. Here you can hear the exact sound of the current settings of the control elements.

Programme memory:

200 user and 200 factory sounds in five banks with 40 programmes each

Direct programme access, including one-button access to the current set of eight programmes as on the original Prophet-5

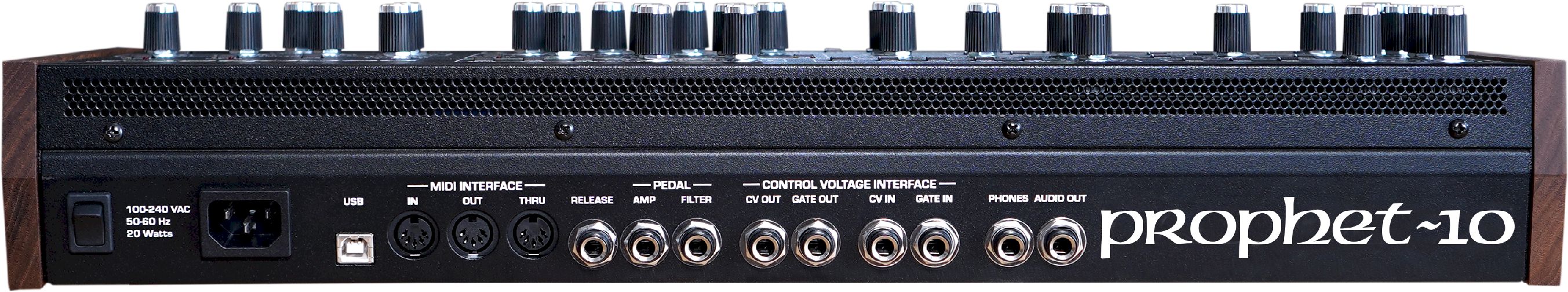

Connections:

Mono output (1 x 6.35 mm jack socket)

Headphone output (6.35 mm stereo jack)

MIDI connections: In, Out, Thru

USB port for bidirectional MIDI communication

Control voltage input and output (1 x 6.35 mm jack socket), 0 to +5 volt input and output signal. Configured for operation with 1 volt per octave.

Gate input and output (1 x 6.35 mm jack socket). Accepts on/off signals between 1.5 and 15 volts to trigger the envelopes of a single voice in the Prophet-10. Outputs a 15 volt on/off signal to trigger the envelopes of external synthesisers.

Expression pedal input for controlling the filter frequency of the low-pass filter

Expression pedal input for volume control

Sustain pedal/foot switch input

Power supply:

IEC AC input for the internal power supply unit

Can be operated worldwide with voltages from 100 to 240 volts at 50 to 60 Hz; Prophet-10: Maximum power consumption 20 watts.

Physical specifications:

Tour-ready steel construction with high-quality black walnut wood trim

Dimensions: L x W x H: 52.70 cm x 18.80 cm x 7.62 cm

Weight: 4.5 kg
