Schoeps CCM4 Lg
€1,769.00
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
In stock
Small diaphragm condenser microphone
Cardioid characteristic

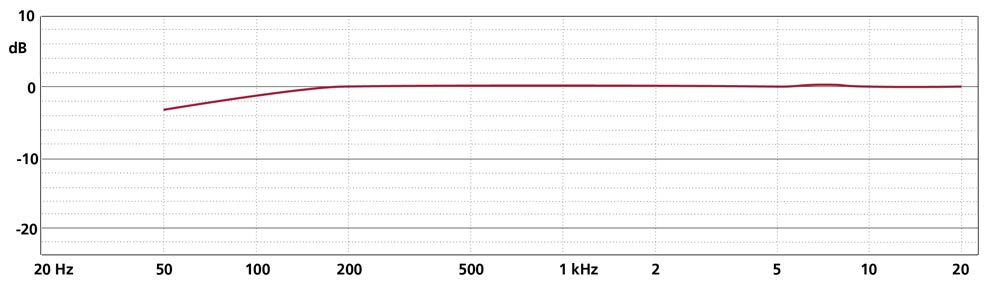

Frequency response: 40Hz - 20kHz
largely frequency-independent directivity
Sensitivity: 13mV/Pa
Maximum sound pressure level (at 0.5% THD): 132dB
Phantom power required
thin, detachable connection cable ends in an XLR-3M plug
Standard length of the cable (K 5 LU): 5m
At the front end of the cable is a miniature Lemo plug with a union nut. Once screwed in place, this prevents rattling.

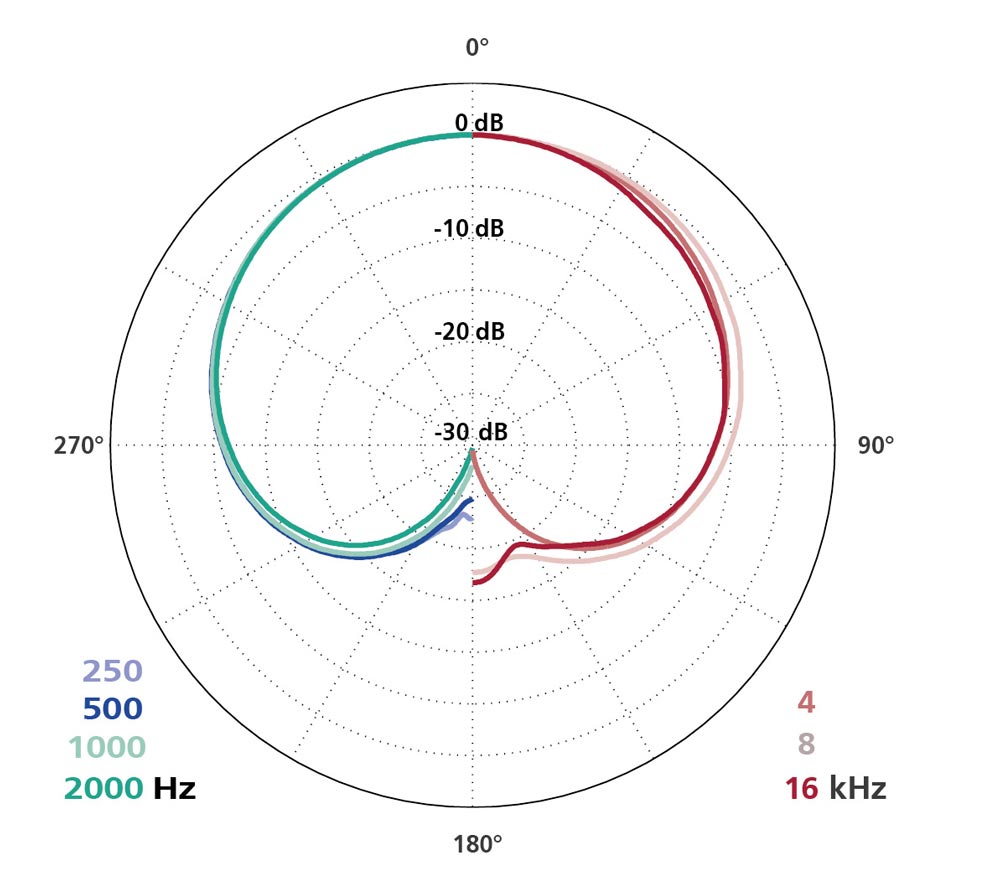

The CCM 4 has been optimised with regard to insensitivity to sound coming from the rear. As is characteristic of the classic cardioid, the attenuation is 6dB at lateral incidence below 90° and up to 30dB at incidence from the rear - depending on the frequency and distance. Diffuse sound is reproduced 4.8dB weaker than frontal sound, a value that corresponds to the directivity*. The greater this is, the less "space" a microphone transmits and the less susceptible it is to acoustic feedback.
Thanks to its directivity, the CCM 4 can be positioned around 1.7 times further away from the sound source than a pressure transducer of the same sensitivity with the same reverberation balance. Even in a diffuse sound field, i.e. at a great distance from the sound source in the room, this type of microphone has a constant frequency response - apart from a slight rise at 10kHz.
The sound image is present and free of colouration. This microphone type is equally suitable for speech and music recordings, which is why it is used in the ORTF stereo microphone (MSTC 64 Ug, or STCg). It also delivers excellent results as an XY pair and as a centre microphone in an MS arrangement.
