Rupert Neve Designs Newton Channel
€2,149.00
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Delivery on request
Premium class microphone preamplifier
Class-A microphone preamplifier
Preamplifier design of the classic Neve preamps
3 band EQ with semi-parametric mids
72 dB gain including 6 dB fine tuning
48 V phantom power and phase reverse switchable
Low and high shelf bands switchable @ 60/150Hz or 8/16kHz
fast VCA compressor with +20 dB make-up gain and pre-EQ/post-EQ option
VCA compressor with automatic attack control and musically tuned sound
proven Rupert Neve output transformer with Red/Blue Silk saturation circuit
transformerless input stage for a transparent, neutral sound
variable Silk Red and Silk Blue circuits for 2nd and 3rd order harmonic amplification
48V phantom power switchable
LED meter
Phase inversion

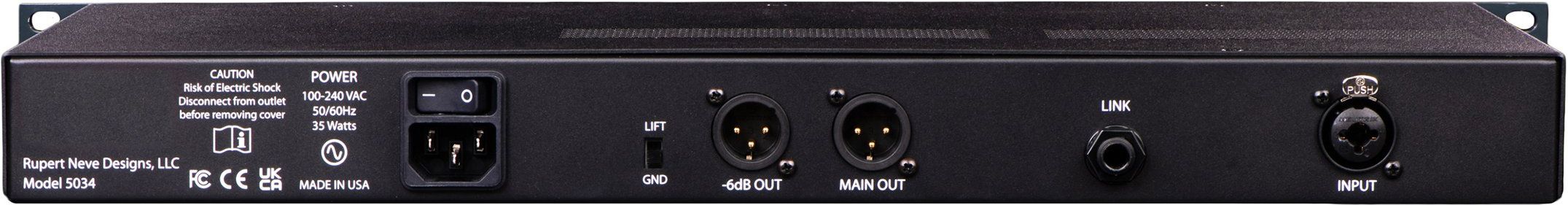

Input: XLR/6.35mm jack combo socket
Output: XLR XLR 3-pin
Link: 6.35mm jack
Maximum input level: +23.6 dBu
Maximum output level @ 1kHz: +23.6 dBu
Noise (unweighted):
Line Out (unity gain): -102 dBu
-6dB line output (unity gain): -107 dBu
Line output (+30dB gain): -95 dBu
Equivalent input noise at +30 dB gain (ON): -125 dBu
Frequency response:
10Hz to 30 kHz +/- 0.1 dB
5Hz to 70 kHz +/- 0.25 dB
5Hz to 140 kHz -3 dB
Compressor section:
Settling time (fixed): 20mS
Release time (variable): 50mS (fast) to 500mS (slow)
Dimensions (HxWxD): 10.2 x 61 x 33 cm
Shipping weight: 4.1 kg
Sound tradition meets modernity

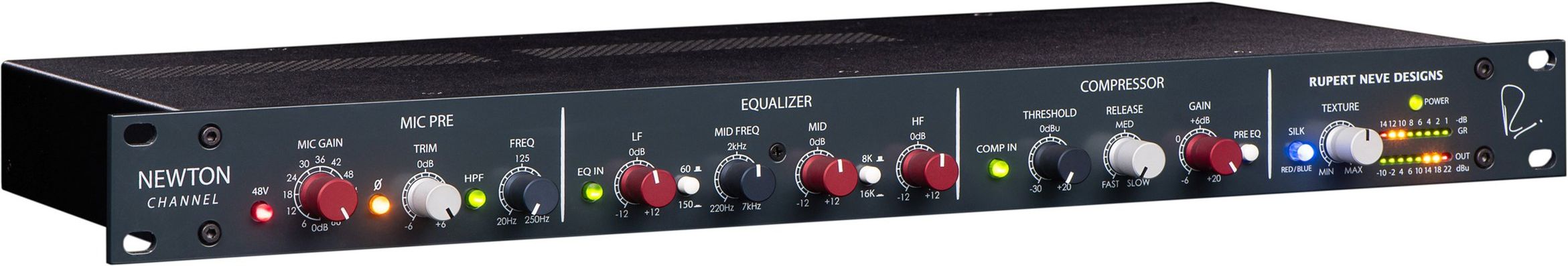

The Rupert Neve Designs Newton Channel is a modern channel strip that has evolved from a legendary sound tradition. It offers classic sound at the touch of a button, with the unmistakable character, musical sound shaping capabilities and proven reliability that characterise a Rupert Neve Designs product.
The Newton Channel features a Class A mic preamp with a switchable high-pass filter, a musical 3-band discrete EQ with LF and HF shelving and a fully parametric mid-band, a fast and flexible VCA compressor and Rupert Neve Designs transformer-coupled outputs with RND's popular harmonic colour stage: variable Silk Red & Blue. The Newton Channel's input stage accepts both mic and line level signals. The Newton Channel also has 48V phantom power. If this is required by a connected microphone, it can be conveniently switched on using a button. The device also offers the option of being linked to a second Newton, allowing it to be used for stereo processing.
The compressor can be placed before or after the EQ and both the EQ and the compressor can be completely bypassed via switches on the front panel. Like many other recent Rupert Neve Designs products, the Newton Channel also offers both main and -6dB outputs (each balanced three-pin XLR output). The -6dB output allows the Newton to be fully driven to achieve more transformer harmonics without overdriving the next device in the chain. Paired with the variable Silk Red and Blue modes to boost musically relevant harmonic content across two different frequency ranges, the Newton offers a variety of sonic colouration options, ranging from clean and transparent to exaggerated vintage tones.
