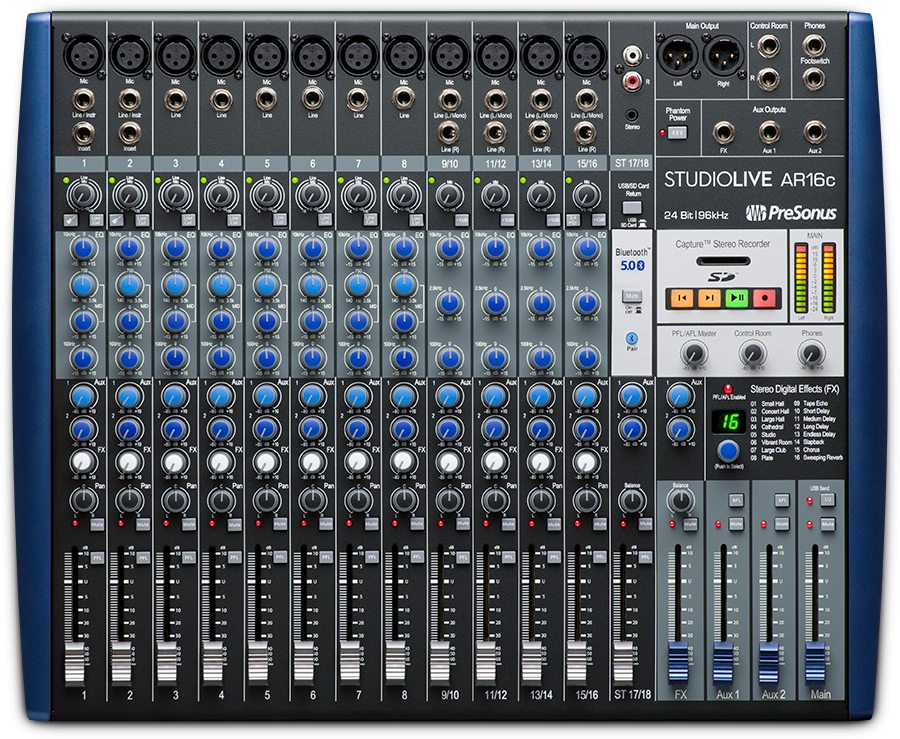

Presonus StudioLive AR16c

18x4 USB 2.0 (via USB-C socket) audio interface with 24 bit/96 kHz

Recording of all channels and the main mix

2x2 SD recorder for recording the master mix

Supports SD and SDHC memory cards with up to 32 GB

18-channel analogue mixer

12 balanced microphone inputs with XMAX microphone preamps

2 insert points

Two instrument/line inputs


16 balanced line inputs:

8 mono

4 stereo pairs

Stereophonic Super Channel (channel 17/18) with Bluetooth 5.0 connection, RCA inputs, 3.5 mm stereo jack input and stereo playback from SD card/USB

Eight mono and four stereo channels with level control and controls for panning, PFL solo switching, high-pass filter and a semi-parametric 3-band EQ

Two monitor busses with dedicated channel sends, AFL solo switching and balanced TRS output

L/R control room outputs with volume control

Headphone output with volume control

High-pass filter in each channel

Quasi-parametric 3-band EQ with parametric centre band in each mono channel

Semi-parametric 3-band EQ in each stereo channel

Stereo effects processor with 16 presets, dedicated sends and returns and bypass footswitch connection

Mic/line boost in the stereo channels for low-level input sources and hi-fi devices


Included software:

Capture software for multi-track live recording

Studio One ®Artist recording and production software (DAW)

Studio Magic Plug-In Suite

Don't be fooled: The StudioLive® AR16c may look like an ordinary analogue mixer, but it was developed specifically for recording. With a premium analogue front end, 12 XMAX mic preamps with high gain reserves and a USB-C compatible 18x4 USB 2.0 audio interface with 24 bit and 96 kHz, the hybrid design allows easy recording and simultaneous mixing of studio productions and live shows via a single, intuitive console. With additional features such as a musical 3-band analogue EQ, mic/line boost for low-level vintage synthesizers and broadcast microphones, a brand new digital effects section with rich reverbs and lush delays, Bluetooth® technology, a stereophonic SD recorder etc., it presents itself as a powerful, modern recording system for the production of music digital content.


The StudioLive AR16c audio interface enables high-resolution mixing and recording at up to 96 kHz. Record any of the 16 inputs as well as the master mix for even more recording options. Play back up to four streams for monitoring pre-recorded tracks - plus one click. Twelve highly acclaimed XMAX mic preamps provide the gain reserves needed to convey even the most subtle details without adding noise. The analogue mixer front end allows you to intuitively connect your devices to your computer and create monitor mixes quickly and intuitively. With a USB-C compatible connection, your StudioLive AR16c can be used as an audio interface for almost any computer.


The unique Super Channel can handle four stereo sources simultaneously, making it easy to integrate consumer devices into your studio workflow. Connect a turntable to the RCA inputs, use the stereo input to connect your smartphone or skip the cable and connect via Bluetooth wireless technology instead. You can also switch between a stereo playback stream from your computer and playback from the built-in SD recorder, making band rehearsal a breeze.


Thanks to the direct integration of the StudioLive AR16c audio interface and analogue mixer into current recording applications, nothing stands in the way of your creativity. PreSonus Capture Live recording software lets you record multi-track live performances with a single click. Create complete studio productions with our award-winning DAW Studio One® Artist. With two professional recording applications included with the StudioLive AR16c, you can start recording right out of the box.

Properties

Aux ways: 2
Effect processor: Yes
Inferface function: Yes
Instrument inputs: 0
Line Ins: 16
Microphone inputs: 12
Sub Groups: 0
