Nux C5RC

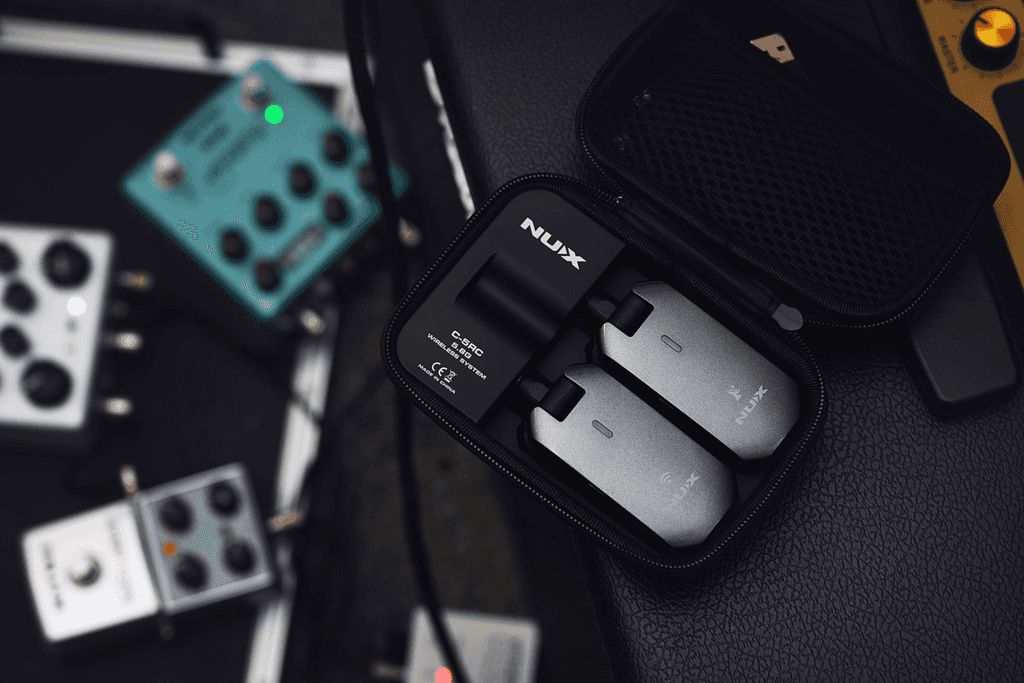

Wireless system for the pedalboard: compact transmitter + pedal receiver

WiFi 2.4 GHz

Integrated tuner or boost functions that can be activated via the receiver's footswitch

Integrated effects loop on the pedalboard receiver for buffered pedal signal paths

Balanced XLR D.I. output on the receiver for direct connection to mixing consoles/audio interfaces

Designed for electric guitars, electric basses, electro-acoustic guitars, electric ukuleles, etc.

Optional cable tone function for the warm sound of a jack cable

Automatic pairing of transmitter and receiver in just a few secondsWireless system for the pedalboard: compact transmitter + pedal receiver

Integrated tuner or boost functions that can be activated via the receiver's footswitch

Balanced XLR D.I. output on the receiver for direct connection to mixing consoles/audio interfaces

Designed for electric guitars, electric basses, electro-acoustic guitars, electric ukuleles, etc.

Optional cable tone function for the warm sound of a jack cable

Automatic pairing of transmitter and receiver in just a few seconds

Transmitter can be charged by placing it on the receiver screen (or via USB-C)

Tuning modes: Chromatic, standard guitar, guitar with compensation, bass

Tuning range: F#0 to C8

Tuning accuracy: +/-1 hundredth of a semitone

2.4 GHz high-definition 24 bit / 48 kHz digital audio transmission

Frequency response: 20 Hz - 20 kHz

Booster: 0 dB - 12 dB

Output level setting range: Mute, -64 to 0 dB

Dynamic range: 122 dB

Latency: 2.5 ms (in low-latency mode for short ranges) to 8.7 ms (in stable mode for short ranges)

Indoor range: 30 to 60 m (depending on the environment)

Outdoor range: 20 to 50 m (depending on the environment)

Transmitter battery: Li-Po 3.7 V / 500 mAh

Battery life: up to 6.5 hours

Receiver power supply: 7 to 12 V / 500 mA mini (9V adapter included)

Audio cable: 6.35 mm jack to 3.5 mm mini jack (shielded) included in the scope of delivery

USB-C cable included in the scope of delivery (for charging the transmitter / updating the firmware)

Weight and dimensions of the transmitter: 63 g, 72.5 x 49.3 x 23 mm

Weight and dimensions of the receiver: 500 g, 122 x 95 x 60 mm
