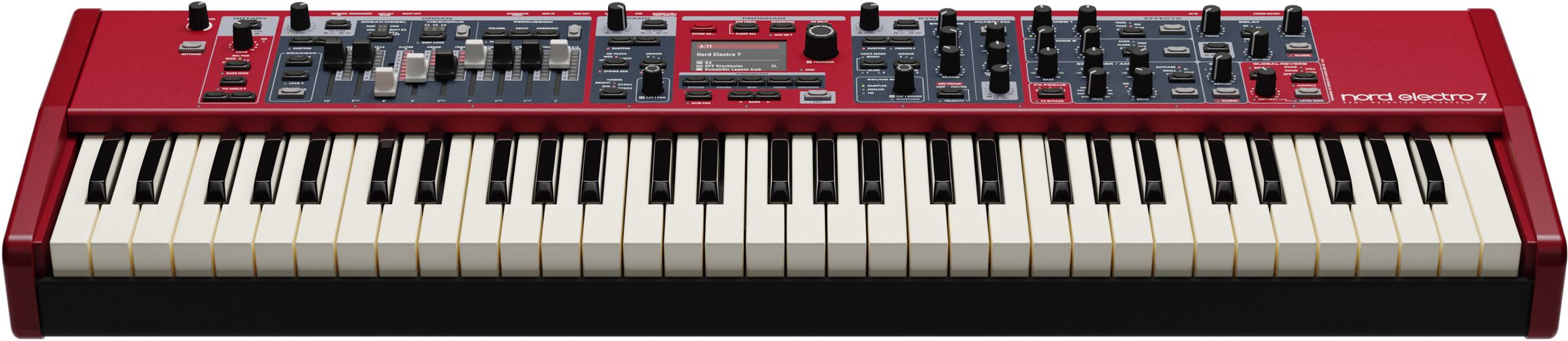

North Electro 7 61

61-key keyboard with semi-weighted waterfall keys

New control panel design and new large colour display

Organ, piano and synthesiser sounds

Physical drawbars

Seamless transitions

Split point crossfades

20 banks with 25 programmes - 500 memory locations

Live mode: 5 live programmes

Selectable split point with LED display (9 positions)

Organising for programmes

Global transposition: +/- 6 semitones

Global fine tuning: +/- 50 cent

Programme transposition: +/- 6 semitones

MIDI via USB

External keyboard function (Aux KB)

Expression pedal assignment, enables control of the synth filter and many effect parameters via pedal

Organ section

B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe model with full polyphony

B3 percussion control with poly option

Vibrato/chorus with B3 Deep mode

Adjustable percussion level and percussion decay

3 tonewheel modes

2 organ manual presets and live drawbars

Physical drawbars with LED indicators

Holder for half-moon switch on Electro 7 61/73

Piano section

Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc/Mallet

Pianos can be added, replaced and organised with the Nord Sound Manager.

String resonance

Timbre settings - customised for acoustic, electric and clavinet sounds

3 keyboard touch settings

Dynamic compression for an even sound level without changing the sound character

Unison with 3 intensity options

120-voice polyphony for sounds from the piano library.

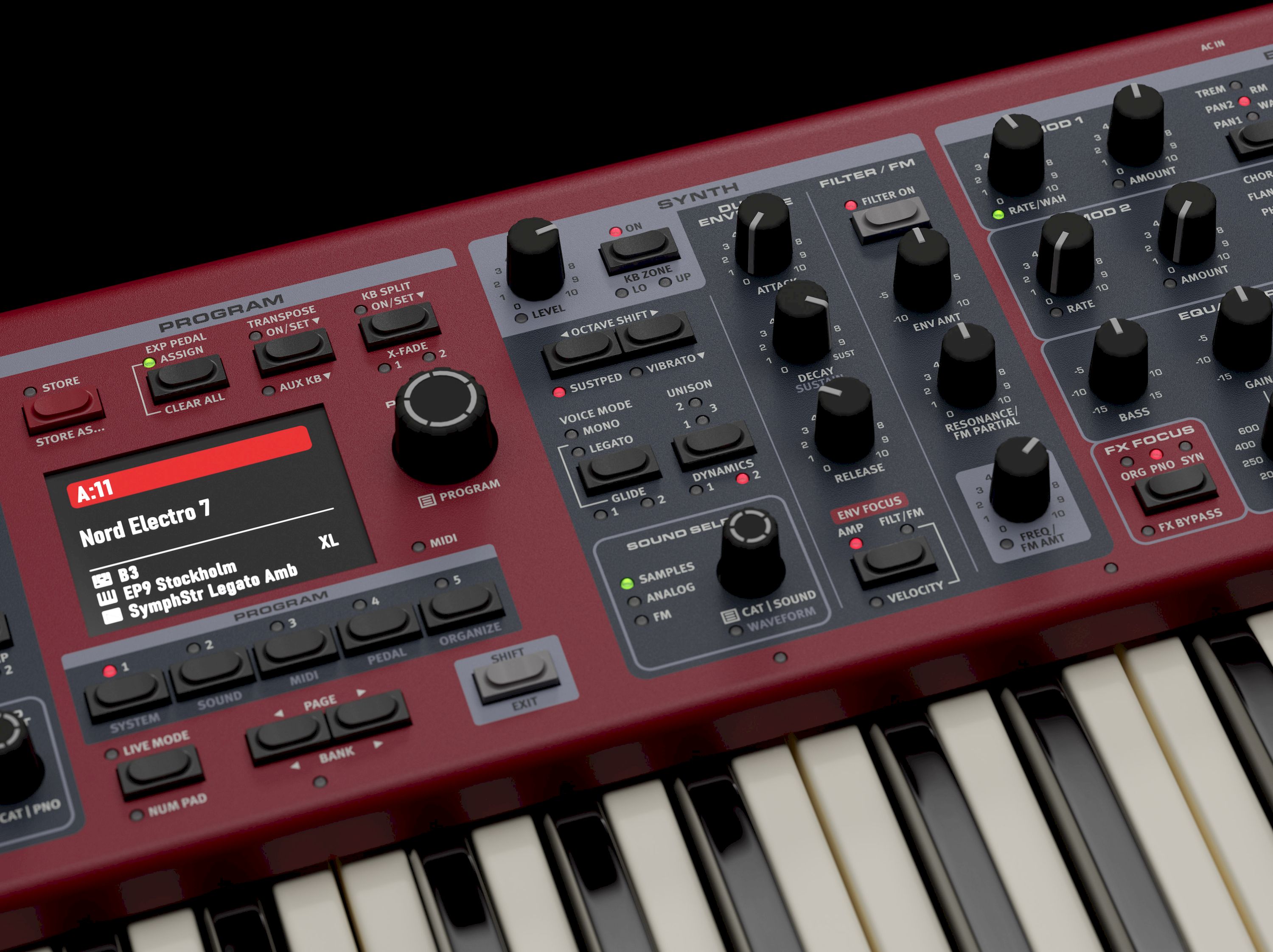

Synth section

Sample, analogue and FM synthesis

Samples can be added, replaced and organised with the Nord Sound Manager.

Preset library for analogue and FM sounds

Amp and filter/FM ADR/ASR envelopes

Velocity and Amount controls for filter/FM envelope

Low-pass filter with cutoff and resonance controls for analogue and sample sounds

Amount and partial controls for FM

Mono, legato and glide options

Unison with 3 Amount options

3 dynamic/amp velocity options

Vibrato with adjustable speed, amount and delay

Synth vibrato button for real-time control

Over 30-voice polyphony

Rotary Speaker

Rotary speaker emulation from Nord Organ 3

Options for narrow, wide and XY microphone position

Option for bass wide (stereo)

Special tube drive control

Fixed angle option for stop position (user adjustable)

Effects section

Special effects for organ, piano and synth

FX Focus with FX Bypass option

The expression pedal can be assigned to most effect parameters.

Mod 1

Pan1 (soft), Pan2 (hard), tremolo, wah and ring modulator

Special controls for Rate and Amount

Mod 2

Phaser, flanger, chorus, vibe and ensemble

"Wide" option for stereo width

Special controls for rate and amount

Equaliser/amp simulations

Twin, Small, Suitcase, JC and Brit amp models

Drive

Three-band EQ with tunable centre frequency. +/- 15 dB gain/attenuation

Delay

Tempo with tap function

Feedback and dry/wet control

Low-pass, high-pass and band-pass feedback filter options

Ping Pong with 3 Amount options

Analogue mode

Global mode

Compressor

Amount control and global option

Global Reverb

Spring, room, stage, reverb and cathedral reverb types

Spring Reverb placed before Rotary Speaker

Chorale option for all reverb types

Bright/Dark options

Dry/Wet control with Layer Send mode for individual control of the reverb level per section

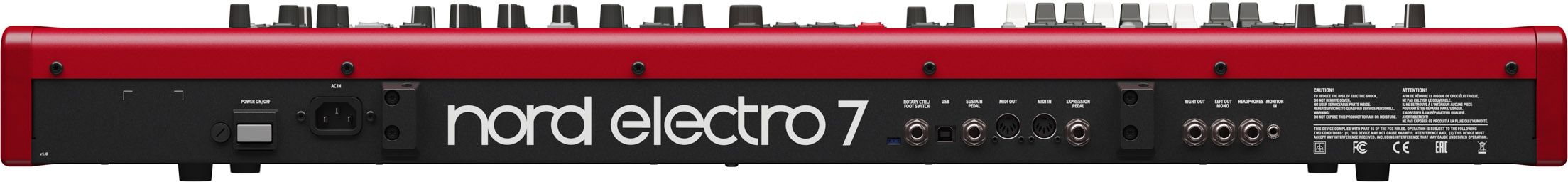

Connections

2 audio outputs L & R - ¼", 6.35 mm jack sockets, unbalanced

1 monitor input - 1/8", 3.5 mm stereo jack socket

1 headphone output - ¼", 6.35 mm stereo jack socket

1 expression pedal input - ¼", 6.35 mm TRS stereo jack socket

Sustain pedal - 6.35 mm jack plug. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch pedals.

Knob/foot switch - 6.35 mm jack plug.

Use a momentary pedal or a switch pedal.

MIDI input - 5-pin DIN connectors

MIDI output - 5-pin DIN connectors

USB - Type B connector for USB MIDI, software updates and sound transfer

Power cable with IEC C14 plug

Accessories supplied

Operating instructions

Power cable
