LD Systems ZONE 423
€315.00*
Prices incl. VAT plus shipping costs
Weitere Informationen finden sie hier.
Delivery in 3-6 days
Number of zones: 2 (master, zone)
Type: Stereo
Installation height: 2U
Total input channels: 6 (2x Mic, 1x Line/Aux, 2x Line/Phono, 1x Line/FOH)
Frequency response: 20 - 40000Hz
Microphone channels: 2 (with phantom power 12 V)
Microphone channel connections: 6.3 mm jack (balanced), XLR
Microphone channel controls: 1 x talkover, 1 x talkover level, 1 x EQ Low, On / Off, 1 x EQ Hi, Gain
Microphone channel indicators: LED (ON)
Input impedance microphone channels: 4kOhm
Input sensitivity microphone channels: 8mV
THD microphone channels: 0.07%
Line channels: 4 (Input 1: USB/Line, Input 2 + 3: Line/Phono/CD, Input 4: Line/FOH)
Line input connections: Input 1: 2x RCA + 3.5 mm stereo jack + USB, Input 4: 4x RCA + 2x 6.3 mm jack, Input 2 + 3: 4x RCA
Line channel controls: Source, Enable FOH, Level, Gain, Cue
Line channel indicators: LED (signal/0 dB), LED (cue)
Input impedance line channels: 6kOhm, (phono) 60kOhm
Input sensitivity line channels: 1V, (phono) 10mV
THD line channels: 0.03%, (phono) 0.05%
Input sensitivity AUX/Line: 3V

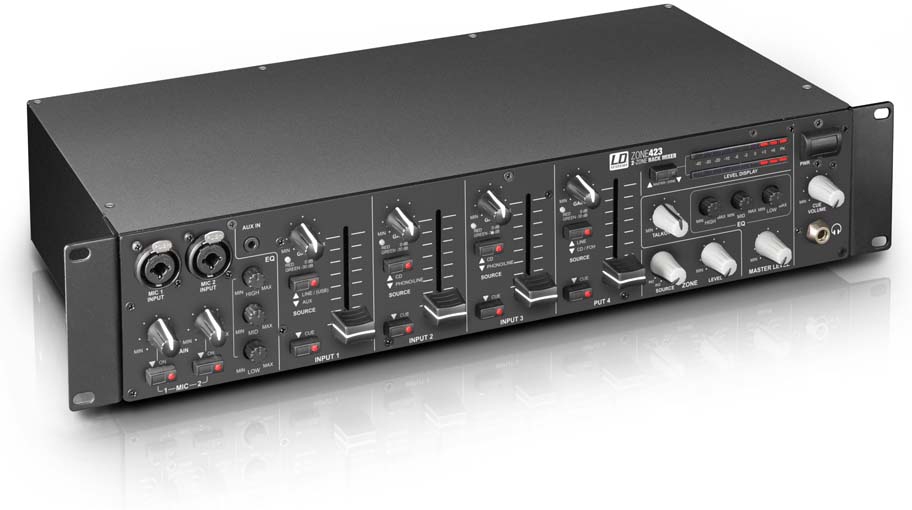

In addition to the two balanced microphone inputs with adjustable gain and talkover level, 12V phantom power and shared 3-band EQ, the ZONE 423 offers line, phono and aux stereo connections in RCA format, an FOH input with balanced stereo jacks and one USB and 3.5 mm mini-jack connection each. The USB port serves as a stereo input and output and allows the mixer to be used as an external audio interface. The four input channels have individual gain controls with signal and peak value display, 45 mm faders for volume adjustment and cue buttons.

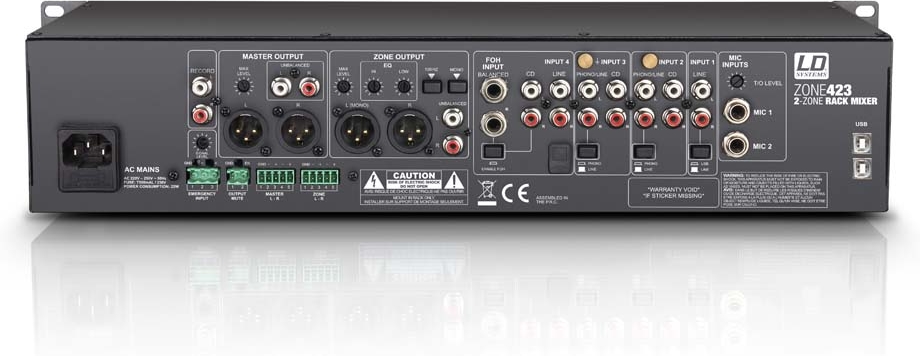

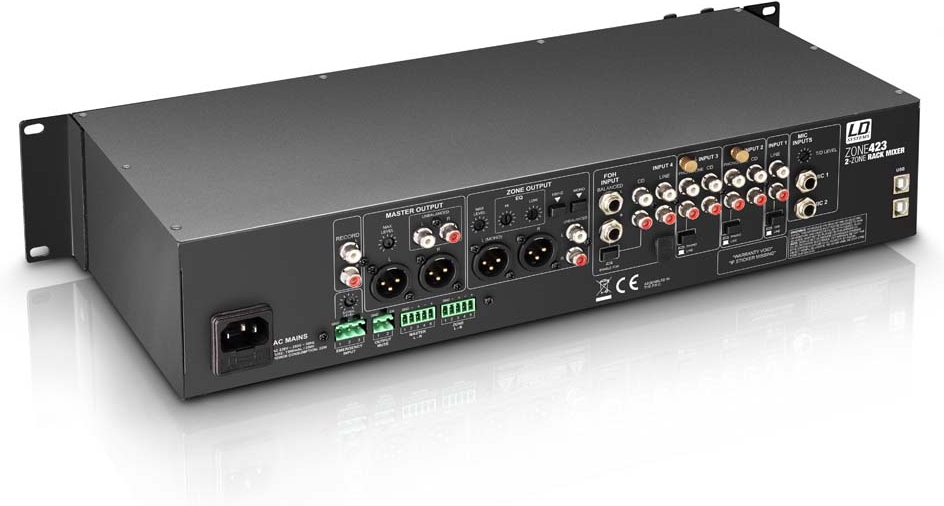

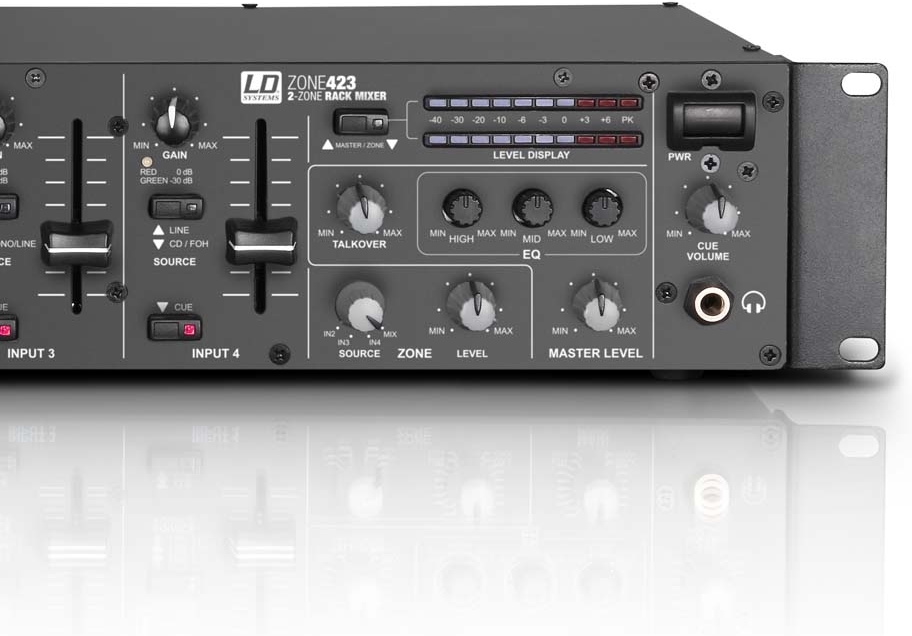

The master and zone sections each have their own tone control, balanced XLR and unbalanced RCA outputs, the master output also has terminal block connections and the zone output has a mono sum button and 100 Hz high-pass filter. The stereo level display can be assigned to master or zone, and the maximum output level can be preset for both on the rear of the mixer. In addition to an adjustable headphone connection for pre-listening, the ZONE 423 also has a recording output.
Properties
| Aux ways: | 1 |
|---|---|
| Effect processor: | No |
| Inferface function: | No |
| Instrument inputs: | 0 |
| Line Ins: | 3 |
| Microphone inputs: | 2 |
| Sub Groups: | 1 |
