Article-No 1044480

IMG Stageline DIB-102

( 1 )

€53.35*

Prices incl. VAT plus shipping costs

Finanzieren Sie bequem mit Consors Finanz.
Weitere Informationen finden sie hier.

Cheaper elsewhere?

In stock

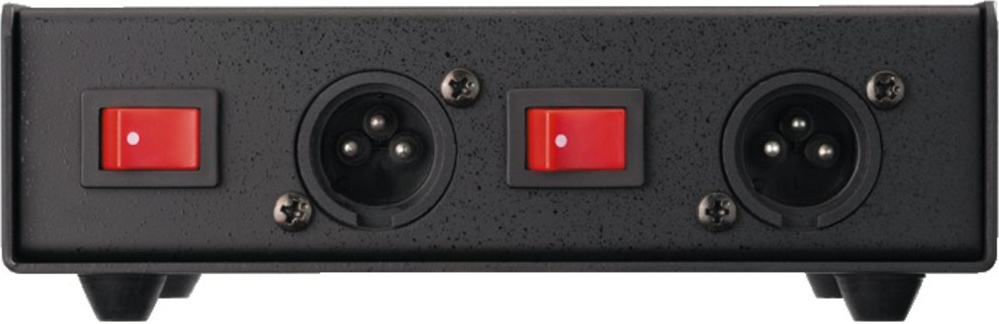

IMG Stageline DIB-102

3-way attenuation switch (0/-20/-40dB) per channel

1 ground lift switch per channel

1 instrument loop-through output per channel

Broadband balancing transformers

Sturdy metal housing

Technical specifications:

Frequency range: 15-30000Hz, +/-0dB

Inputs: 50kO

Outputs: 600O, XLR 50kO, jack

Transmission ratio: 10:1

Permissible operating temperature: 0-40 °C

Dimensions: 148x50x130mm

Weight: 850g

Inputs: 2 x 6.3 mm jack, asym.

Outputs: 2 x 6.3 mm jack, asym., par. out 2 x XLR, sym.

IMG Stage Line

Contact:

MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen

E-Mail: info@monacor.de
Web: http://www.monacor.de
