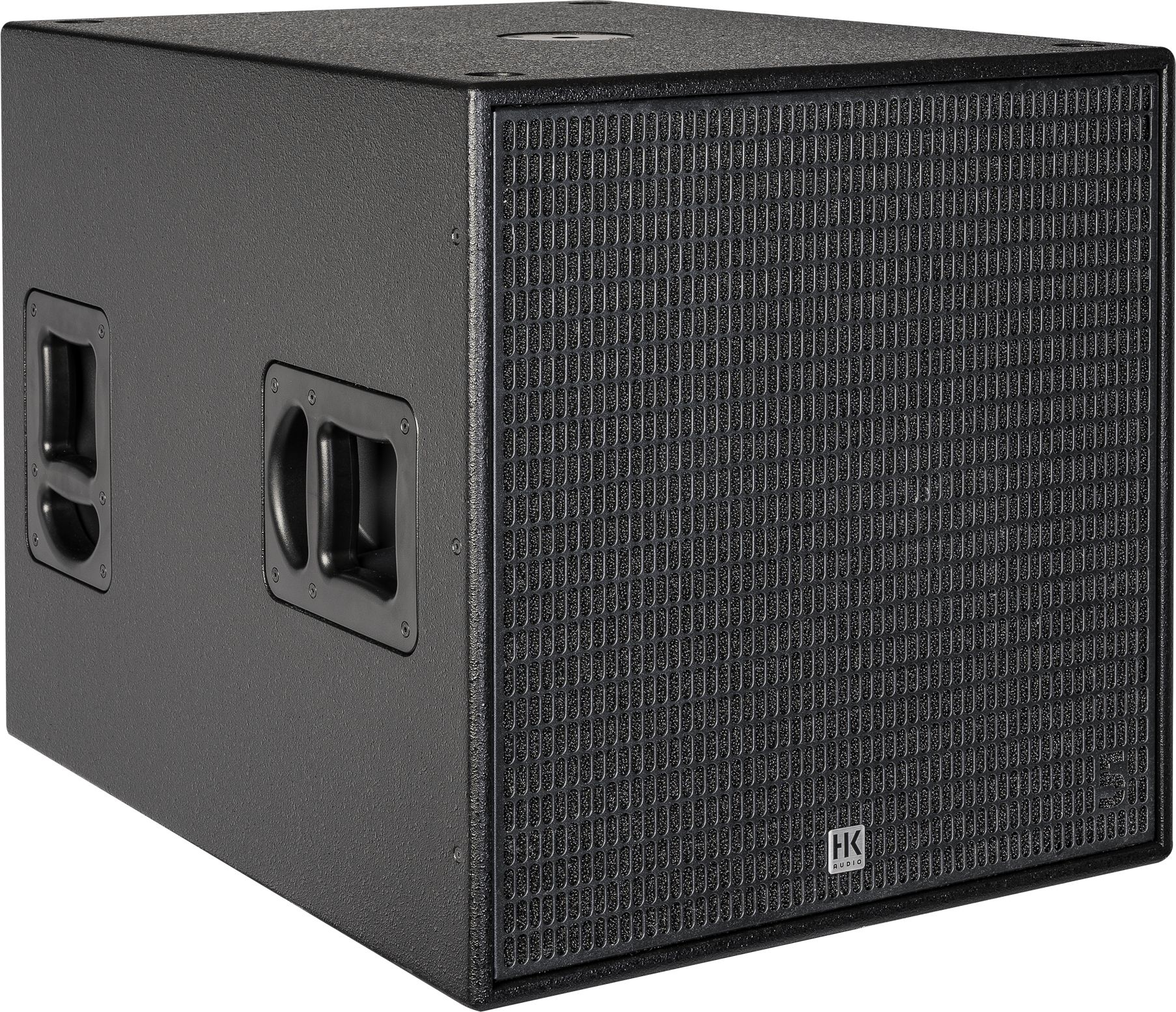

HK Audio Linear 5 MKII 118 Sub HPA
€2,698.00
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Delivery in 7-14 days
Max. SPL @ 10 % THD: 130 dB halfspace (40 - 100 Hz averaged)
Max. SPL peak @ 10 % THD: 131 dB halfspace
Frequency response +/-3 dB: 36 Hz - X-Over
Frequency response -10 dB: 33 Hz - X-Over
Power amplifier output (RMS/peak): 1,500/3000 watts
Power amplifier type: Class D
Bass speaker: 1x 18", 4" voice coil
Maximum input level: 20 dBu

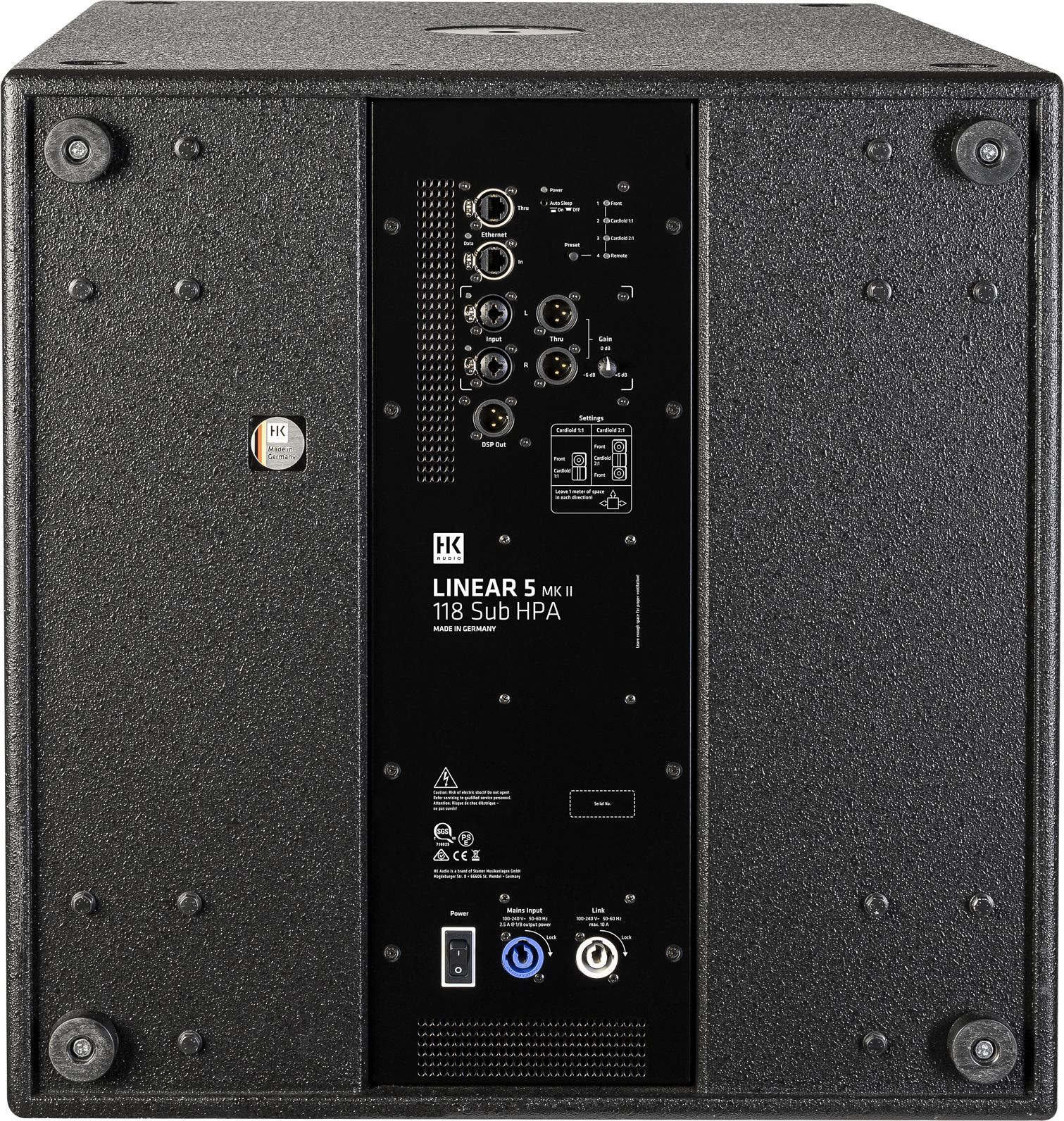

Analogue inputs: 2x XLR/jack combination balanced
Analogue Thru: 2x XLR balanced
DSP Out: 1x XLR balanced

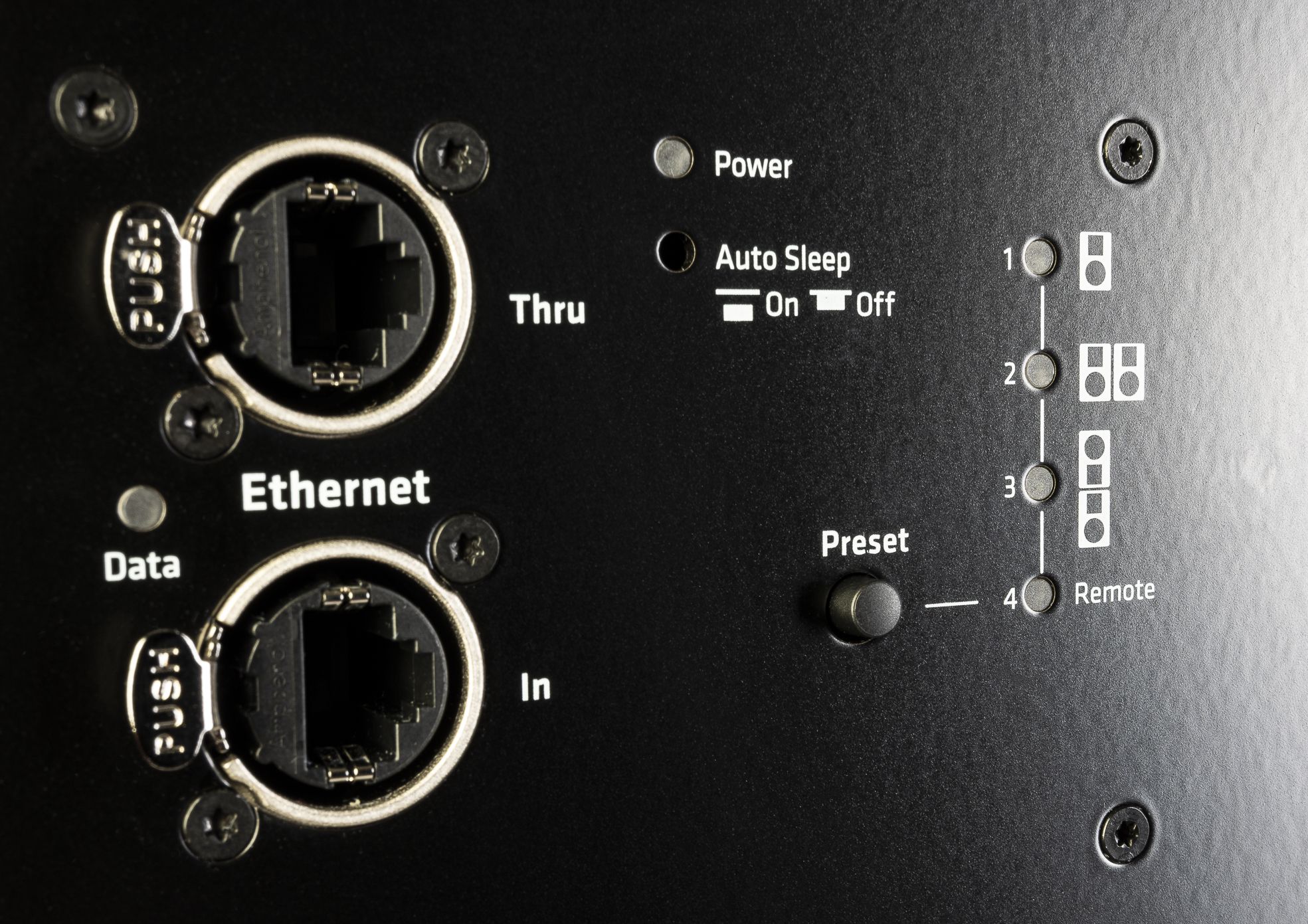

Network connection: Ethercon RJ45, 1x In, 1x Thru
Filter presets: Front, Cardioid 1:1 vertical, Cardioid 2:1 vertical, Remote
Remote software: DSP CONTROL (Windows, Mac OS)
DSP functions: Fully parametric 10-band EQ with variable filter
Characteristics, low-pass filter, polarity, level, delay, limiter, mute
Sampling rate: 48 kHz
System latency: <=2.6 ms
Mains connection: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100-240 V
Mains voltage: 2.5 A / 100-240 V Rated power consumption according to EN 62368-1

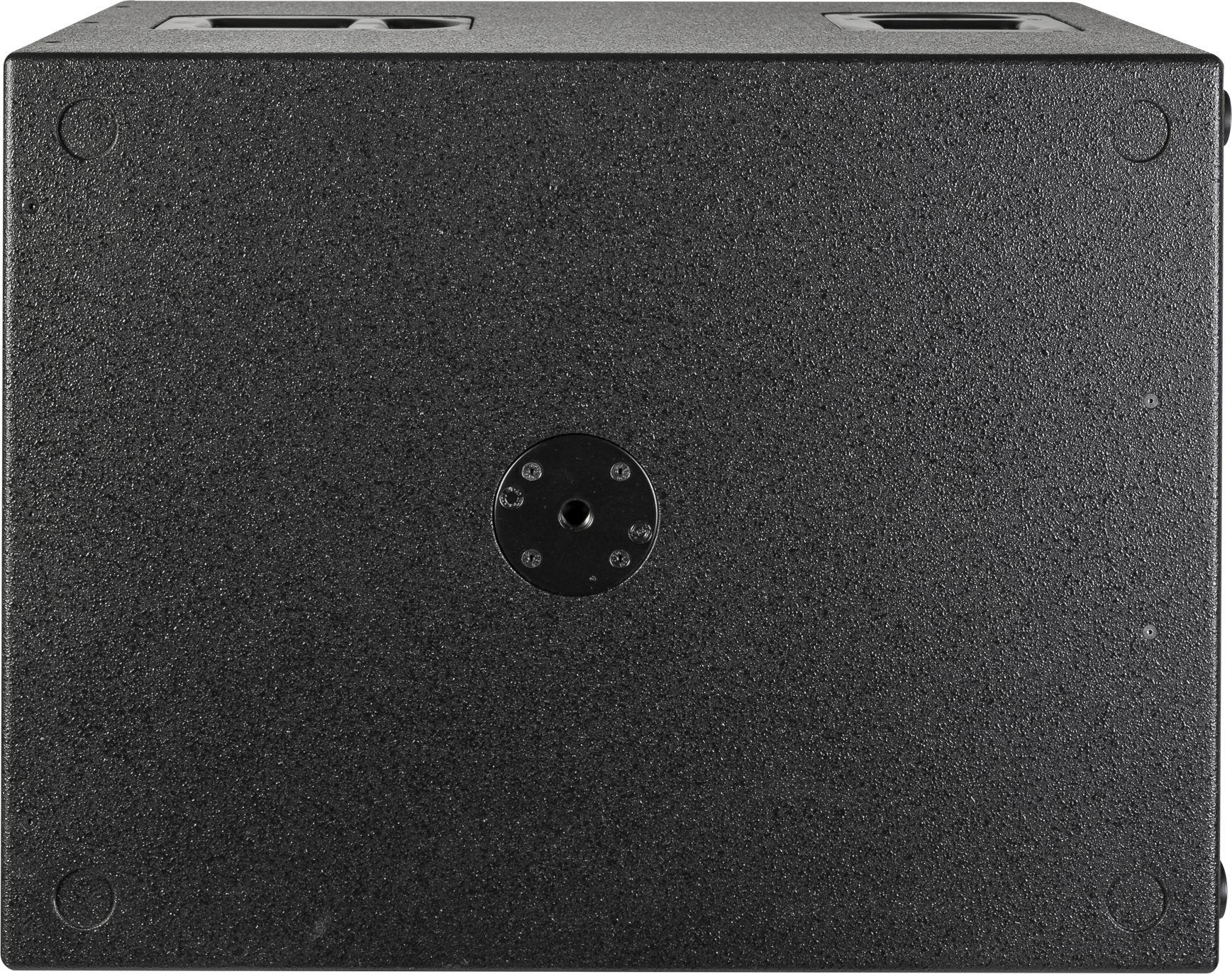

Stand flange: 1x M20

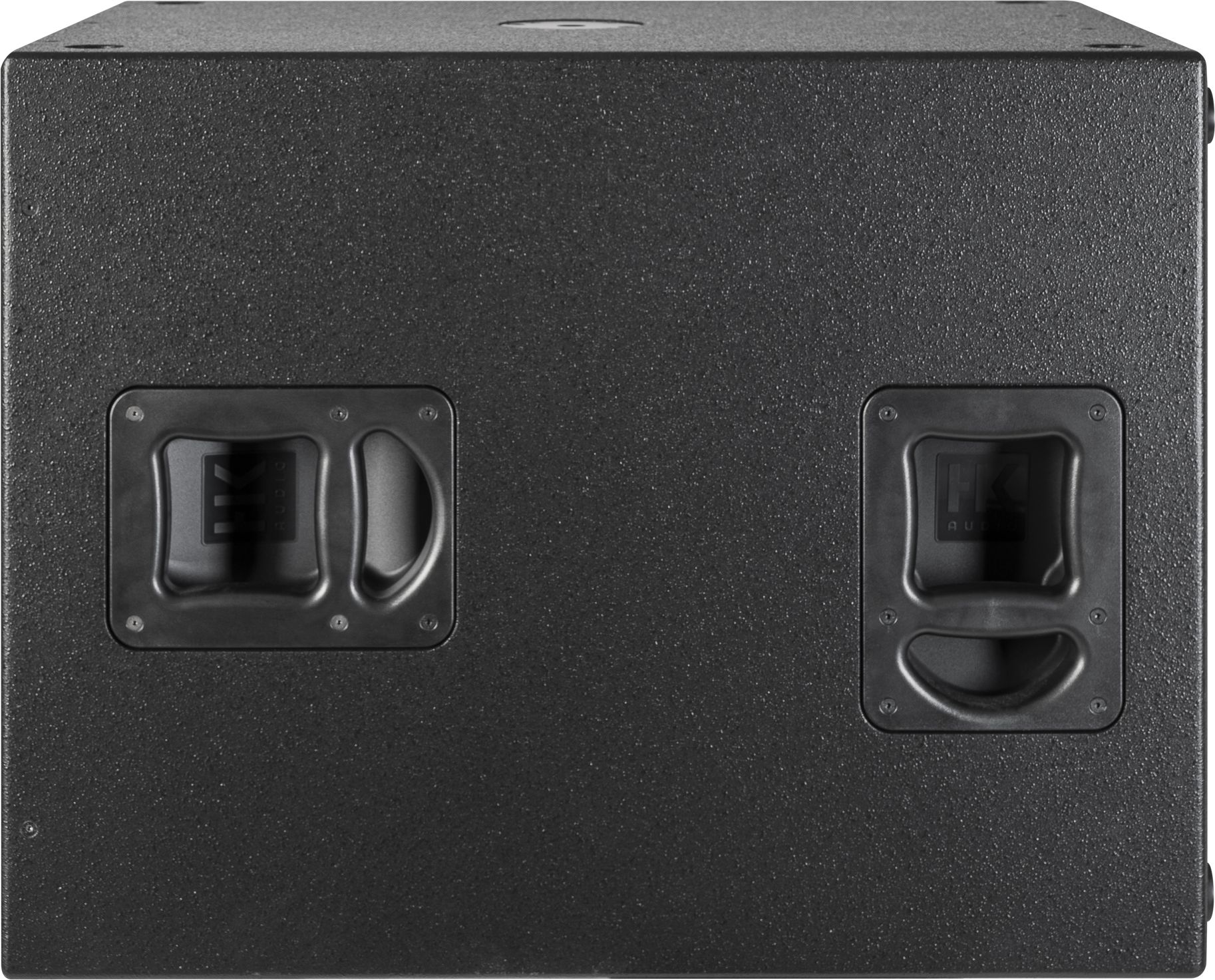

Handles: 4x HK Audio MultiGrip
Housing: Birch multiplex
Surface: Acrylic lacquer, black
Front grille: 2 mm metal grille with black acoustic foam
Dimensions (WxHxD): 61 x 61 x 79 cm
Weight: 53.4 kg
incl. RCS rain cover set

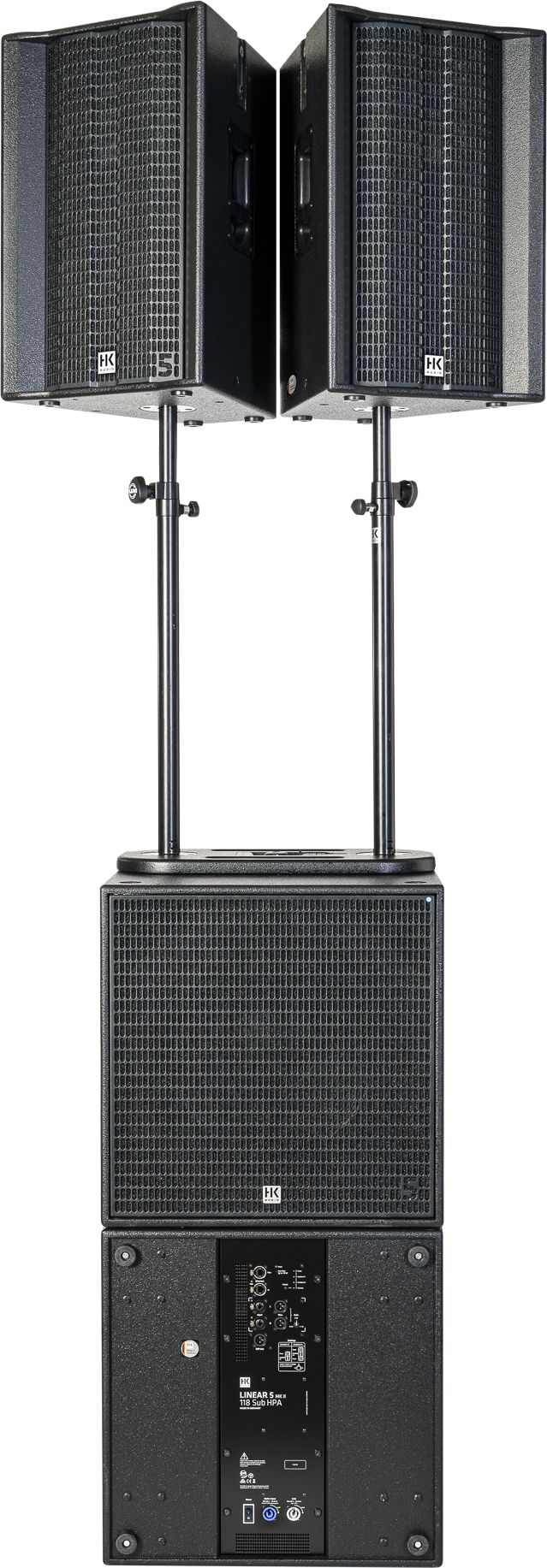

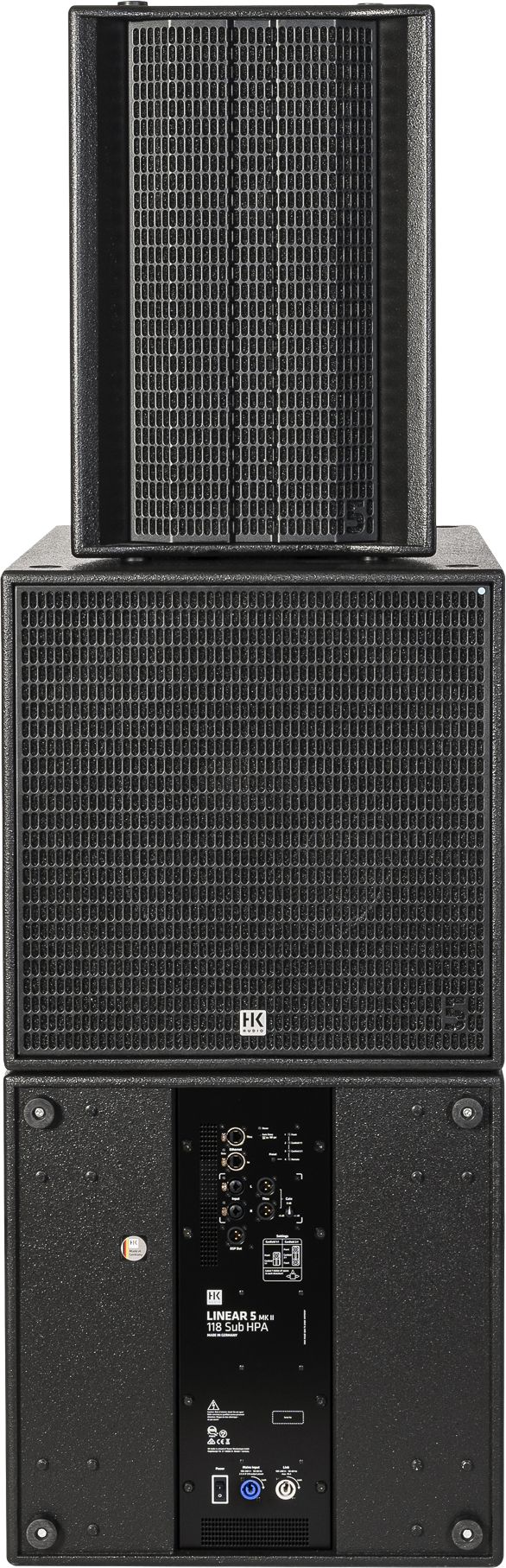

As the most powerful subwoofer in the LINEAR 5 MK II series, the Sub HPA offers significantly more energy in the low-end range than any other subwoofer in the series with its rigid, high-power 18-inch woofer and powerful power amplifier. This enables particularly precise and powerful bass reproduction with extremely compact dimensions. It is therefore not only the perfect foundation for the LINEAR 5 MK II 308 LTA mid/high unit, but also a powerful low-end extension for LINEAR 5 MK II systems.
The high-performance DSP with FIR filter can be controlled remotely via the network and, together with the free HK Audio DSP CONTROL software, allows extensive processing options and precise sound tuning. Cardioid presets can be selected directly on the speaker and enable 1:1 and 2:1 cardioid setups in no time at all. PowerCon connections with PowerCon Link simplify cabling and save cable material.
Properties
| Power in watts: | 1500 W RMS |
|---|---|
| Woofer in inches: | 18 |
