Eurolite QuickDMX USB radio transmitter/receiver

Article-No 1144496

Eurolite QuickDMX USB radio transmitter/receiver

€45.00*

Prices incl. VAT plus shipping costs

Finanzieren Sie bequem mit Consors Finanz.
Weitere Informationen finden sie hier.

Cheaper elsewhere?

Delivery in 3-6 days

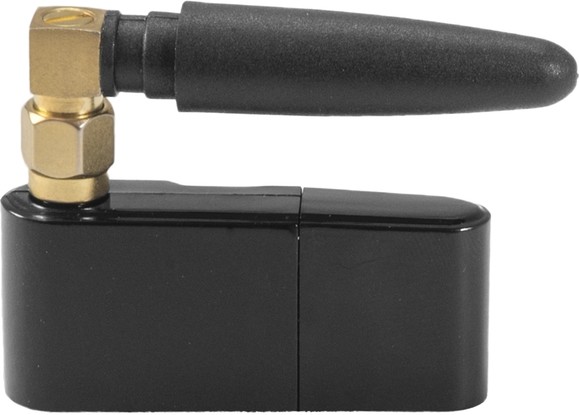

Eurolite QuickDMX USB radio transmitter/receiver

Wireless mini DMX transceiver 2.4 GHz, phantom-powered

Compact DMX radio transmitter/receiver in miniature format for wireless transmission of up to 512 DMX channels

User-friendly USB plug with swivelling antenna

Wireless DMX eliminates the need for complex cabling between the DMX controller and the DMX-controlled devices in lighting systems

GFSK modulation with 78 channels means interference-free operation, even alongside other QuickDMX receivers and other wireless devices in the 2.4 GHz band (such as WLAN and Bluetooth)

Range up to 400 m (with visual contact)

Simultaneous operation of up to 6 transmitters, allowing control of 6 DMX512 universes (3072 DMX channels)

Plug & Play: Quick and easy commissioning with a button for connecting/disconnecting QuickDMX receivers

LED function display

Transceiver, can be used as transmitter and receiver

Requires 5 V phantom power for operation

2.4 GHz ISM band - registration and fee-free worldwide

Control: QuickDMX via USB (optional); QuickDMX built-in; DMX

Technical details:

Power supply: 5 V DC

Protection class: IP20

Power connection: Power supply USB A (M) add-on version

DMX channels: Input 512Output 512

DMX output: 1 x USB, type A

Control: QuickDMX via USB (optional), QuickDMX built-in, DMX

Colour: Black

Modulation: GFSK

Parallel operation: max. 6 transmitters

Carrier frequency: 2.4 GHz

Width: 8.6 cm

Height: 1.1 cm

Depth: 4 cm

Weight: 0.01 kg

Eurolite

Contact:

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn

E-Mail: info@steinigke.de
Web: https://www.steinigke.de/

Eurolite is an established manufacturer of lighting and effects technology, specialising in providing innovative solutions for the event and entertainment industry. Based in Germany, Eurolite offers a wide range of products including spotlights, LED lighting systems, fog machines and control technology suitable for both professional and semi-professional applications. The company places great emphasis on quality and user-friendliness and combines modern technology with creative designs to produce impressive lighting effects. Eurolite has made a name for itself by offering reliable and cost-effective products that are appreciated by DJs, bands, event organisers and theatre production alike. Through continuous innovation, Eurolite remains a major player in the field of lighting technology, helping to make events of all kinds shine.
