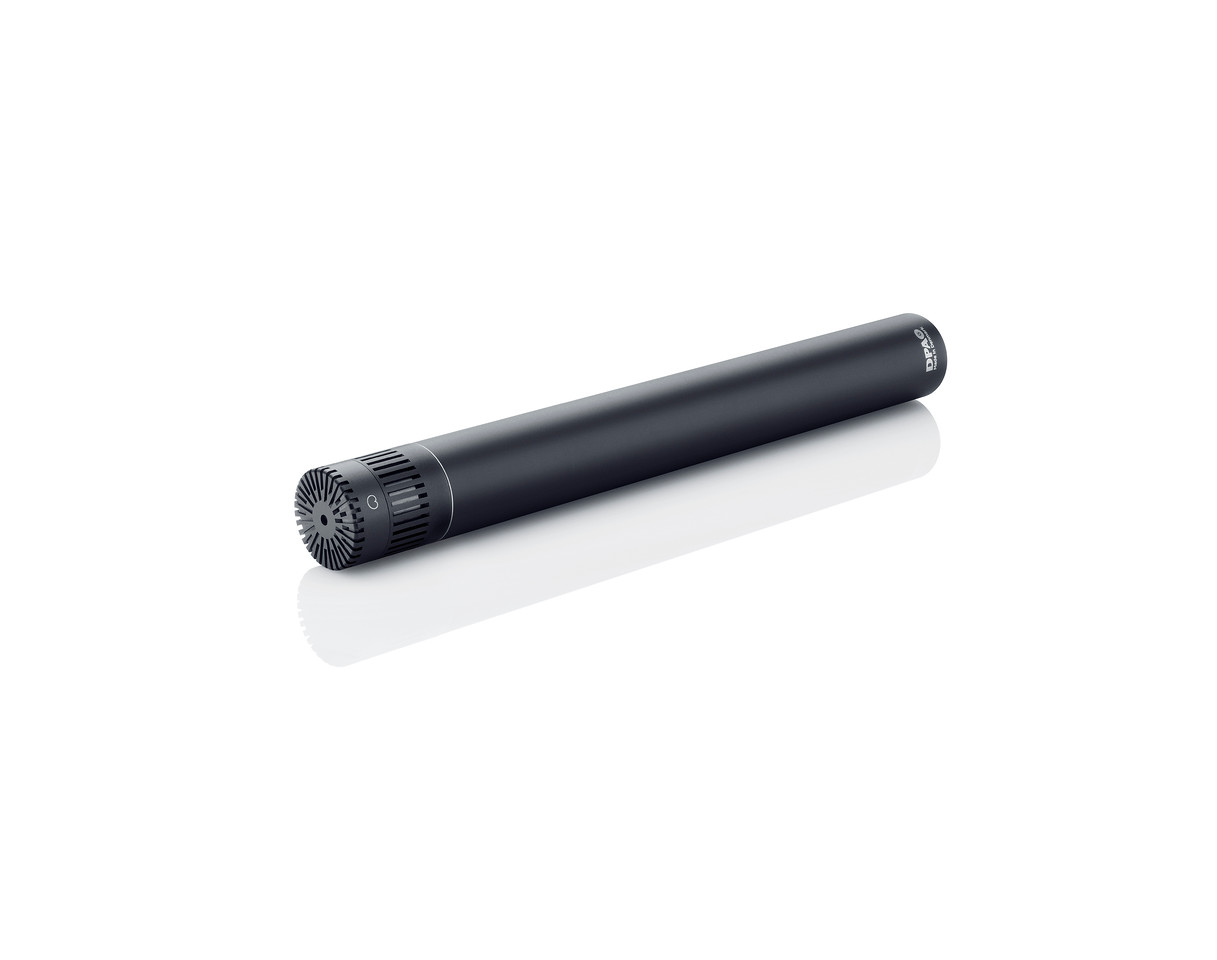

DPA ST4011A
€3,749.00
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
In stock
Directional pattern: Kidney
Operating principle: Pressure gradient
Capsule type: Pre-polarised condenser
Frequency response: 20 Hz - 20 kHz
Frequency range +/-2 dB at 30 cm (11.8 in): 40 Hz - 20 kHz
Nominal sensitivity +/-2 dB at 1 kHz: 10 mV / Pa; -40 dB re. 1 V / Pa
Equivalent noise level, A-weighted: Typ. 18 dB (A) re. 20 uPa (max. 20 dB (A))
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (correct with the attenuator set to 0 dB or -20 dB)
Distortion, THD <1%: 136 dB SPL RMS, 139 dB SPL peak
Dynamic range: Typ. 121 dB
Max. Sound pressure, THD 10%: 159 dB sound pressure peak
Switchable attenuator, filter etc.: 0 dB / -20 dB
Nominal output impedance: 200 Ω
Minimum load impedance: 2 kΩ
Cable drive capacity: 100 m (328 ft)
Output balance principle: Impedance equalisation with Active Drive
Common mode rejection ratio (CMRR): > 60 dB
Power supply (for full power): P48 (phantom power)
Current consumption: 2.8 mA
Connection: XLR-3M. Pin 1: Shield, Pin 2: Signal + phase, Pin 3: - phase
Colour: Matt black
Weight: 158 g (5.6 oz)
Microphone diameter: 19 mm
Capsule diameter: 19 mm
Microphone length: 170 mm (6.7 in)
Maximum output voltage, RMS: > 5 V.
Polarity: + V on pin 2 for positive sound pressure
Temperature range: -40 ° C to 45 ° C (-40 ° F to 113 ° F)
Relative humidity (RH): Up to 90%
Matching tolerance (frequency response and sensitivity): ± 1 dB
Phase deviation for kit: <10°
The main features of the 4011 cardioid microphone are its directionality and attention to detail. With this microphone, everything simply sounds like the original. The first-order cardioid characteristic ensures excellent separation of the sound sources.
It is just as suitable for close-up recordings of acoustic guitar, piano, overheads, percussion, wind instruments and vocals as it is for support miking of symphony orchestras. It is designed for incredibly high sound levels and the 20 dB pad switch in the centre of the XLR connector attenuates the microphone output.
A linear on-axis frequency response and excellent phase response ensure completely faithful sound reproduction. The off-axis frequency response is similarly even, so that any interference is faithfully reproduced, albeit attenuated in accordance with the first-order cardioid characteristic.
This condenser microphone is highly regarded worldwide in recording studios and live performances as an exceptional microphone. A careful selection of state-of-the-art components ensures optimum neutrality, accuracy and extremely low distortion.
Properties
| Characteristic: | Cardioid |
|---|---|
| Directional microphone: | No |
| Incl. Clamp: | Yes |
| Low cut: | No |
| Pad: | No |
| Stereo pair: | Yes |
| Type of construction: | Capacitor |
