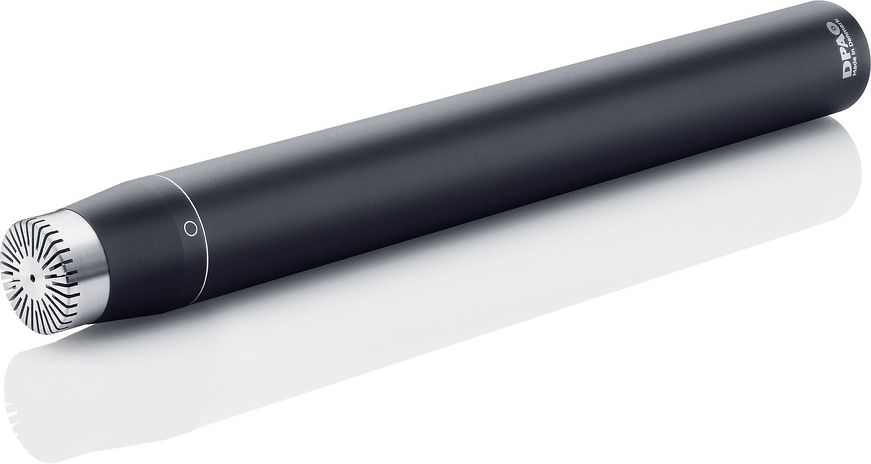

DPA ST4006A
€4,749.00
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Weitere Informationen finden sie hier.
Delivery on request
Directional pattern: Omnidirectional
Operating principle: Pressure
Capsule type: Pre-polarised condenser
Frequency response: 10 Hz - 20 kHz
Effective frequency range +/-2 dB: 10 Hz - 20 kHz
Nominal sensitivity +/-2 dB at 250 Hz: 40 mV / Pa; -28 dB re. 1 V / Pa
Equivalent noise level, A-weighted: Typ. 15 dB (A) re. 20 uPa (max. 17 dB (A))
Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)
Distortion, THD <1%: 136 dB SPL RMS, 139 dB SPL peak
Dynamic range: Typ. 124 dB
Max. Sound pressure, THD 10%: 146 dB sound pressure peak
Switchable attenuator, filter etc.: 0 dB / -20 dB
Nominal output impedance: 200 Ω
Minimum load impedance: 2 kΩ
Cable drive capacity: 100 m (328 ft)
Output balance principle: Impedance equalisation with Active Drive
Common mode rejection ratio (CMRR): > 60 dB
Power supply (for full power): P48 (phantom power)
Current consumption: 2.8 mA
Connection: XLR-3M. Pin 1: Shield, Pin 2: Signal + phase, Pin 3: - phase
Colour: Matt black
Weight: 163 g
Microphone diameter: 16 - 19 mm (0.6 - 0.75 in)
Capsule diameter: 16 mm
Microphone length: 170 mm (6.7 in)
Maximum output voltage, RMS: 8.0 V.
Polarity: + V on pin 2 for positive sound pressure
Temperature range: -40 ° C to 45 ° C (-40 ° F to 113 ° F)
Relative humidity (RH): Up to 90%
Matching tolerance (frequency response and sensitivity): ± 0.5 dB
Phase deviation for kit: <5°
Properties
| Characteristic: | Ball |
|---|---|
| Directional microphone: | No |
| Incl. Clamp: | Yes |
| Low cut: | No |
| Pad: | No |
| Stereo pair: | Yes |
| Type of construction: | Capacitor |
