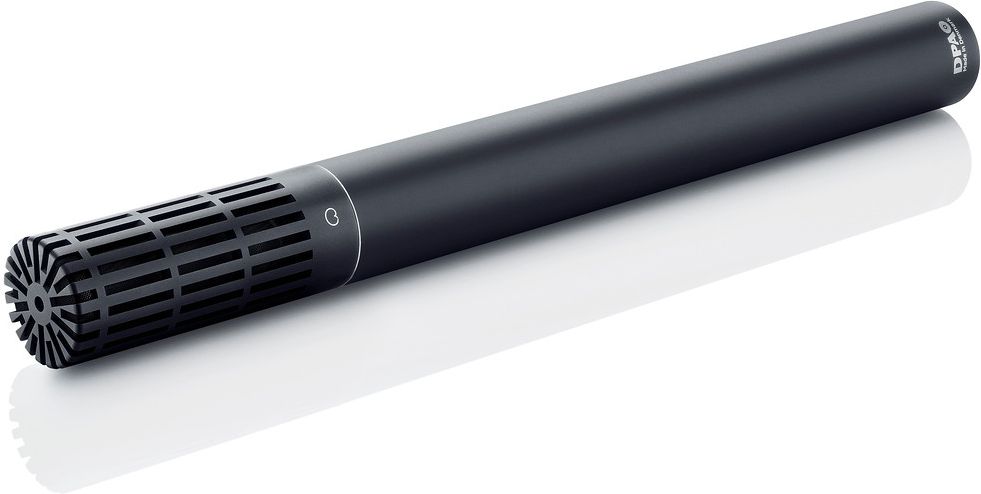

DPA ST2011A
€2,415.70
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Delivery on request
Directional pattern: Kidney
Operating principle: Pressure gradient with interference tube
Capsule type: Pre-polarised condenser, double diaphragm capsule
Frequency response: 20 Hz - 20 kHz
Frequency range +/- 2 dB at 30 cm (11.8 in): 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
Nominal sensitivity +/- 2 dB at 1 kHz: 10 mV / Pa; -40 dB re. 1 V / Pa
Equivalent noise level, A-weighted: Typ. 20 dB (A) re. 20 uPa (max. 23 dB (A))
Equivalent noise level, ITU-R BS.468-4: Typ. 33 dB (max. 36 dB)
Distortion, THD <1%: 134 dB SPL RMS, 137 dB SPL peak
Dynamic range: Typ. 117 dB
Max. Sound pressure, THD 10%: 153 dB sound pressure peak
Switchable attenuator, filter etc.: 0 dB / -20 dB
Nominal output impedance: 200
Minimum load impedance: 2 k
Cable drive capacity: 100 m (328 ft)
Output balance principle: Impedance equalisation with Active Drive
Common mode rejection ratio (CMRR): > 60 dB
Power supply (for full power): P48 (phantom power)
Current consumption: 2.8 mA
Connection: XLR-3M. Pin 1: Shield, Pin 2: Signal + phase, Pin 3: - phase
Colour: Matt black
Weight: 164 g (5.8 oz)
Microphone diameter: 19 mm
Microphone length: 198 mm (7.8 in)
Maximum output voltage, RMS: > 5 V.
Polarity: + V on pin 2 for positive sound pressure
Temperature range: -40 ° C to 45 ° C (-40 ° F to 113 ° F)
Relative humidity (RH): Up to 90%
Awarded for its excellent direct microphone pickup and high SPL handling. It has been optimised for use on stage and has already been used on many stages and for recording sessions. They offer an unprecedented blend of clarity, fullness and dynamic range. The off-axis frequency response is linear, but in a narrower frequency bandwidth. This provides a higher isolation level and a better gain-to-feedback ratio. The microphone level is easier to control.
The foam design inside the heavy-duty transport box enables quick and easy replacement of the microphone/accessory inlays.
Properties
| Characteristic: | Cardioid |
|---|---|
| Directional microphone: | No |
| Incl. Clamp: | Yes |
| Low cut: | No |
| Pad: | No |
| Stereo pair: | Yes |
| Type of construction: | Capacitor |
