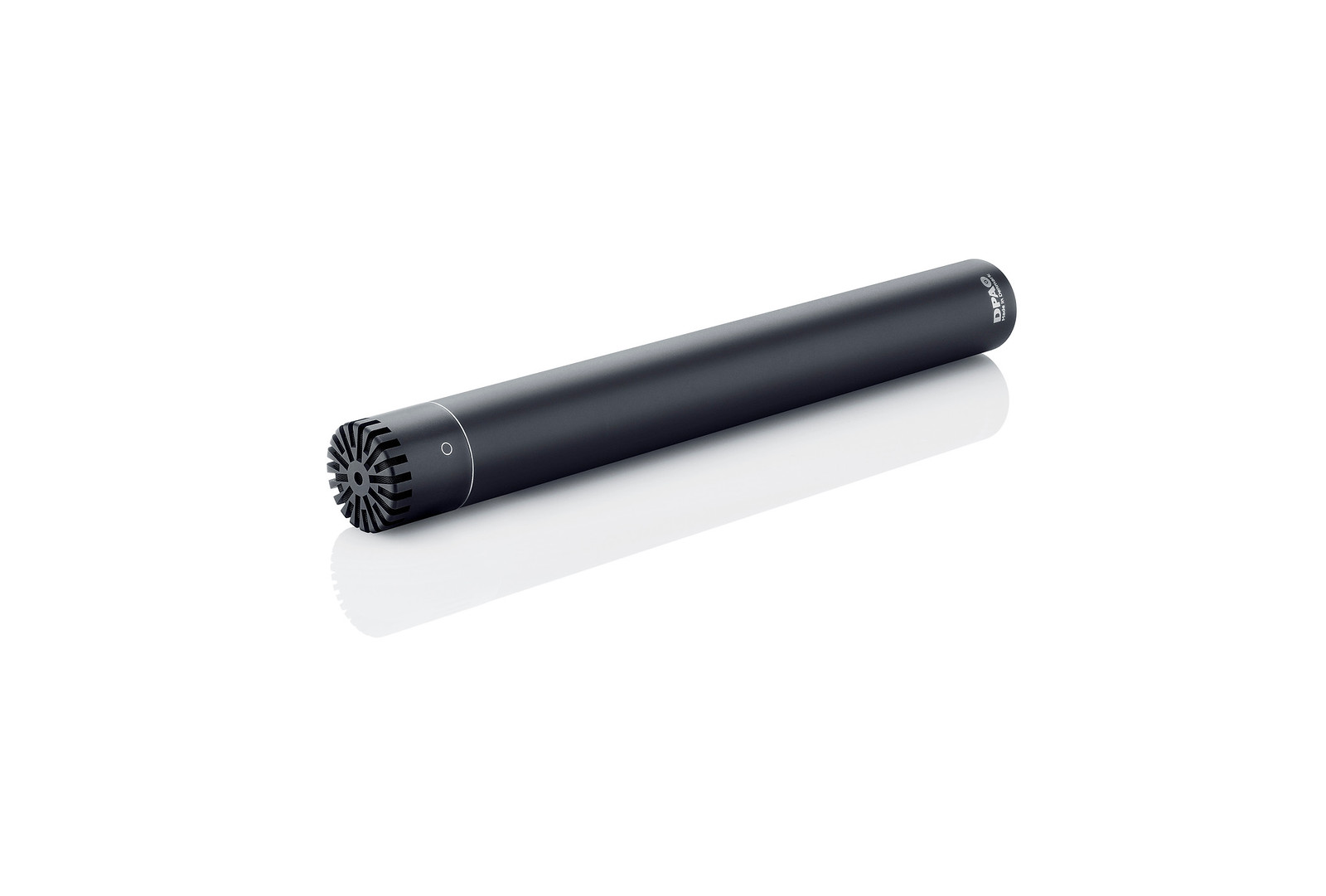

DPA ST2006A
€2,284.80
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Delivery on request
Functional principle: Omnidirectional2
Operating principle: Pressure
Capsule type: Pre-polarised condenser, double diaphragm capsule
Frequency response: 20 Hz - 20 kHz
Effective frequency range +/-2 dB: 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
Nominal sensitivity +/-2 dB at 1 kHz: 40 mV / Pa; -28 dB re. 1 V / Pa
Equivalent noise level, A-weighted: Typ. 16 dB (A) re. 20 uPa (max. 18 dB (A))
Equivalent noise level, ITU-R BS.468-4: Typ. 28 dB (max. 30 dB)
Distortion, THD <1%: 127 dB SPL RMS, 130 dB SPL peak
Dynamic range: Typ. 114 dB
Max. Sound pressure, THD 10%: 146 dB sound pressure peak
Switchable attenuator, filter etc.: 0 dB / -20 dB
Nominal output impedance: 200 Ω
Minimum load impedance: 2 kΩ
Cable drive capacity: 100 m (328 ft)
Output balance principle: Impedance equalisation with Active Drive
Common mode rejection ratio (CMRR): > 60 dB
Power supply (for full power): P48 (phantom power)
Current consumption: 2.8 mA
Connection: XLR-3M. Pin 1: Shield, Pin 2: Signal + phase, Pin 3: - phase
Colour: Matt black
Weight: 160 g
Microphone diameter: 19 mm
Microphone length: 164 mm
Maximum output voltage, RMS: 8 V.
Polarity: + V on pin 2 for positive sound pressure
Temperature range: -40 ° C to 45 ° C (-40 ° F to 113 ° F)
Relative humidity (RH): Up to 90%
Inside the 2006 omnidirectional microphone with double diaphragm, two miniature capsules are fitted as standard, one facing the other. Arranged as a double diaphragm, they form a capsule unit. This combines the advantages of small capsules with the lower inherent noise of a larger diaphragm surface. These capsules offer a fast impulse response and a wide frequency bandwidth.
The capsules are combined with the preamplifiers of the outstanding d:dicate™ microphone series instead of the tiny FET preamplifiers of the miniature series. This gives the sound more airiness and precision.
Comparisons with its bigger brother, the iconic 4006 omnidirectional microphone, are inevitable. The connection between the two is clear to hear. The 2000 series performs as well as more exclusive microphones. It is a premium class microphone that redefines the term price-performance ratio.
In combination with the MMP-A preamplifier, this condenser microphone closes the gap between the exceptional sound quality of our d:dicate™ recording microphones and our well-known miniature microphones of the d:screet™ series.
Properties
| Characteristic: | Ball |
|---|---|
| Directional microphone: | No |
| Incl. Clamp: | Yes |
| Low cut: | No |
| Pad: | No |
| Stereo pair: | Yes |
| Type of construction: | Capacitor |
