DPA 6060-OC-U-F10
€678.30*
Prices incl. VAT plus shipping costs

Weitere Informationen finden sie hier.
In stock
Colour beige
Directional pattern: Omnidirectional
Operating principle: Pressure
Capsule type: Pre-polarised condenser
Frequency range: 20 Hz - 20 kHz
Frequency range +/-2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Nominal sensitivity +/-3 dB at 1 kHz: 20 mV / Pa; -34 dB re. 1 V / Pa
Equivalent noise level, A-weighted: Typ. 24 dB (A) re. 20 μPa (max. 26 dB (A))
S / N ratio(A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 70 dB (A)
Total harmonic distortion (THD): <1% up to 126 dB SPL peak
Dynamic range: Typ. 102 dB
Max. Sound pressure, peak before cut-off: 134 dB
Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply: min. 5 V to max. 10 V to DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power +/- 4 V for full power. Works from 12V
Weight: 0.29 oz incl. cable and MicroDot connector
Microphone head size (H x W x D): 3.4 / 14.4 mm
Capsule diameter: 3 mm
Cable length: 1.8 m

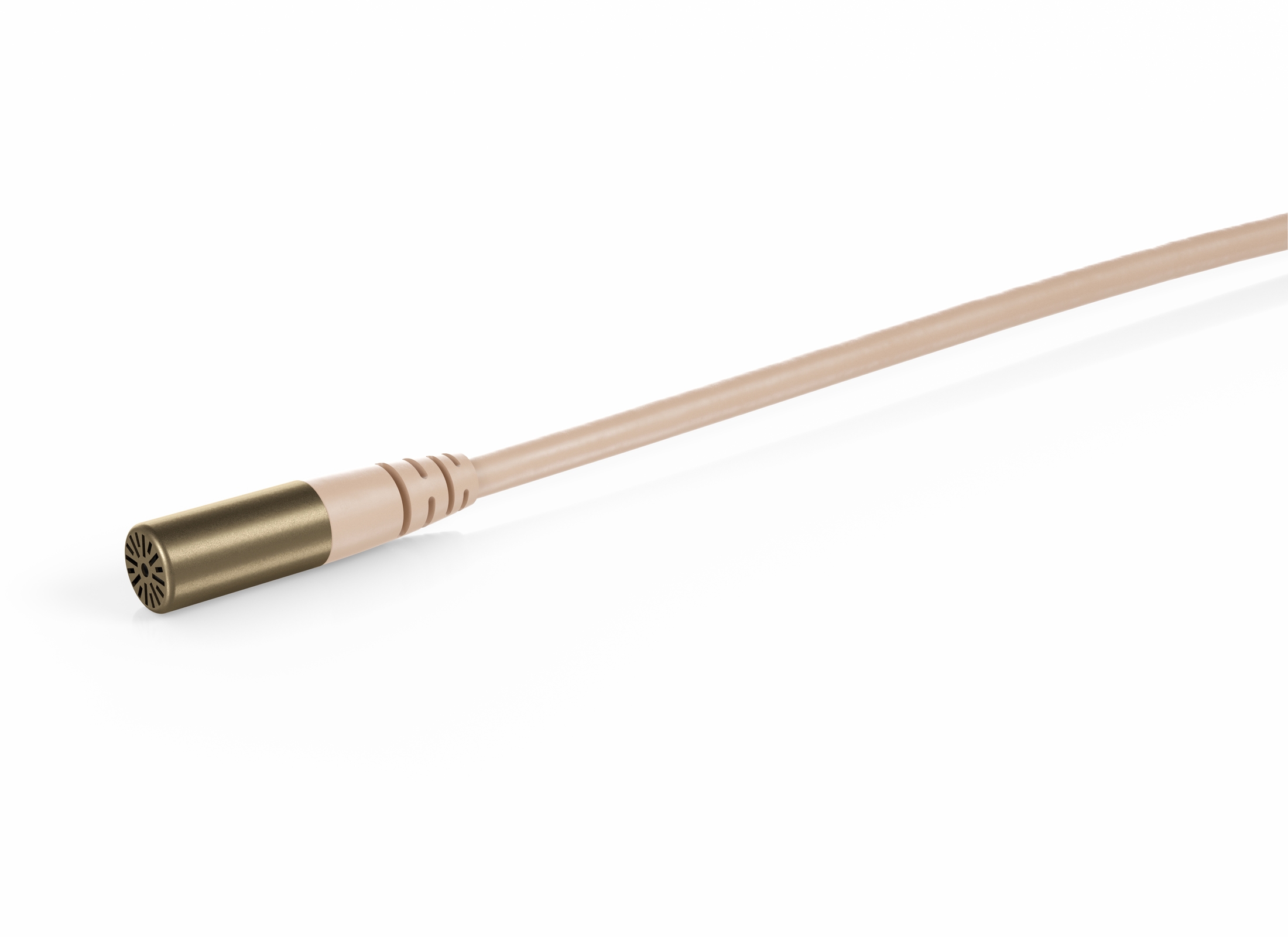

The new DPA Subminiature microphones are only 3 mm (0.12 inches) in size, but are as powerful as the larger, award-winning DPA microphones. They more than make up for their small size with their clarity, consistency and durability - three important qualities.
Precision engineering and minute optimisations of capsule technology have resulted in a subminiature microphone that outperforms all other microphones in its class (and beyond).
The tiny capsule has a cap that can be removed for cleaning. Then push it firmly back onto the microphone housing until you hear and feel a click.
The design of the cable, capsule and boom makes the microphone immune to noise-sensitive wireless devices. The microphone is usually supplied with a pocket transmitter. There is a wide range of adapters available to connect the various wireless transmitters. When used with an adapter, the connection is made via the DPA MicroDot connector. However, DPA also offers hard-wired connections that are compatible with the most common systems from manufacturers such as Shure and Sennheiser. All plugs are equipped with a robust strain relief.

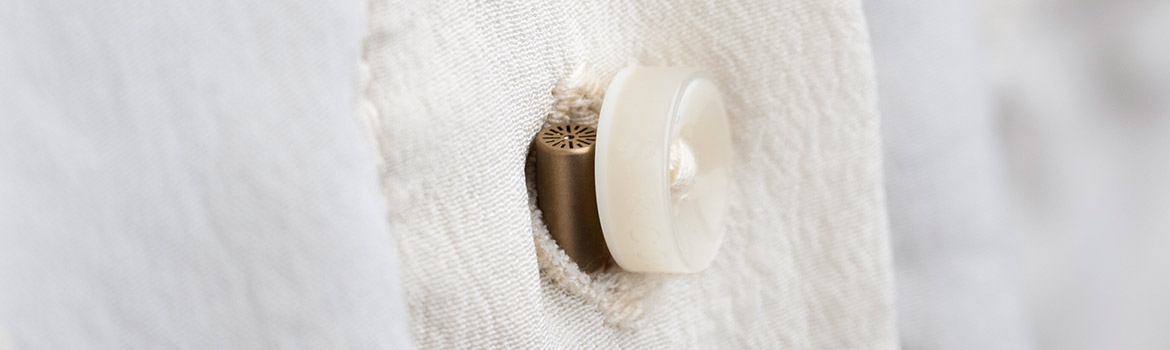

The swivelling connector allows it to be used as a lavalier microphone. The 360° plug can be attached in eight positions, optionally in 45° steps. This means it can be easily slipped between blouses and shirts (buttoned from the left and right), or even worn on T-shirts and at the neckline.
It is the only 3 mm (0.12 inch) microphone that offers the DPA sound quality you appreciate and love.
