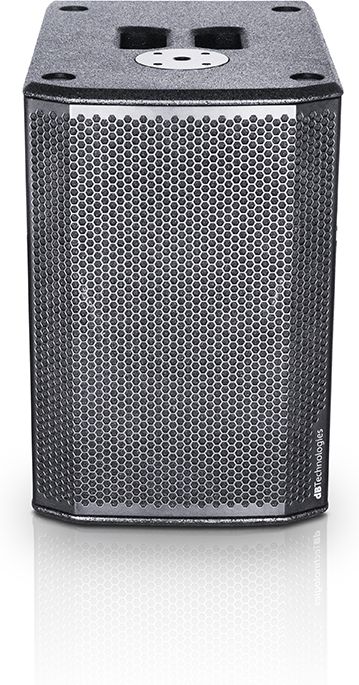

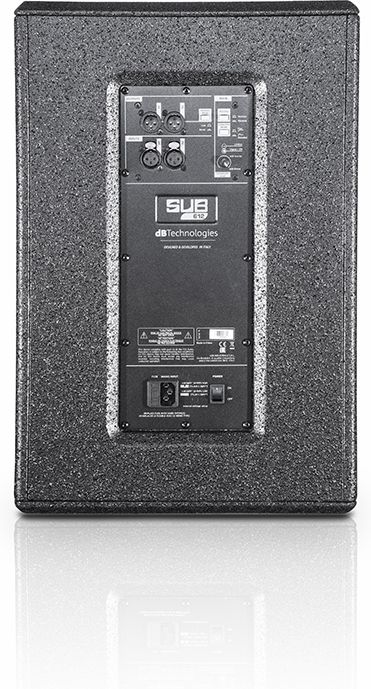

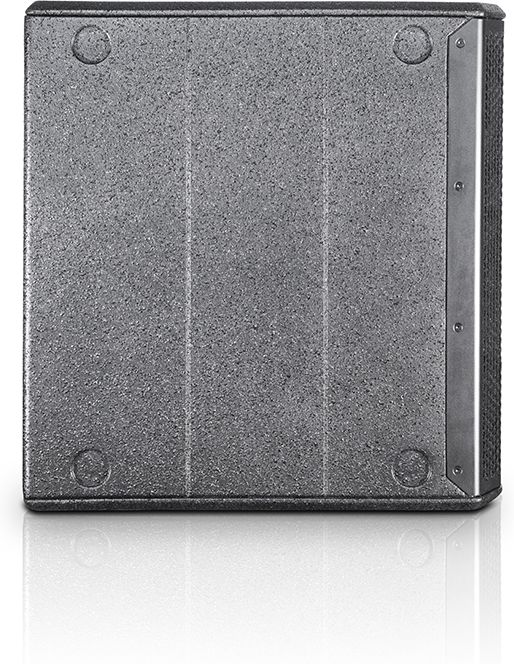

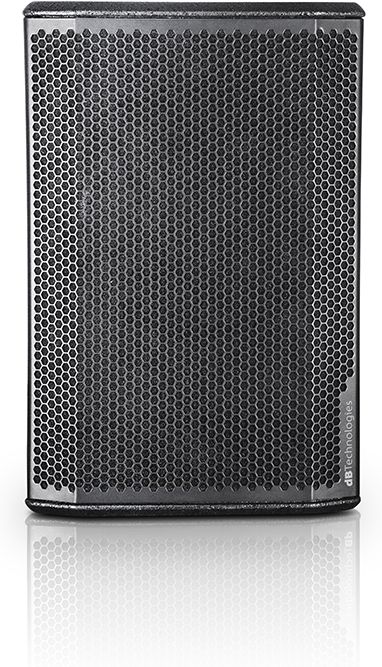

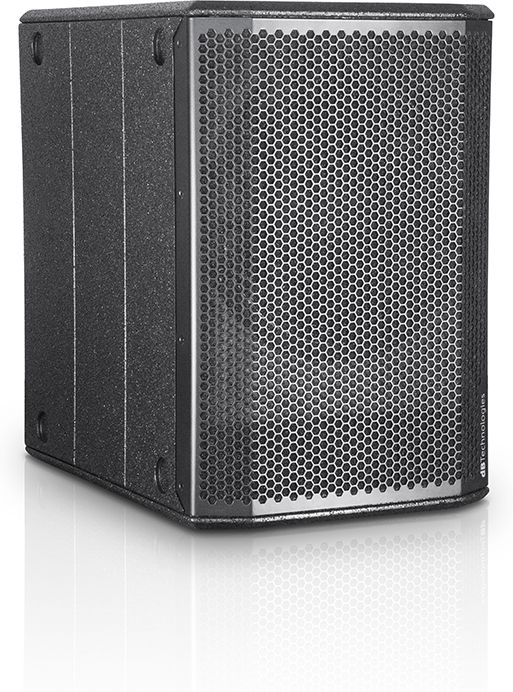

db Technologies Sub 612

Active subwoofer

1 x 12" bass speaker

Power: 600 W/RMS (Class D digital amplifier)

28/56 bit DSP

Frequency range: 46 - 123 Hz

Maximum level: 129 dB

2 x XLR inputs

2 x XLR outputs

Peak, thermal and RMS limiter

M20 stand flange

Dimensions: 360 x 550 x 525 mm

Weight: 19.8 kg

The SUB 612 is equipped with a powerful 12" woofer and a Class-D digital amplifier with 600 W RMS and SMPS power supply. It delivers 129dB Max SPL and a precise and impressive bass foundation despite the ultra-compact housing and a weight of only 19.8kg.

With the SUB 612, PA systems with one bass and two tops can be realised quickly and easily using the integrated stereo X-Over. The SUB 612 also offers the option of selecting the input signal mono or stereo, a phase reversal switch and the output link setting (X-over or true bypass), as well as a BOOST switch, which allows the low frequencies to be boosted.

The SUB 612 completes the SUB 600 series and is the ideal complement for smaller tops from the OPERA or B-Hype series, such as OPERA 10 or B-Hype 8 and 10. Of course, this small and powerful subwoofer can also be optimally combined with tops from other manufacturers.

Properties

Power in watts:	600 W (RMS)
Woofer in inches:	12
