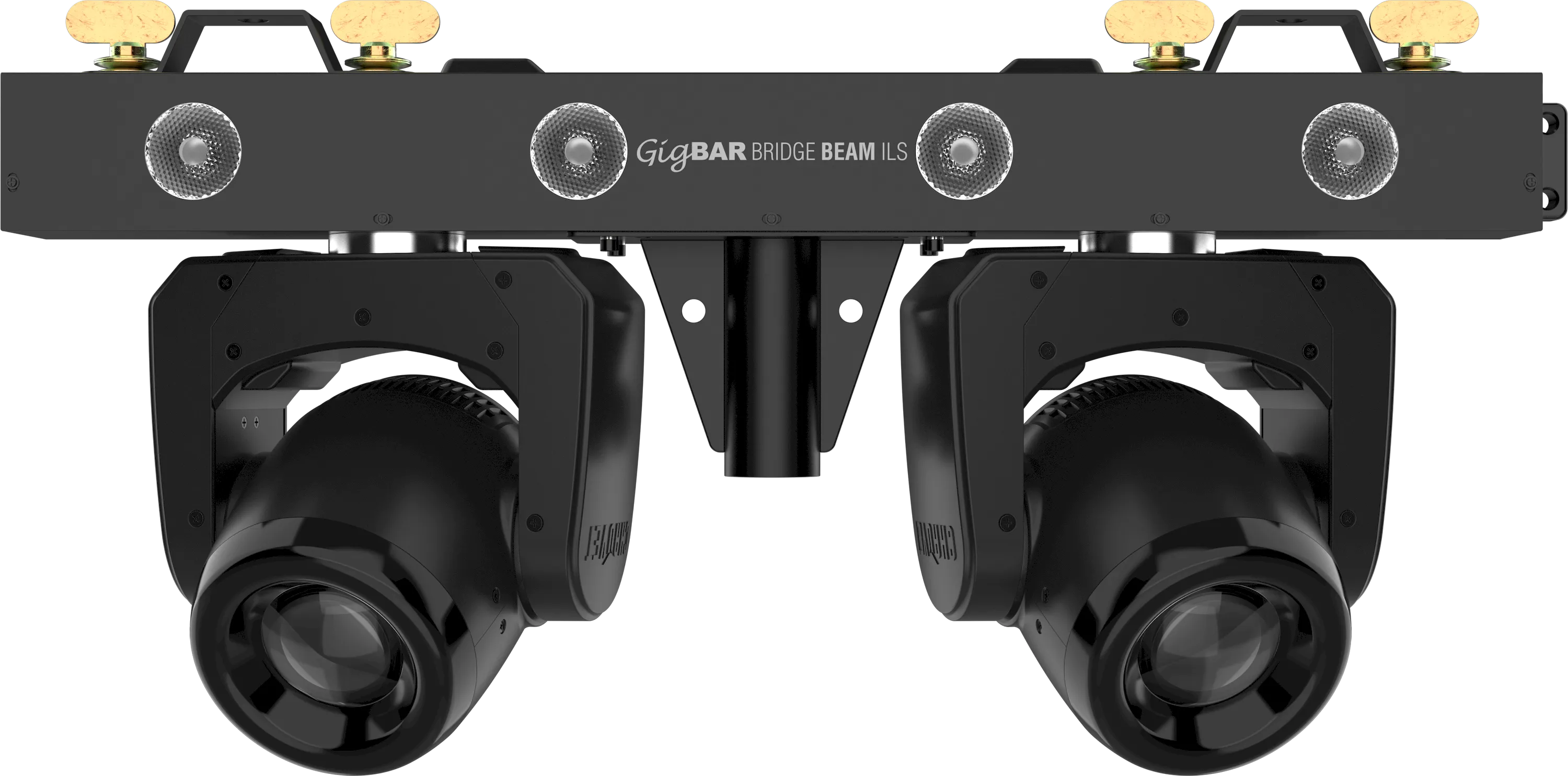

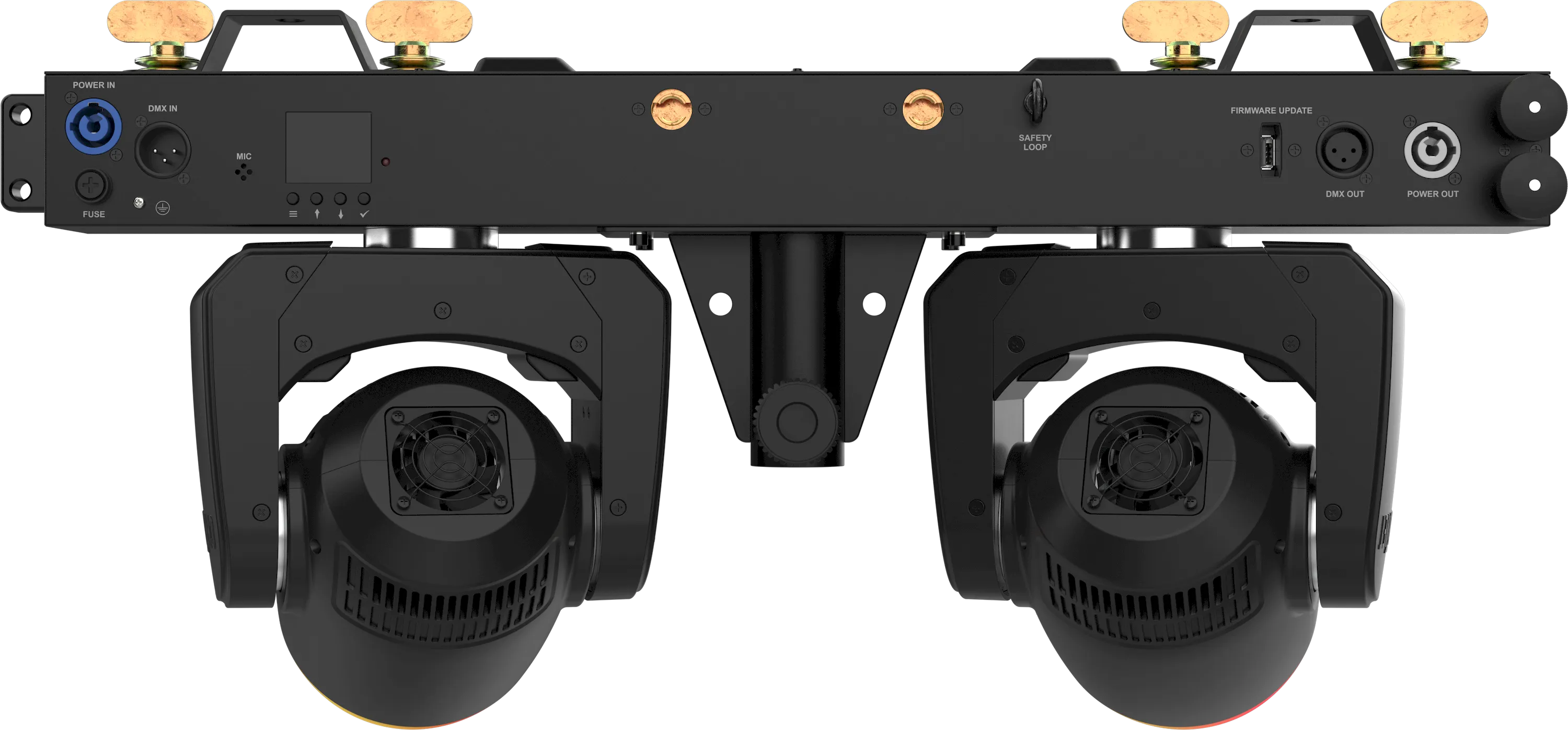

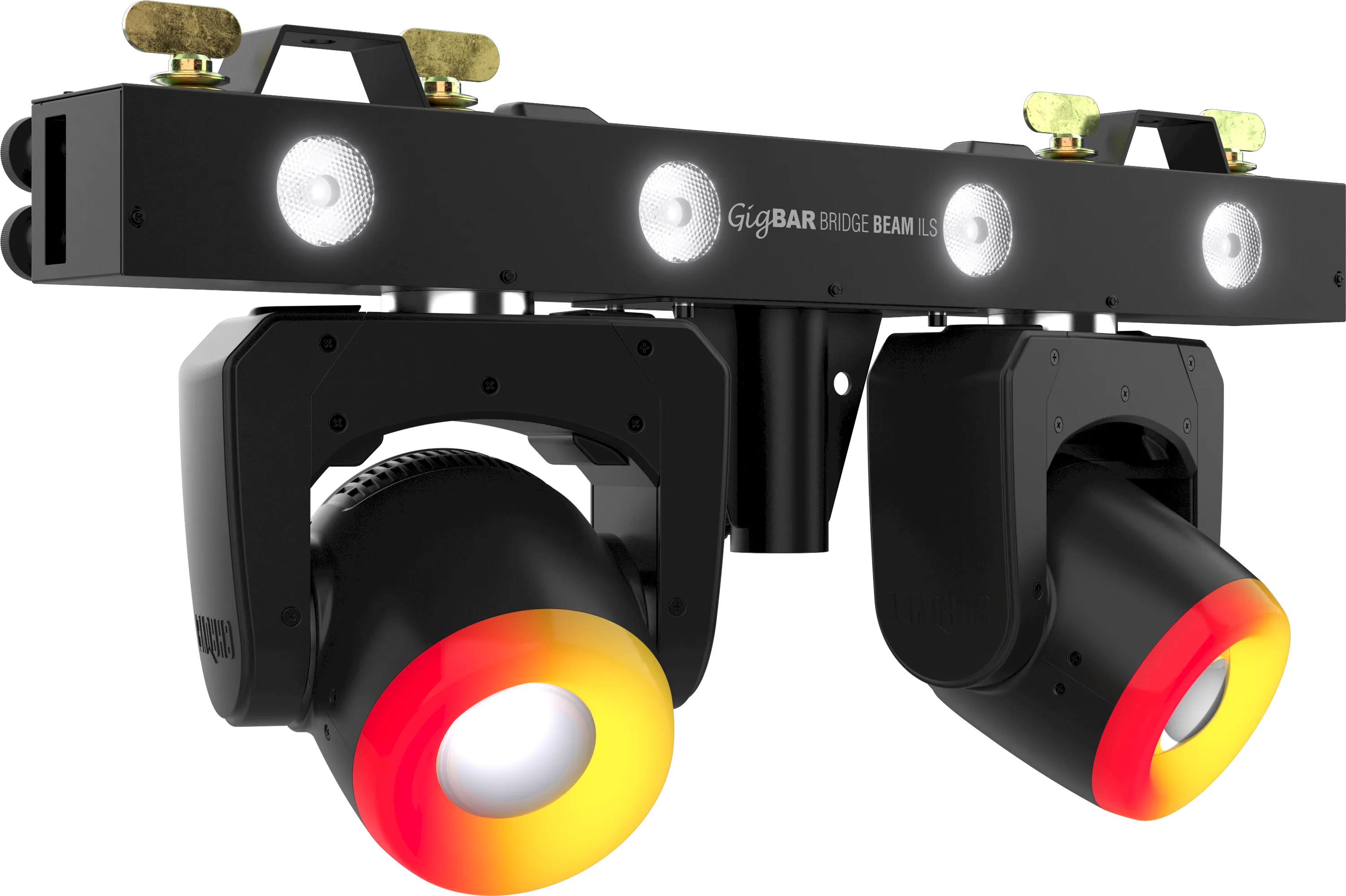

Chauvet DJ GigBar Bridge Beam ILS
€823.53*
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Delivery in 3–6 days
3-in-1 lighting system comprising moving heads, RGBW rings and wash lights
Quick and secure connection of multiple devices with the integrated locking system
Built-in DFI transceiver transmits and receives DMX or ILS signals wirelessly
Secure mounting on trusses or mobile stands using the removable bracket
Easy navigation and direct access to all functions via the colour LCD display
Powerful moving heads with separate colour and gobo wheels enable creative programming
Totem mode keeps the moving heads on the dance floor
Save time on laying cables and extension leads by connecting multiple devices together
ILS compatibility for use within the ILS ecosystem
DMX channels: 3, 24 or 60
DMX connectors: 3-pin XLR plug
Pan and tilt range: 540°/270°
Pan and tilt ranges: 180°, 360°, 540° pan / 90°, 180°, 270° tilt
Light source (moving heads): 2 LEDs (RGBW), total 80 W (2.8 A), service life 50,000 hours
Light source (Wash): 4 LEDs (RGBAW+UV), total 40 W (2.6 A), service life 50,000 hours
Light source (LED ring): 48 LEDs (RGBW), total 10 W, service life 50,000 hours
Strobe frequency: 0 to 20 Hz
PWM frequency: 1200 Hz
Beam angle (moving head): 5°
Beam angle (Wash): 20°
Field angle (wash): 37°
Operating frequency: 2.4 GHz
Illuminance (moving head): 24,670 lux at 2 m (per head)
Illuminance (Wash): 525 lux at 2 m (per section)
Max. range (D-Fi): 183 m
Ansprechpartner:
Chauvet Germany
Bruno-Bürgel-Str. 11
28759 Bremen
E-Mail: desales@chauvetlighting.de
Web: https://chauvetlighting.com/
Safety and warning notices :
This product contains electronic components and/or is powered by electricity.
Please use it strictly in accordance with the user manual and with suitable accessories.
⚠️ Protect the device from moisture, extreme temperatures and mechanical damage.
⚡ Check cables, power adapters and connections regularly for visible damage.
ℹ️ Please refer to the enclosed user manual for further safety instructions.
ℹ️ If you have any questions regarding safe use, please do not hesitate to contact our customer service team.
