Article-No 0116018

Cameo SB8.3 - 8-channel DMX splitter / booster

€160.00*

Prices incl. VAT plus shipping costs

Finanzieren Sie bequem mit Consors Finanz.
Weitere Informationen finden sie hier.

Cheaper elsewhere?

In stock

Cameo SB8.3 - 8-channel DMX splitter / booster

Professional 8-way DMX splitter / booster

1U 19" housing for rack installation

DMX INPUT: 1x XLR (3-pin) front, 1x XLR (3-pin) rear

DMX THRU: 1x XLR (3-pin) front, 1x XLR (3-pin) rear

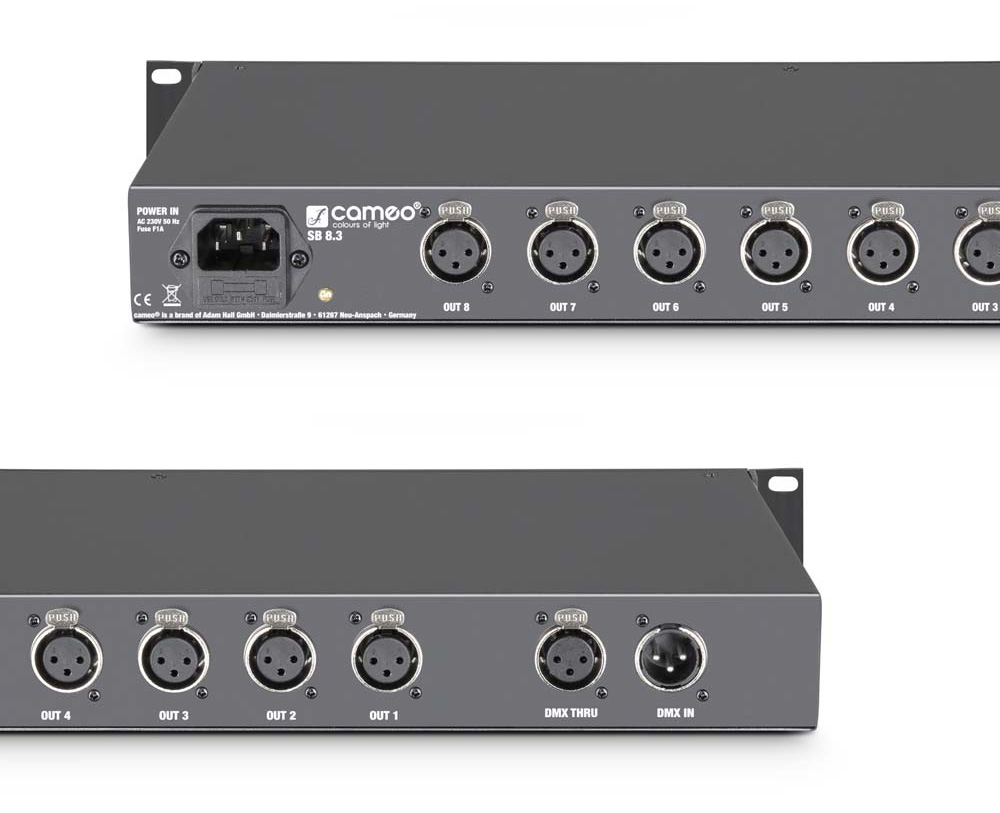

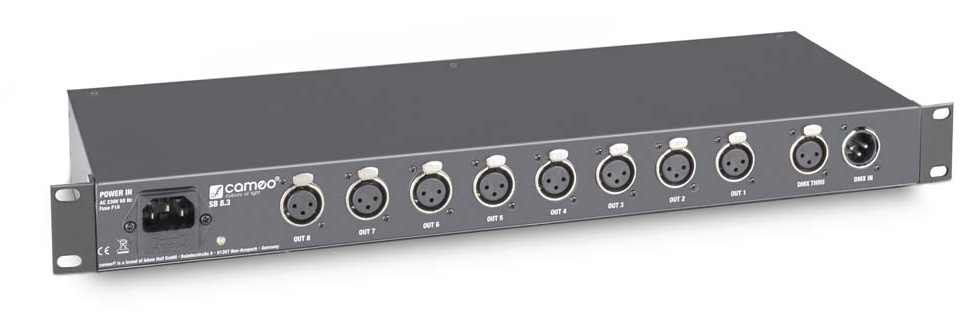

8 electrically isolated XLR 3-pin outputs on the rear panel

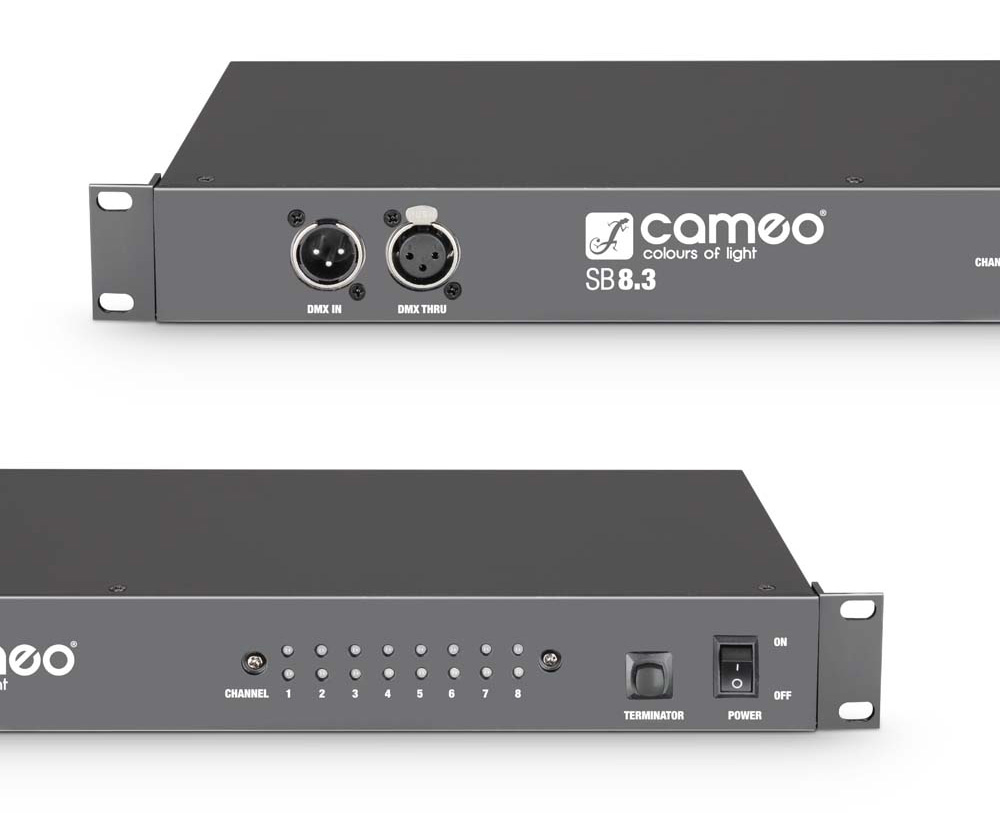

DMX status display per channel

Power status display

Switchable 120 Ohm terminating resistor for the DMX THRU output socket

Rack brackets can be mounted on the front and rear.

The Cameo CLSB83 is the professional solution for configuring DMX networks. The splitter and booster in 19" format amplifies the DMX input signal and distributes it to 8 electrically isolated outputs. It is connected directly to the DMX console or DMX devices. The input and the THRU socket for looping the signal through are duplicated on the front and rear of the CLSB83 and connected in parallel. Bright LEDs on the front panel indicate the DMX and power status of the channels, while the outputs are located on the rear panel. A 120 Ohm terminating resistor that can be switched to the DMX THRU output and the mains switch complete the equipment; the IEC cable is included in the scope of delivery. The rack brackets can be mounted on the rear of the device for easy access to all connections and 180° rotated installation. The Cameo DMX splitter and booster is also available in a 5-pole version (art. no. CLSB85).
