Alutruss QUADLOCK 6082-750 4-point traverse
€189.05
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Weitere Informationen finden sie hier.
Delivery in 3-6 days
4-point truss system
Solid EN-AW 6082 alloy for high load capacity
High-quality aluminium tubes with 50 mm diameter
Easy assembly
Low weight

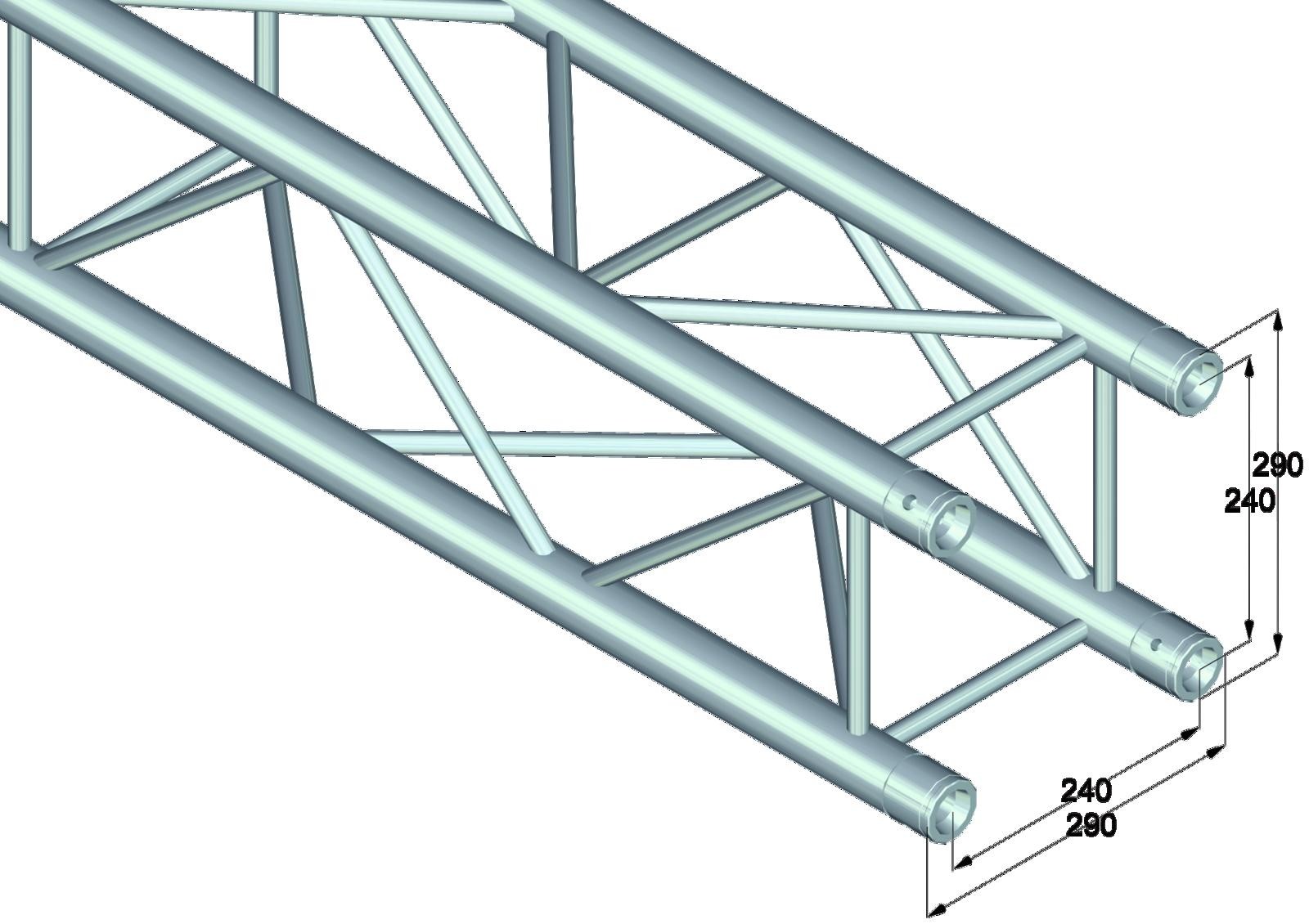

Distance hole centre - hole centre: 240 mm
For trade fair and shop fitting, discotheque and theatre installations
Incl. 1 x connector set
Belt tube: 50 mm
TÜV South
Technical details:
Colour: Aluminium-coloured
Belt tube: 50 x 2 mm
Welding material: AlMg 5
Welding process: TIG pulse
Tube material: AIMgSi1 T6
Brace diameter x thickness: 16 x 2 mm
Length: 750 mm
Width: 290 mm
Height: 290 mm
Weight: 5.50 kg

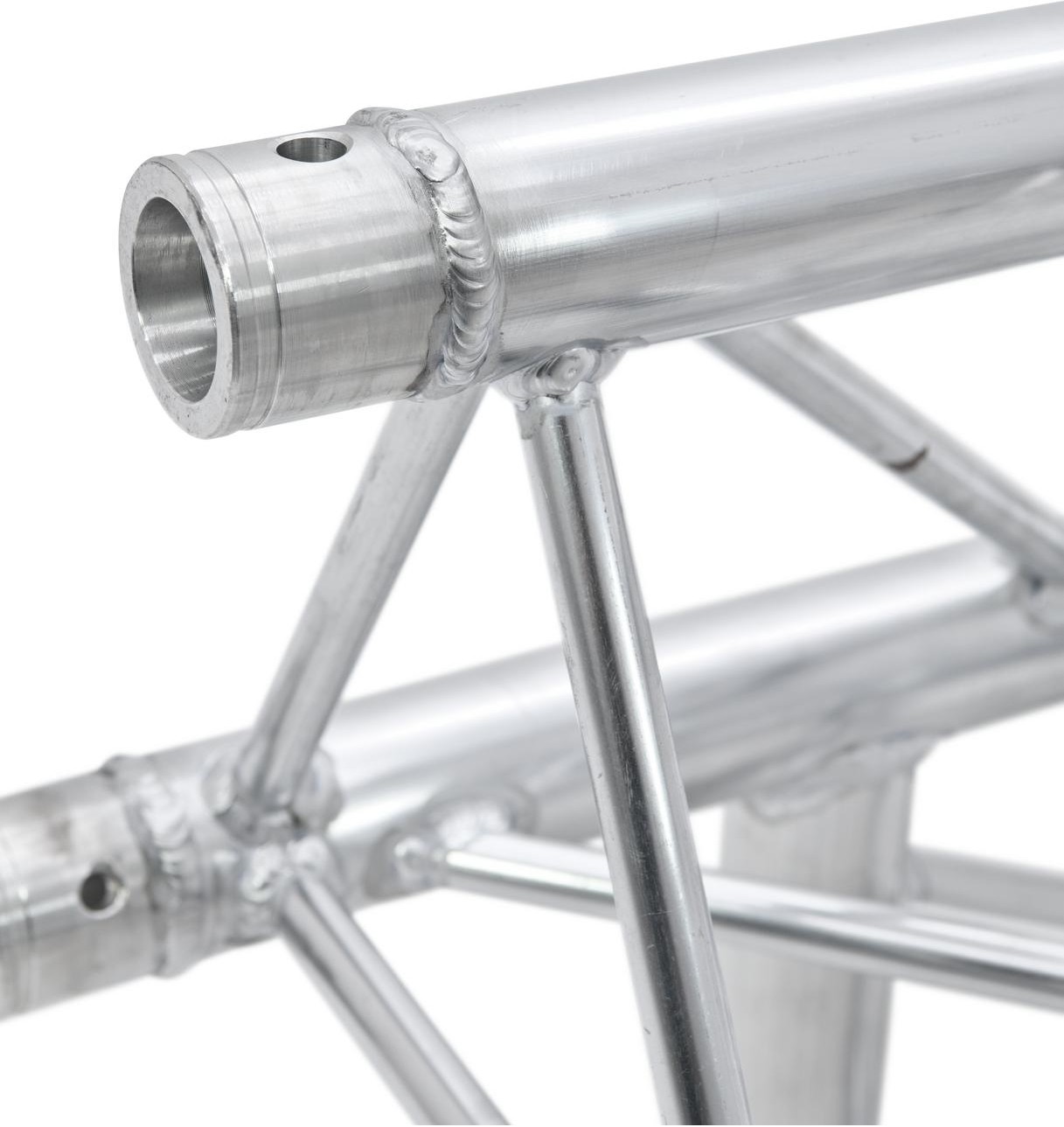

QUADLOCK 6082 4-point truss systemThe QUADLOCK 6082 is a 4-point truss system made of aluminium, which is connected via four conical connectors, pins and split pins. The QUADLOCK 6082 uses the solid alloy EN-AW 6082 T6 (AlMgSi1 T6) for high load-bearing capacity, and the advantage of conical connectors is that they are friction-locked and form-fit with the chord tube, thus guaranteeing maximum load-bearing capacity. The Quick-Lock system enables quick, efficient and visually appealing assembly with frequent assembly and disassembly, and the four belt tubes are made of 50 mm aluminium tube with a wall thickness of 2 mm, giving this system an excellent weight/load capacity ratio. The struts have a diameter of 16 mm with a wall thickness of 2 mm and leave plenty of clearance for attaching couplers, hooks and clamps.290 mm external dimensions make this a stable truss system for higher loads and longer durability. This truss system is primarily designed for intensive use in stage construction, trade fair construction and event technology, but also for permanent installations in discotheques and theatres, and its polished surface makes this universal system a real eye-catcher. Thanks to its extensive range of standard system lengths, corners and accessories, this system is extremely versatile and offers endless design possibilities. The load table as a basis for calculation can be downloaded from the Internet before purchase! Please note: This truss system must never be combined with other systems!
