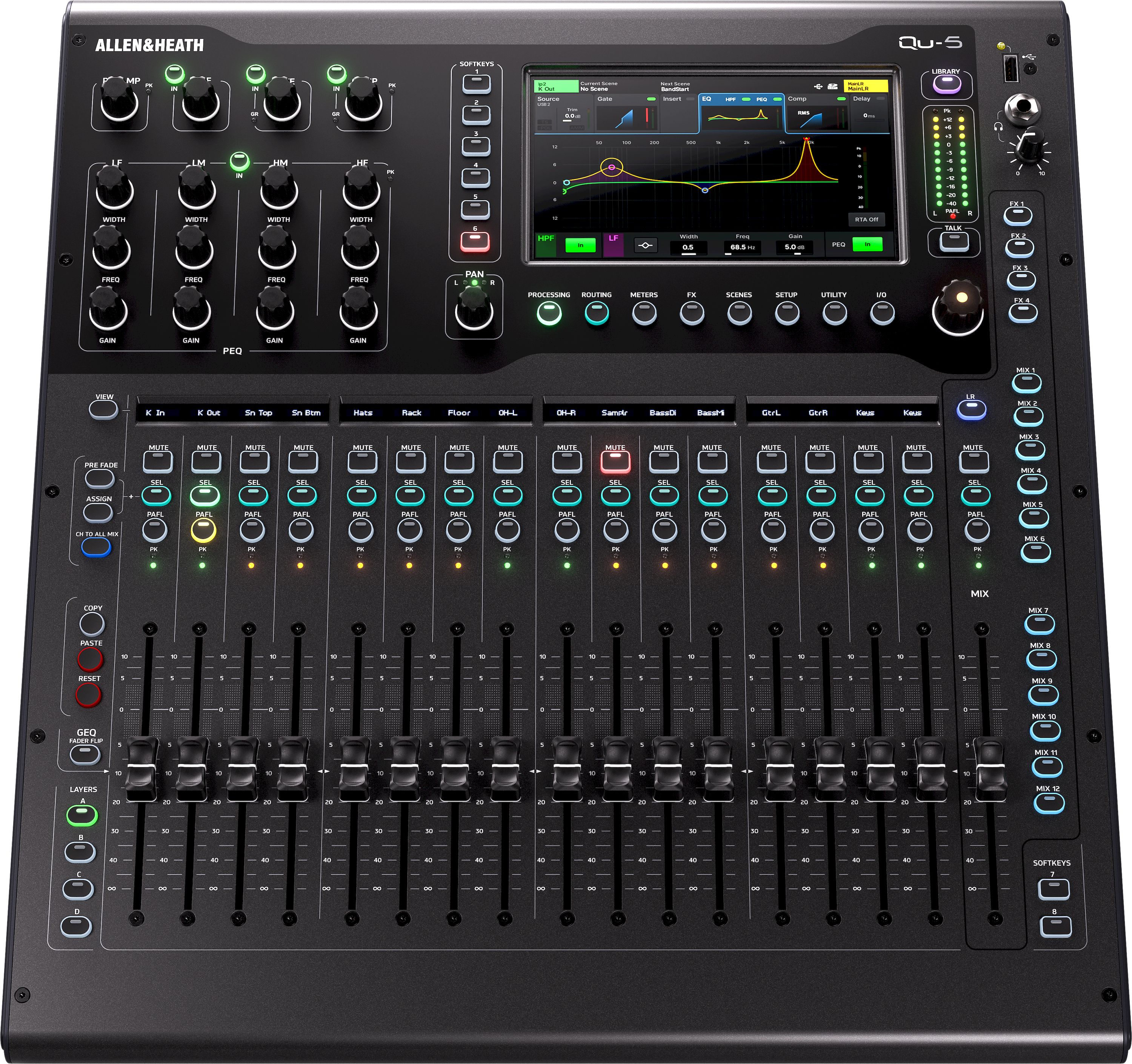

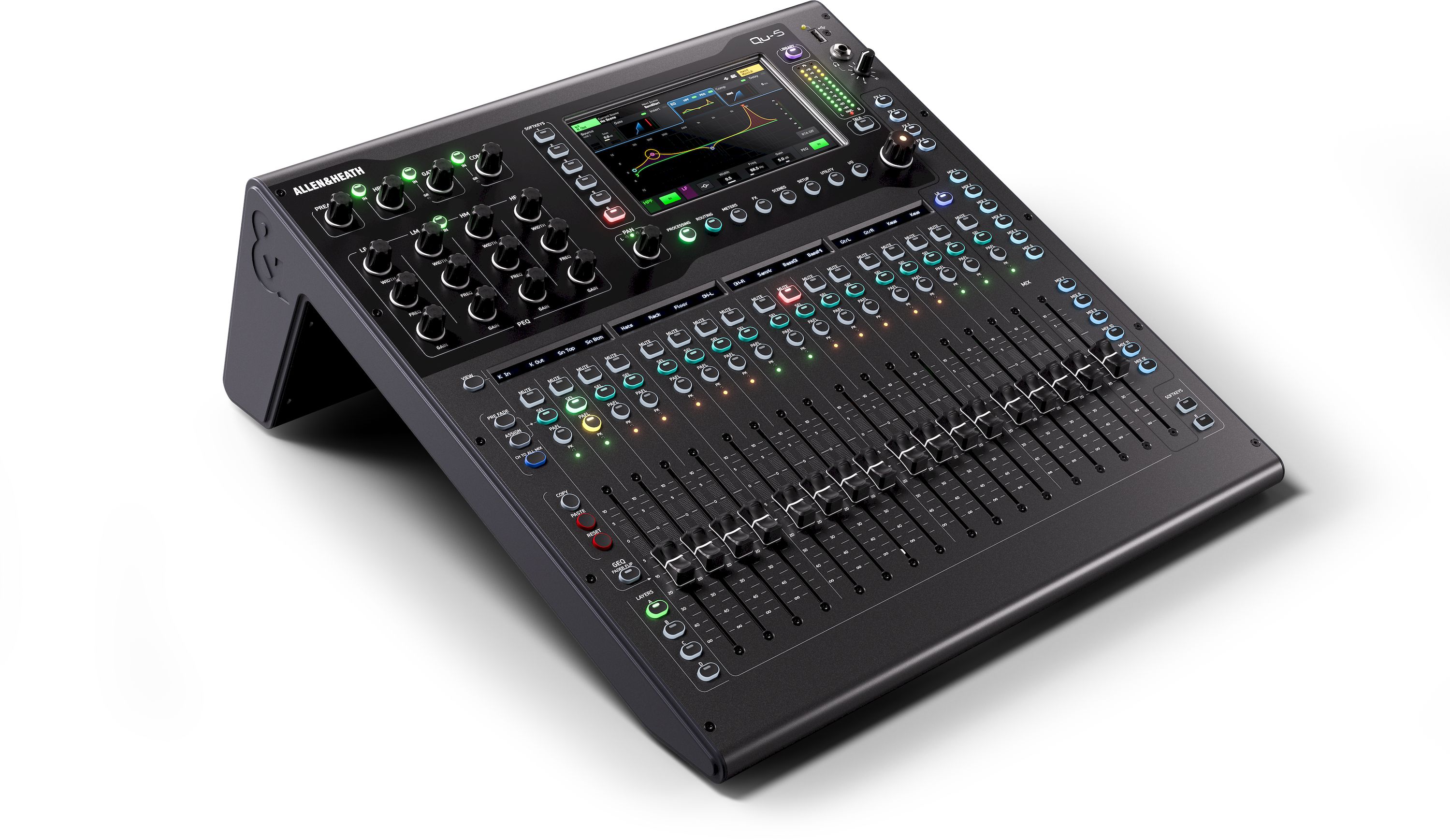

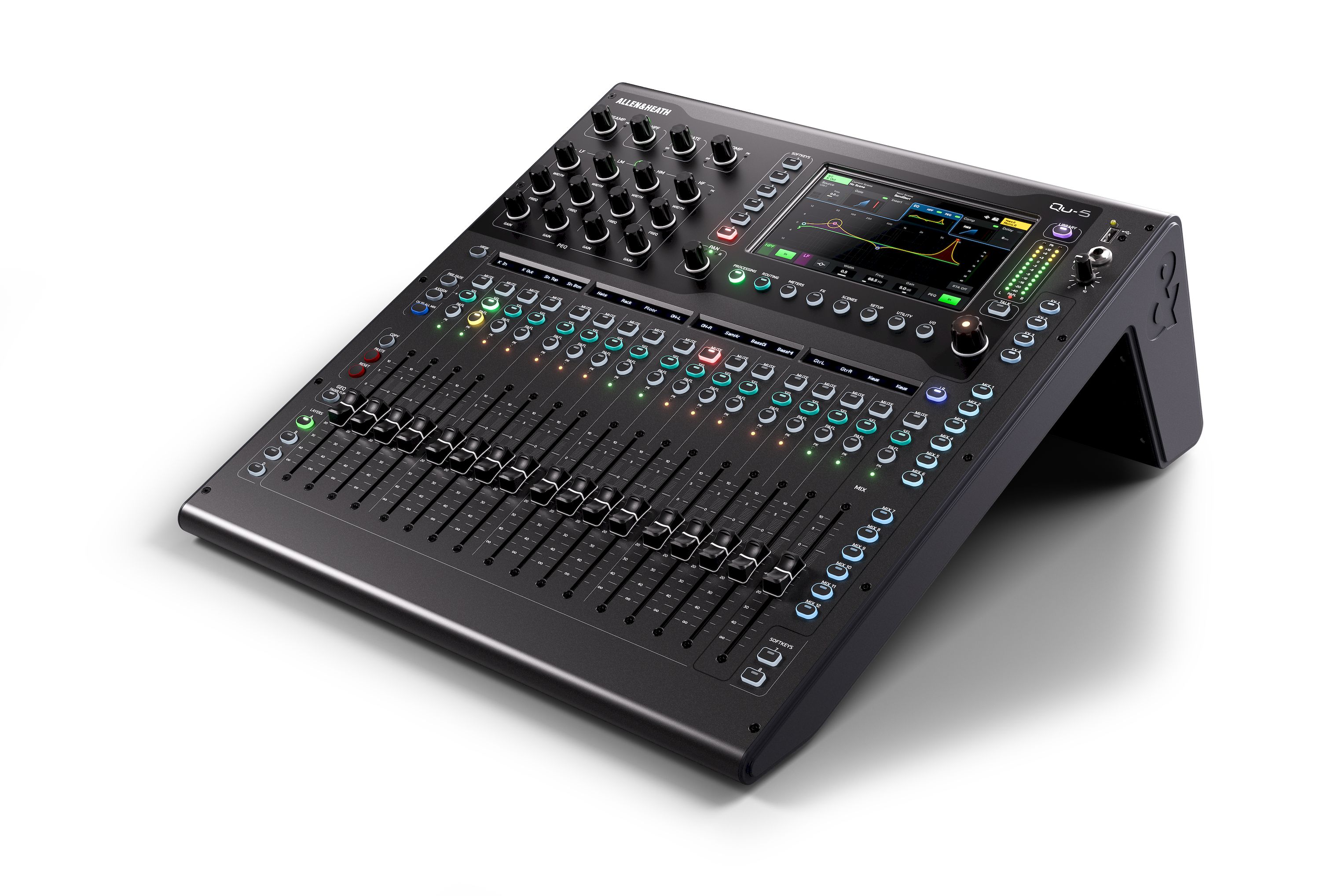

Allen & Heath QU-5
€2,049.00
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Weitere Informationen finden sie hier.
Delivery on request
96kHz FPGA audio core
36x input channels (32x mono/linkable, 2x stereo)
Stereo main output (LR)
12x mix busses (6x mono/linkable aux, 6x stereo aux/group)
4x matrix outputs (mono/linkable)

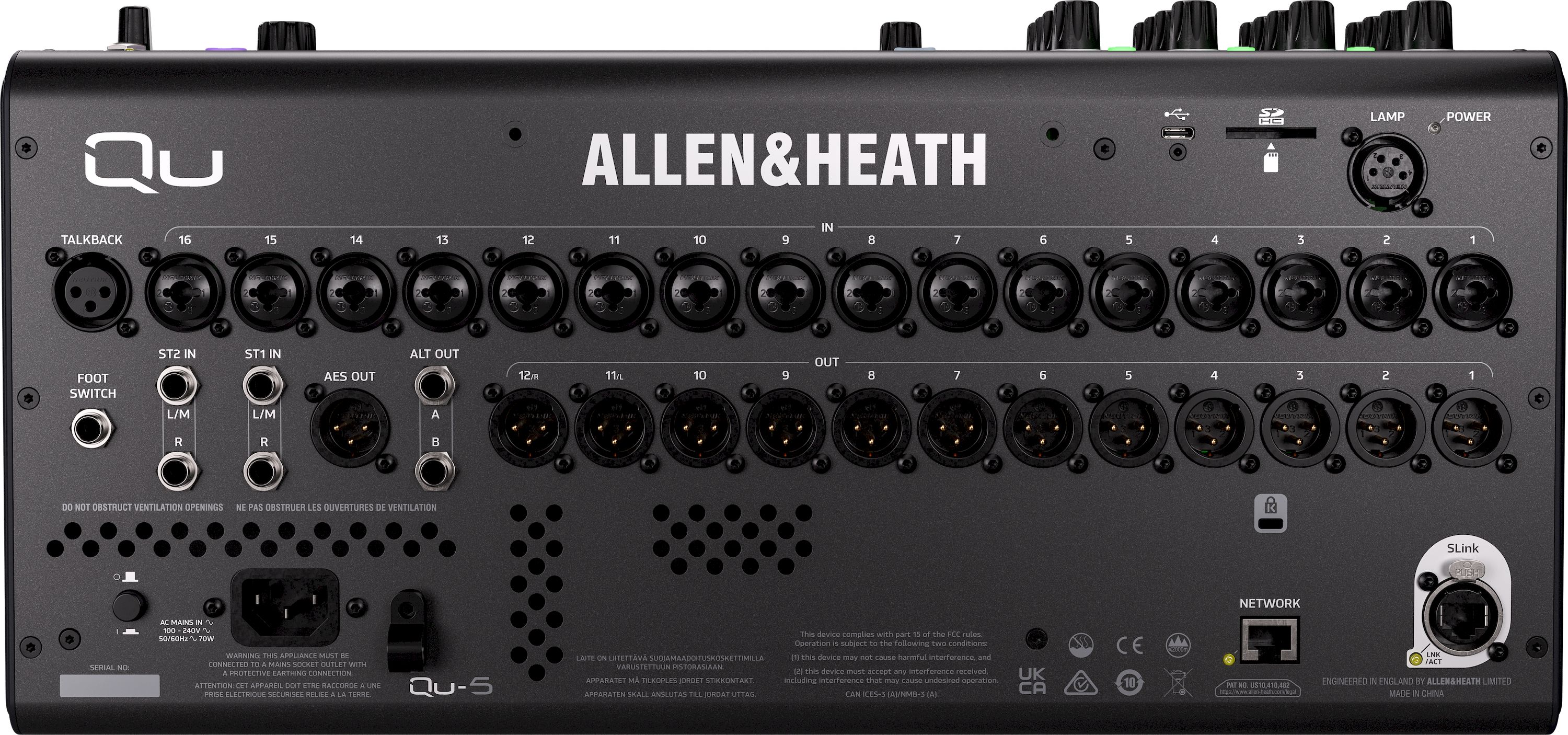

16x XLR/jack combo inputs (mic/line)
2x stereo line inputs (2x TRS each)
1x talkback input
12x XLR outputs
2x TRS outputs
1x AES3 stereo digital output
128x128 SLink port for I/O expansion and system connection
Stereo headphone output
6 multi-FX engines with dedicated return channels
7" capacitive touchscreen
17 motorised 100mm faders
4 channel strip layers
8 freely assignable SoftKeys
USB-A for stereo recording/playback and data
USB-C audio interface (32x32 multi-channel)
SD card slot for multi-channel recording/playback
12V lamp connection
Configurable footswitch connection (single/dual)
Configurable LED level meters per channel
IEC power connection with worldwide power supply
RJ45 network connection
Remote control via free app (Windows, macOS, iOS, Android)
Optional 19" rackmount kit available
Dimensions (WxHxD): 440 x 476 x 211 mm
Weight: 12.6 kg
Based on the popular Qu-16 form factor, the Qu-5 adds Allen & Heath's powerful XCVI processing and the new FX engines from Everything I/O connectivity. There is also a larger capacitive touchscreen, channel strip displays, customisable layers and additional soft keys.
In addition, the Qu-5D variant has an integrated 16x16 48/96 kHz Dante port for interoperability with other Dante-enabled devices.
Both the Qu-5 and Qu-5D are rack-mountable, 32-channel, 96 kHz digital audio mixers that combine powerful audio processing and professional features with easy operation and convenient control.
Properties
| Digital inputs: | Netzwerk, USB |
|---|---|
| Digital outputs: | Netzwerk, USB, AES |
| Inferface function: | Yes |
| Line Ins: | 20 |
| Microphone inputs: | 16 |
| Rackable: | optional |
