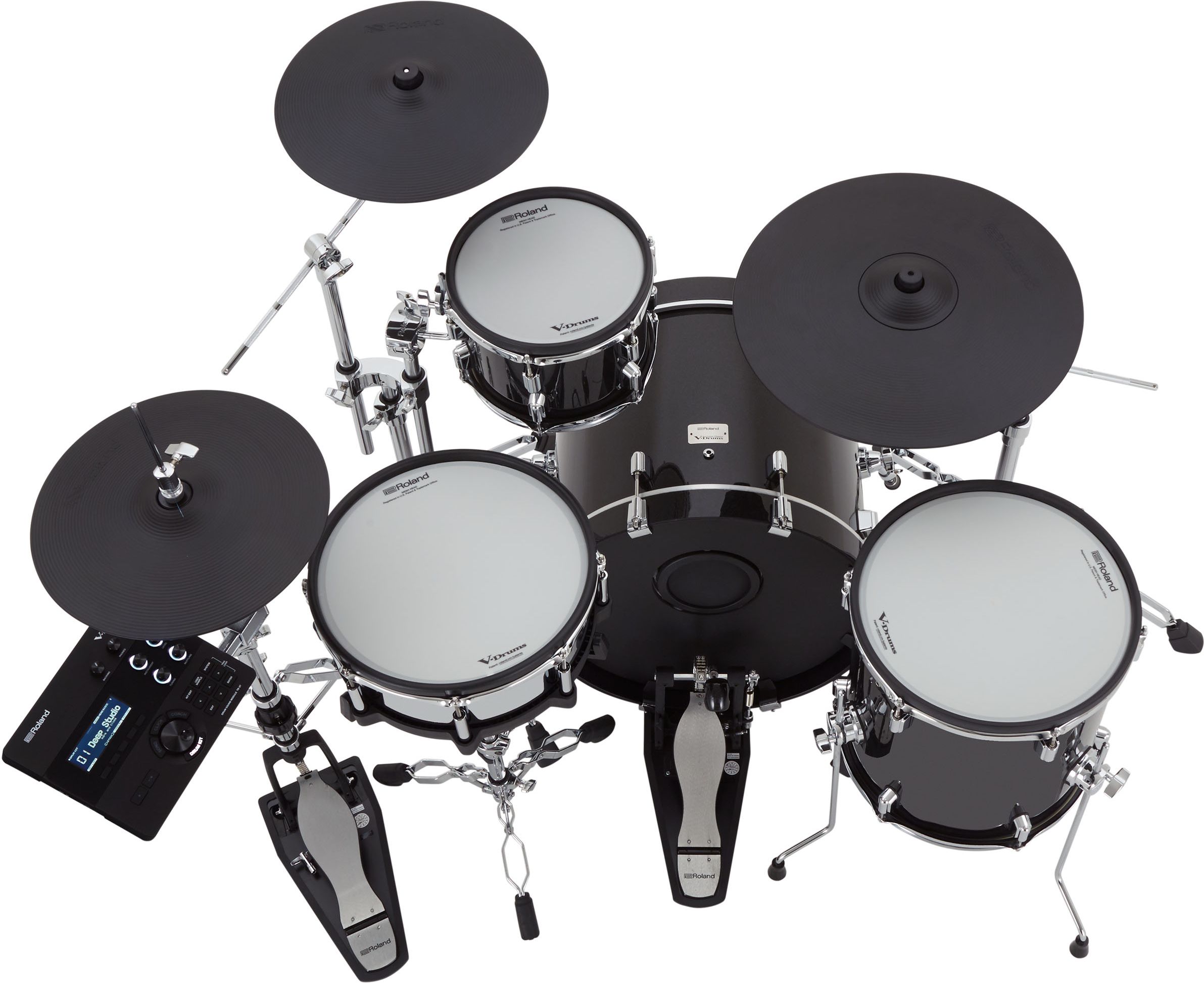

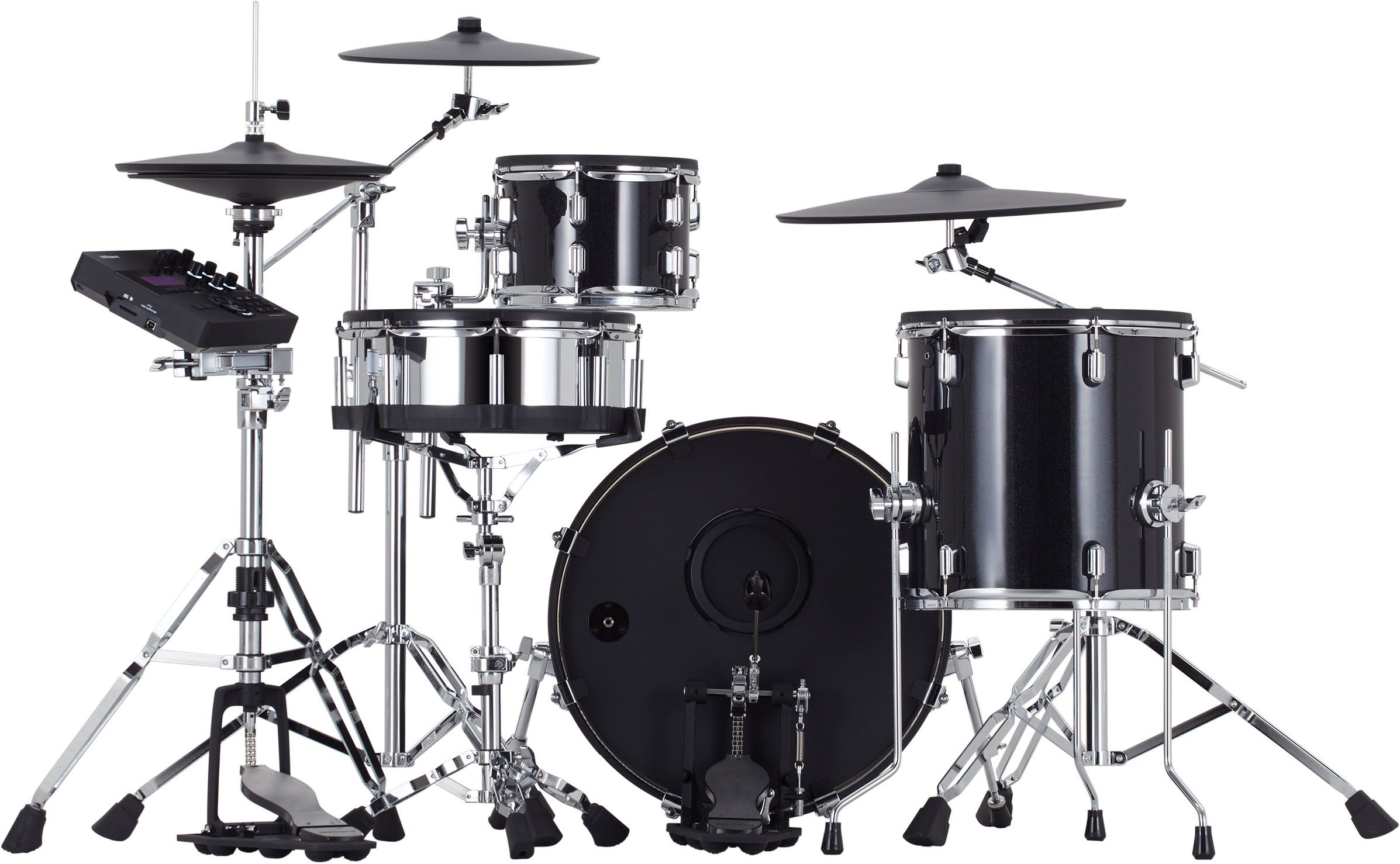

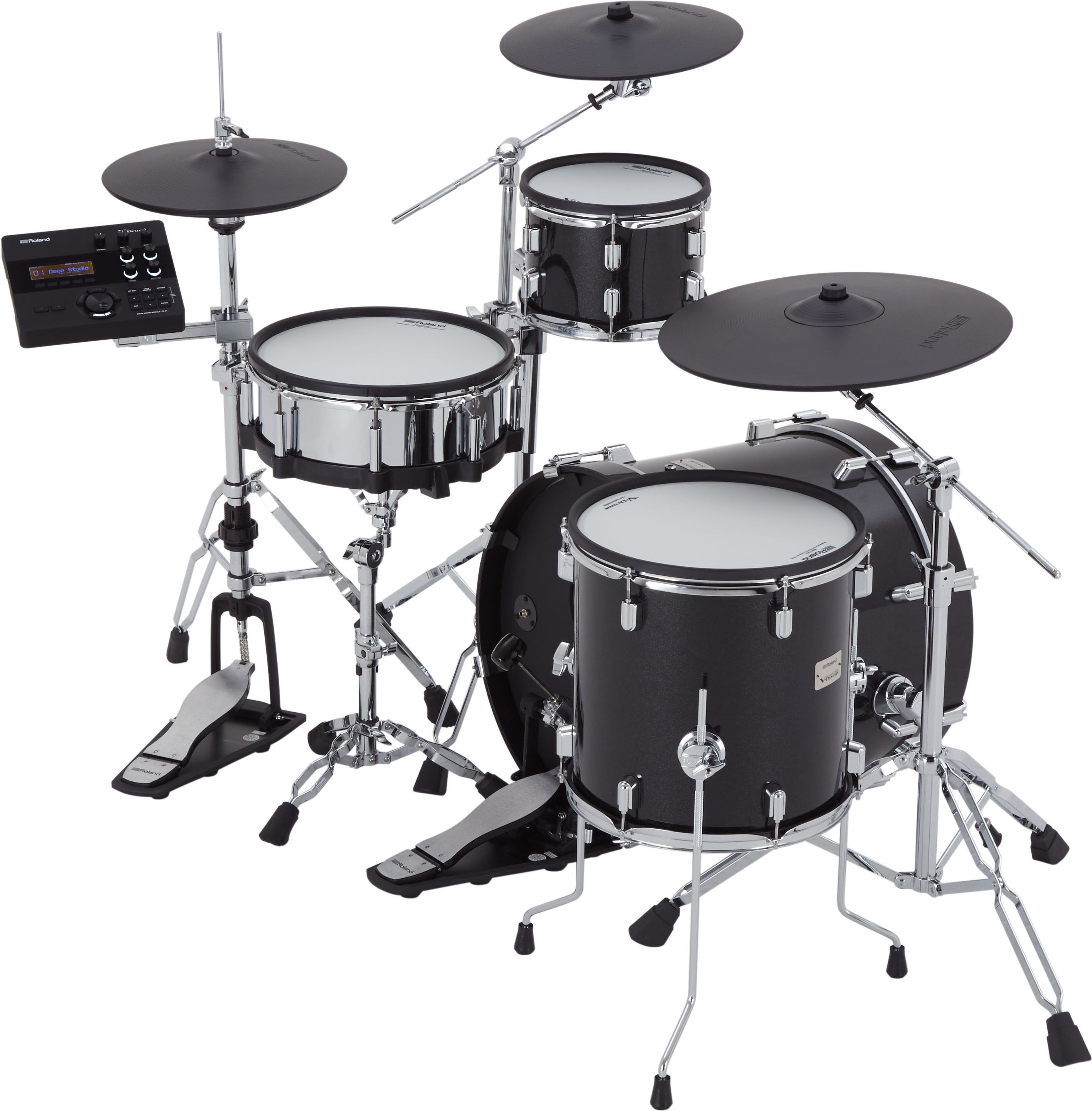

Roland VAD504 V-Drum Set

V-Drums Acoustic Design

with Roland TD-27 Drum Module 2.0

Full-size drum pads

Wooden bass drum and tom

Finish: Midnight Sparkle

Stainless steel snare drum

770 sounds

75 preset kits

45 user kits

Prismatic Sound Modelling technology from the flagship Roland TD-50 creates sound variations to simulate a natural, acoustic drum kit

Bluetooth 4.2 transceiver for wireless streaming of music directly from smartphone or MIDI to compatible devices

Sample Reverb (IR) allows you to call up realistic room reverbs

up to 500 WAV samples can be imported (max. length 24 minutes mono)

Quick Record

Roland Digital Pads are equipped with versatile sensors

which reproduce a very high dynamic range and almost all playing styles

all drum pads with double-layer mesh heads (3-layer snare drum)

Crash and ride cymbals with thinner profiles ensure a realistic playing feel and vibration behaviour

SD card slot (SDHC compatible)

Multipin plug (Trigger In) for the pads supplied

4x 6.3 mm jack trigger inputs for additional pads (one already assigned)

3x digital trigger inputs for Roland digital drum pads with multi sensor technology

2x 6.3 mm jack main outputs

2x 6.3 mm jack Direct Out

6.3 mm jack headphone output

6.3 mm stereo jack Mix-In

6.3 mm jack foot switch input

MIDI In & Out

USB type B connection for USB audio and USB MIDI

Set configuration:

20" x 16" bass drum (KD-200)

14" x 5" Digital Mesh Head Snare Drum (PD-140DS)

10" x 7" two-zone tom (PDA-100)

14" x 13" two-zone stand tom (PDA-140F)

14" Digital Hi-Hat (VH-14D)

14" two-zone crash pad (CY-14C-T)

18" Digital Ride Cymbal Pad (CY-18DR)

Hardware set consisting of:

Cymbal/Tom combination stand

Boom cymbal stand

Multiclamp for attaching the sound module

Note: Foot machine, snare stand, hi-hat stand and seat not included in the scope of delivery
